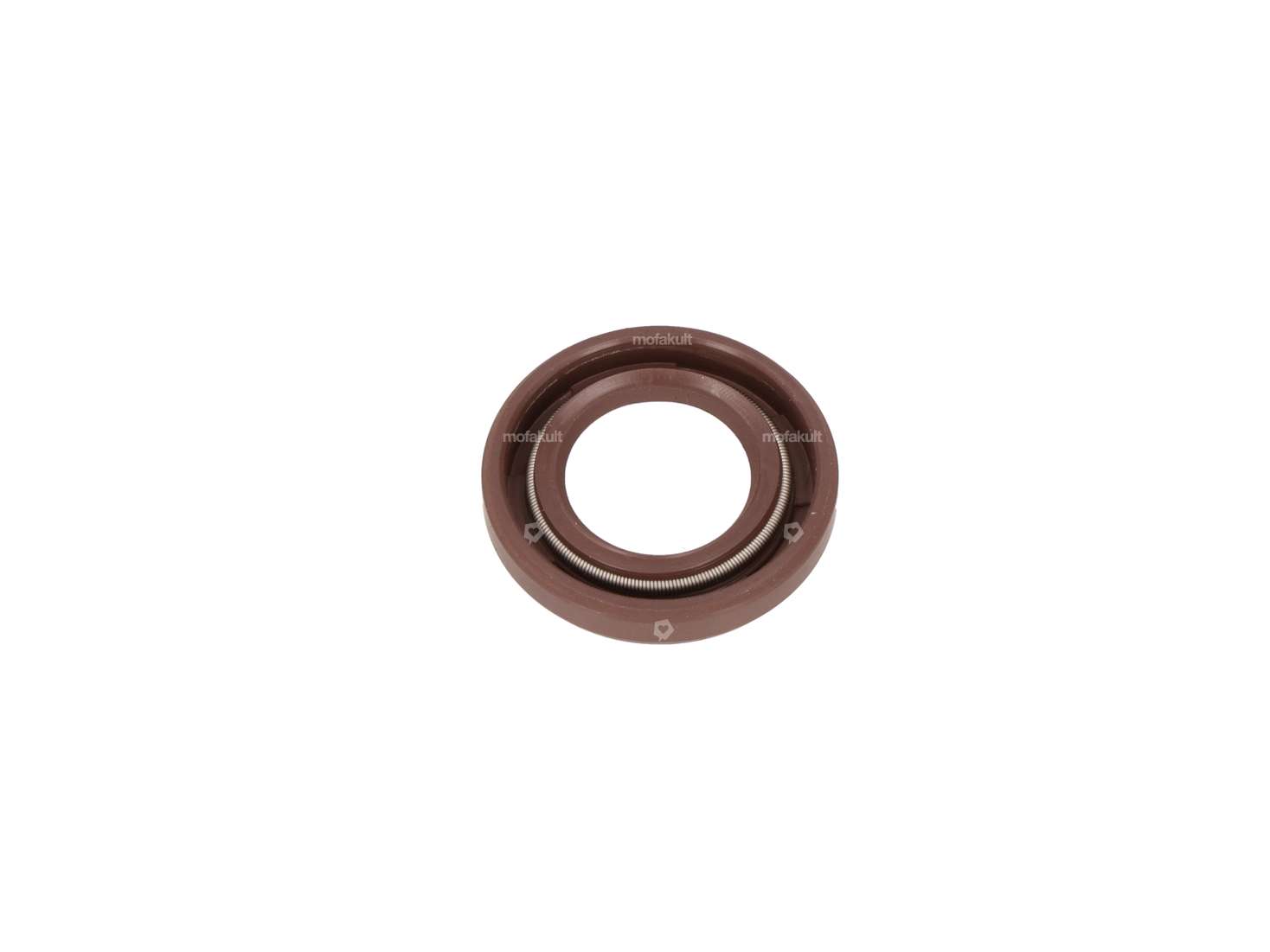

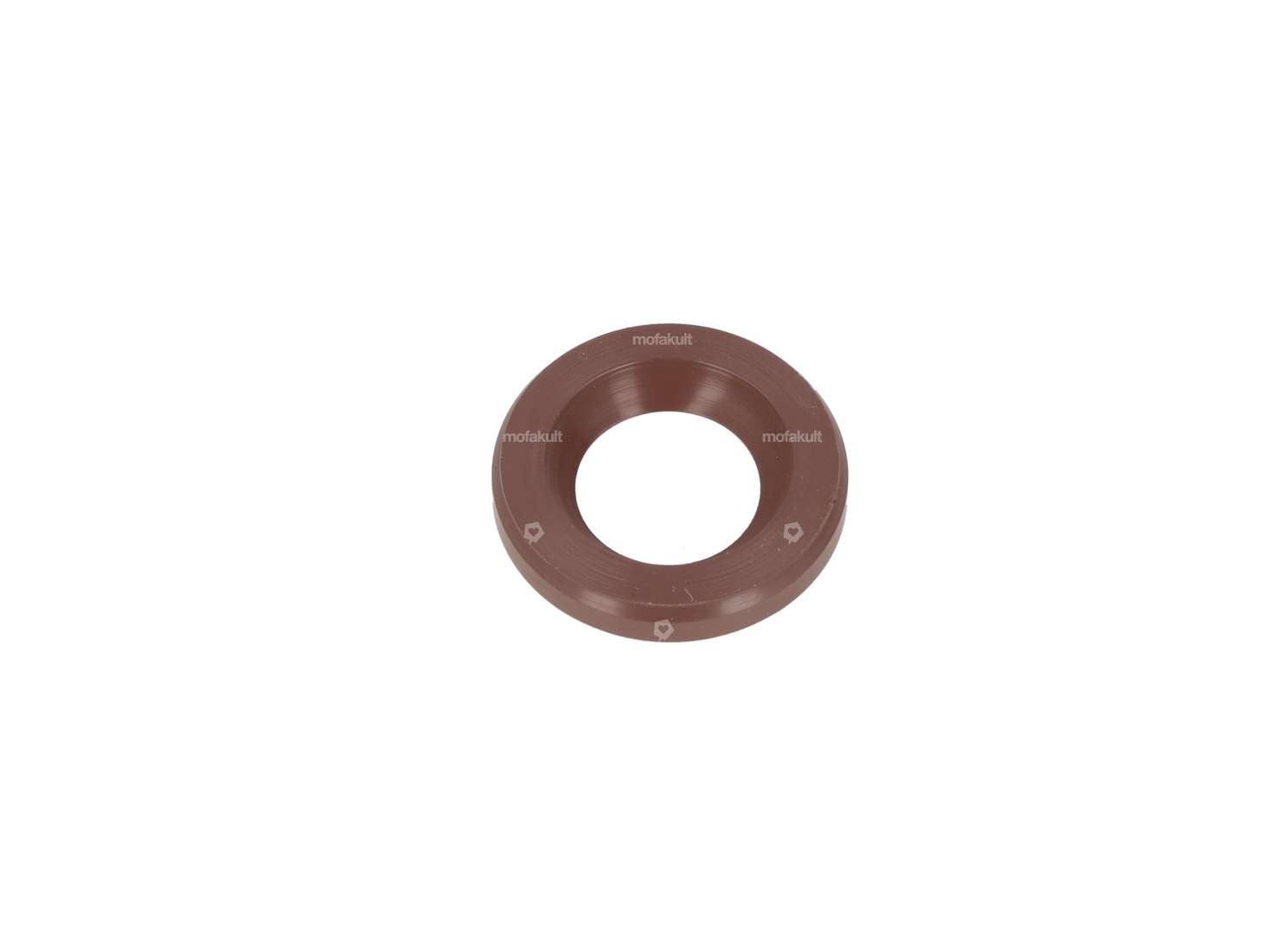

Oil seal FPM 13/22/4 A

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

Oil seal 13/22/4 A NBR gearbox Vario original | Piaggio Ciao, SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Material: NBR · Ø inside: 13 mm · Ø outside: 22 mm · Width: 4 mm · Piaggio OEM number: 240222

Malossi SAE 75W-90 gear oil "RACING" 250 ml

Manufacturer: Malossi · Oil type: GL4 · Oil type: fully synthetic · Viscosity (SAE): 75W-90 · Contents: 250 ml · Gearbox type: Automatic machine · Gearbox type: Mono · Gearbox type: Vario · Area of application: Gearbox lubrication without clutch

Oil seal FPM 15/30/5.5 AS

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM / FKM (colloquially known as Viton) · Width: 5.5 mm · Ø inside: 15 mm · Ø outside: 30 mm

Oil seal FPM 15/24/5 AS

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: FPM / FKM (colloquially known as Viton) · Width: 5 mm · Ø inside: 15 mm · Ø outside: 24 mm

Corteco oil seal NBR 20/30/5 A gearbox | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 20 mm · Manufacturer: Corteco · Place of use: Gear hub · Material: NBR · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm · Piaggio OEM number: 131511

Karcoma fuel tap M12x1 vertical (with union nut) plastic connection

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Thread type: MF12x1 (fine pitch thread) · Spare tube shape: straight · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Karcoma fuel tap M16x1 vertical (with union nut) plastic connection | Puch X30 Velux

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Thread type: MF16x1 (fine pitch thread) · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 50 mm · Mounting type: Union nut

M8 sealing ring Fiber

Place of use: Carburetor · Place of use: Motor housing · Surface: raw · Material: Fiber · Ø inside: 8.3 mm · Thickness: 1 mm · Ø outside: 13.7 mm · Area of application: Standard · Puch OEM number: 26482

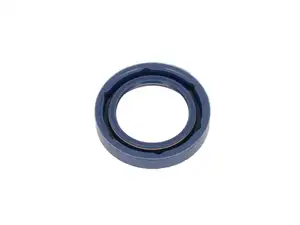

Oil seal NBR 20/30/5 A Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 20 mm · Manufacturer: Piaggio · Material: NBR · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 8.3 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Fiber · Place of use: Motor housing · Ø outside: 13.7 mm · Piaggio OEM number: 000397, 485703

O-ring shift fork (Velogang) original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 6 mm · Manufacturer: Piaggio · Cord thickness: 1.7 mm · Ø outside: 9.4 mm

swiing® revival spacer set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Surface: Hardened · Surface: blank / oiled · Material: Steel · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

Corteco oil seal NBR 20/30/5 A gearbox | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 20 mm · Manufacturer: Corteco · Place of use: Gear hub · Material: NBR · Width: 5 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 30 mm · Piaggio OEM number: 131511

Corteco oil seal NBR 17/25/4 A Gearbox Mono | Piaggio Ciao, SI, Bravo, Boxer

Shaft seal type: A - With rubberized outer part / one sealing lip. · Ø inside: 17 mm · Manufacturer: Corteco · Place of use: Gearbox cover · Material: NBR · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C · Ø outside: 25 mm · Piaggio OEM number: 114469

Oil seal FPM 13/22/4 A Gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Housing cover · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Material: FPM / FKM (colloquially known as Viton) · Ø inside: 13 mm · Ø outside: 22 mm · Width: 4 mm · Piaggio OEM number: 240222
