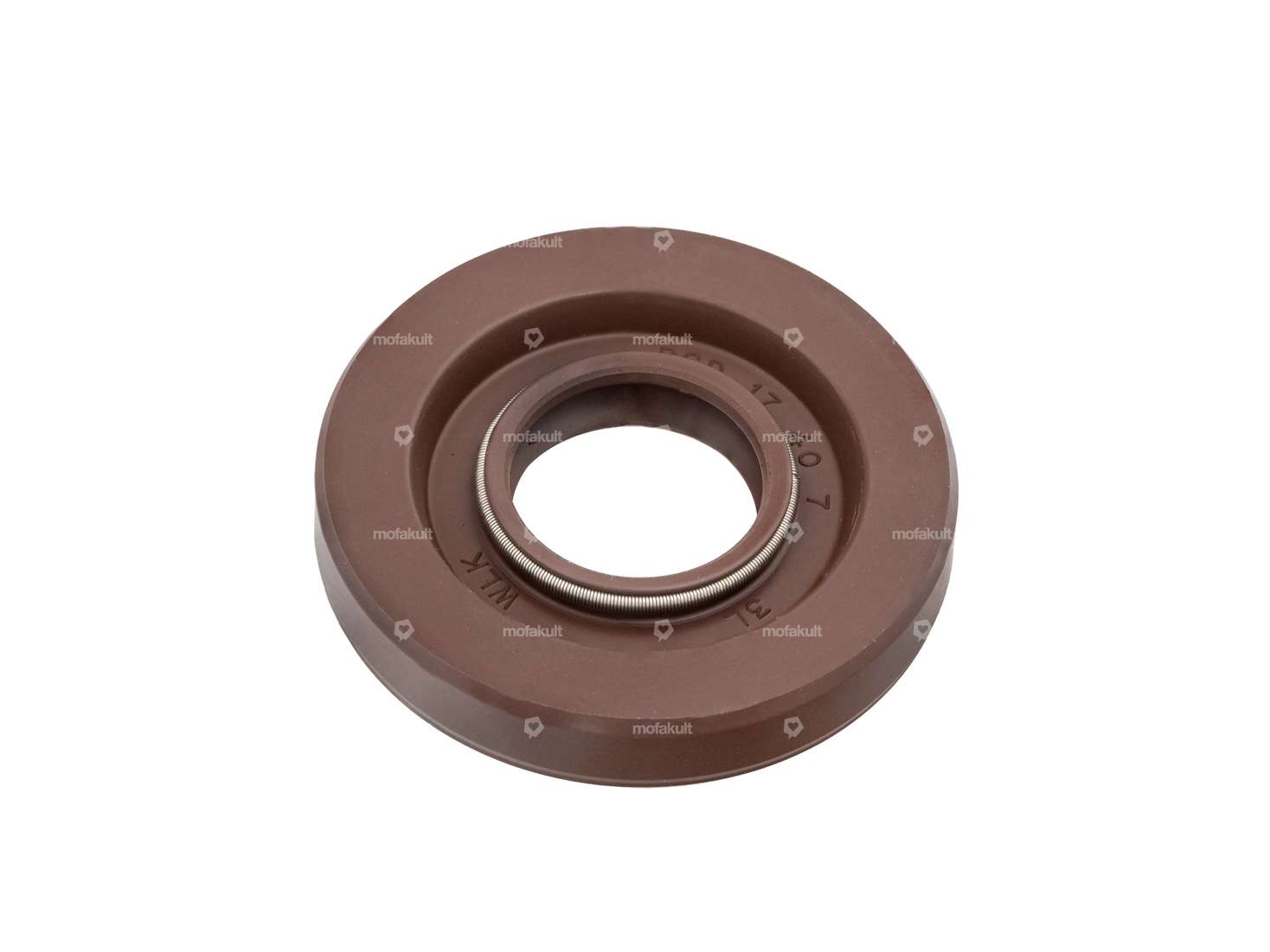

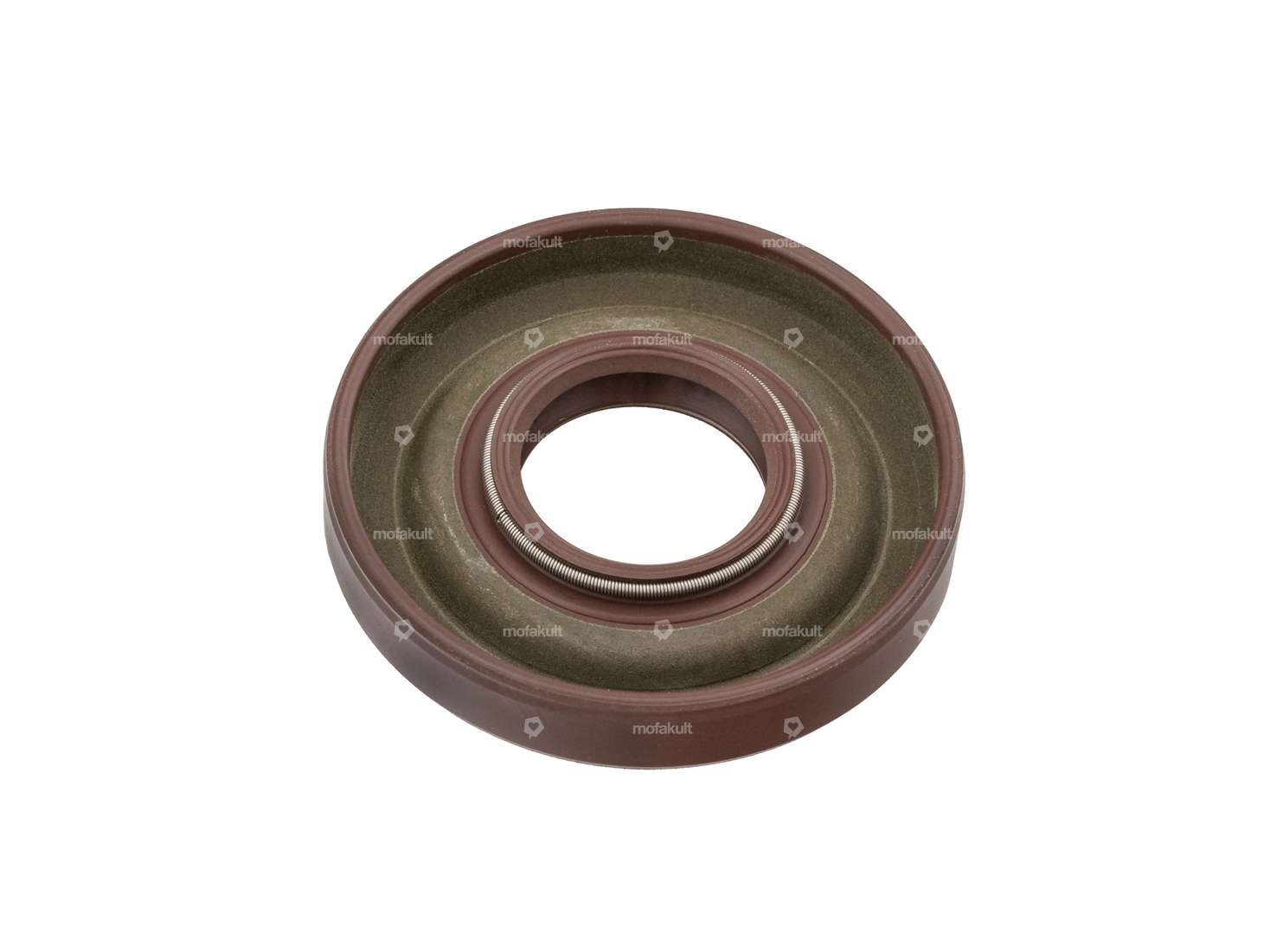

Shaft seal ring (colloquially known as oil seal) 17x40x7 mm for use on your Puch moped / moped with E50 input engine.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200°C.
Historical NBR shaft seals are temperature-resistant up to 100°C.
FPM or FKM shaft seals (colloquially known as Viton) are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Ø inner: 17 mm
Ø outer: 40 mm
Width: 7 mm
Material: FPM / FKM
Temperature resistant: -30 to +200 °C, briefly up to 220 °C
Type: A DUO - With rubberized outer jacket and two sealing lips.
| Shaft seal type | A DUO - With rubberized outer casing / two sealing lips. |
| Manufacturer | Puch |
| Material | FPM - Fluororubber |
| Surface | rubberized |
| Ø inside | 17 mm |
| Ø outside | 40 mm |
| Width | 7 mm |
| Temperature resistance (min.) | -30 - 200 °C |
| Area of application | Standard |
| Puch | E50 |
