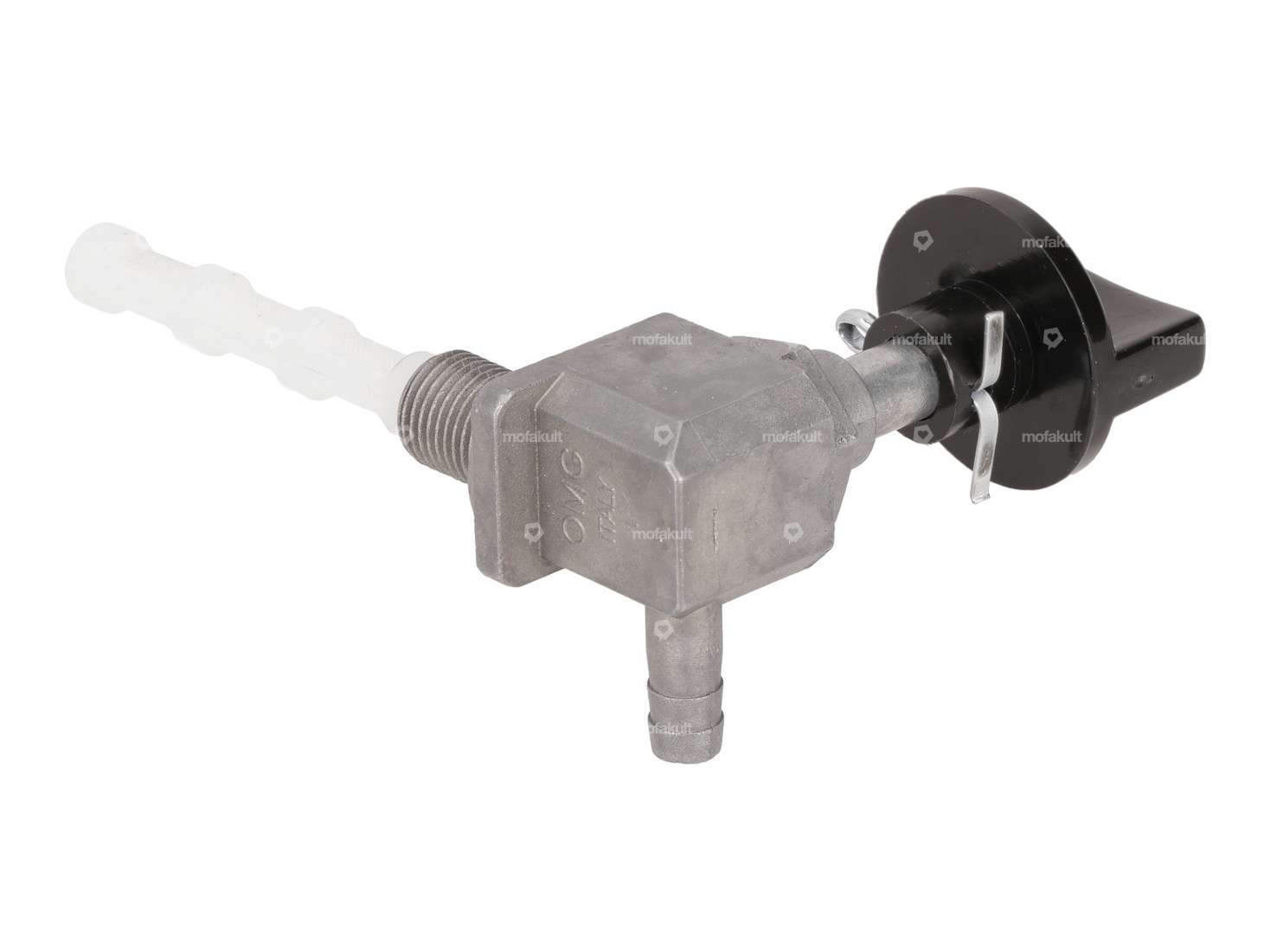

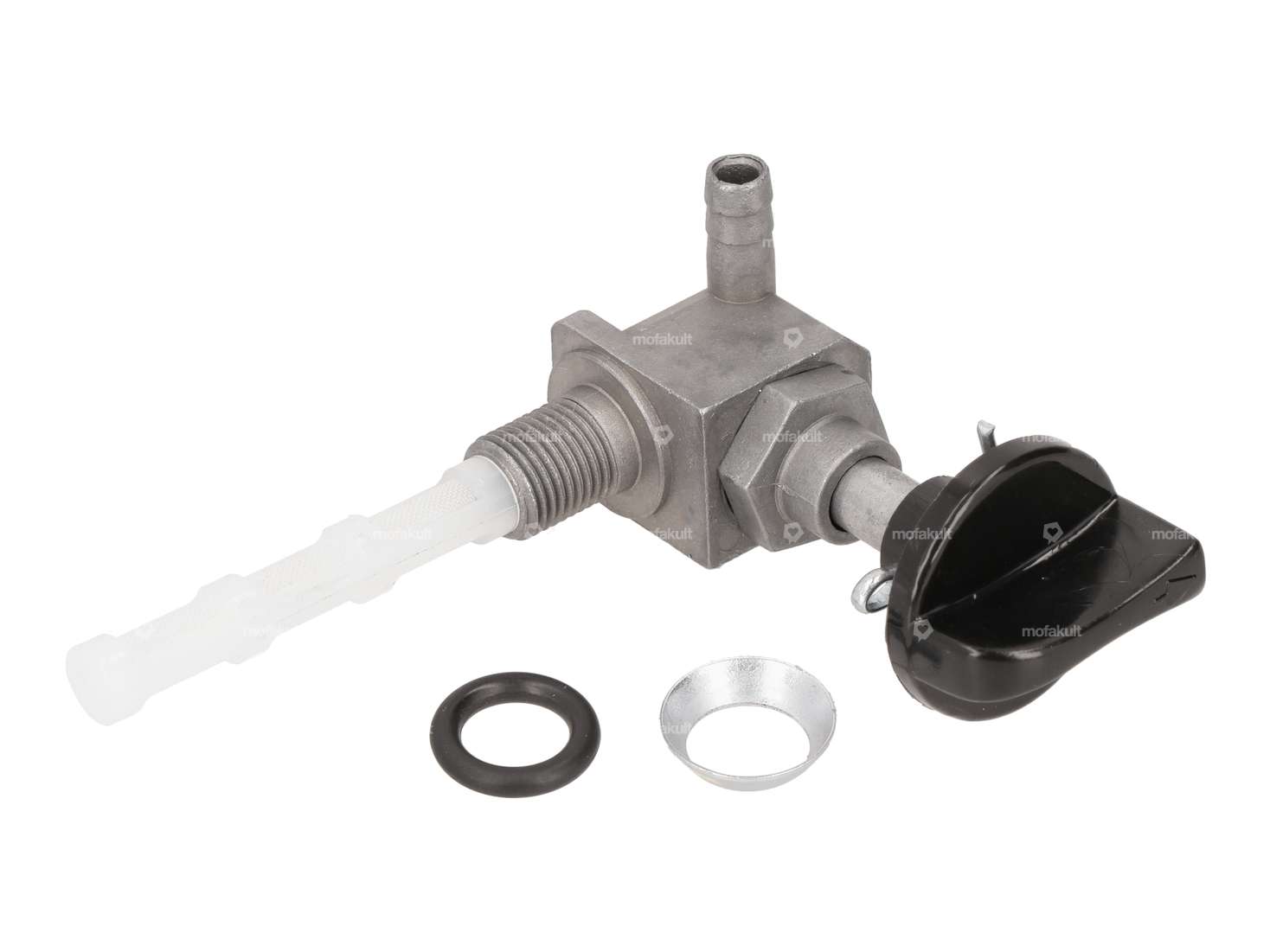

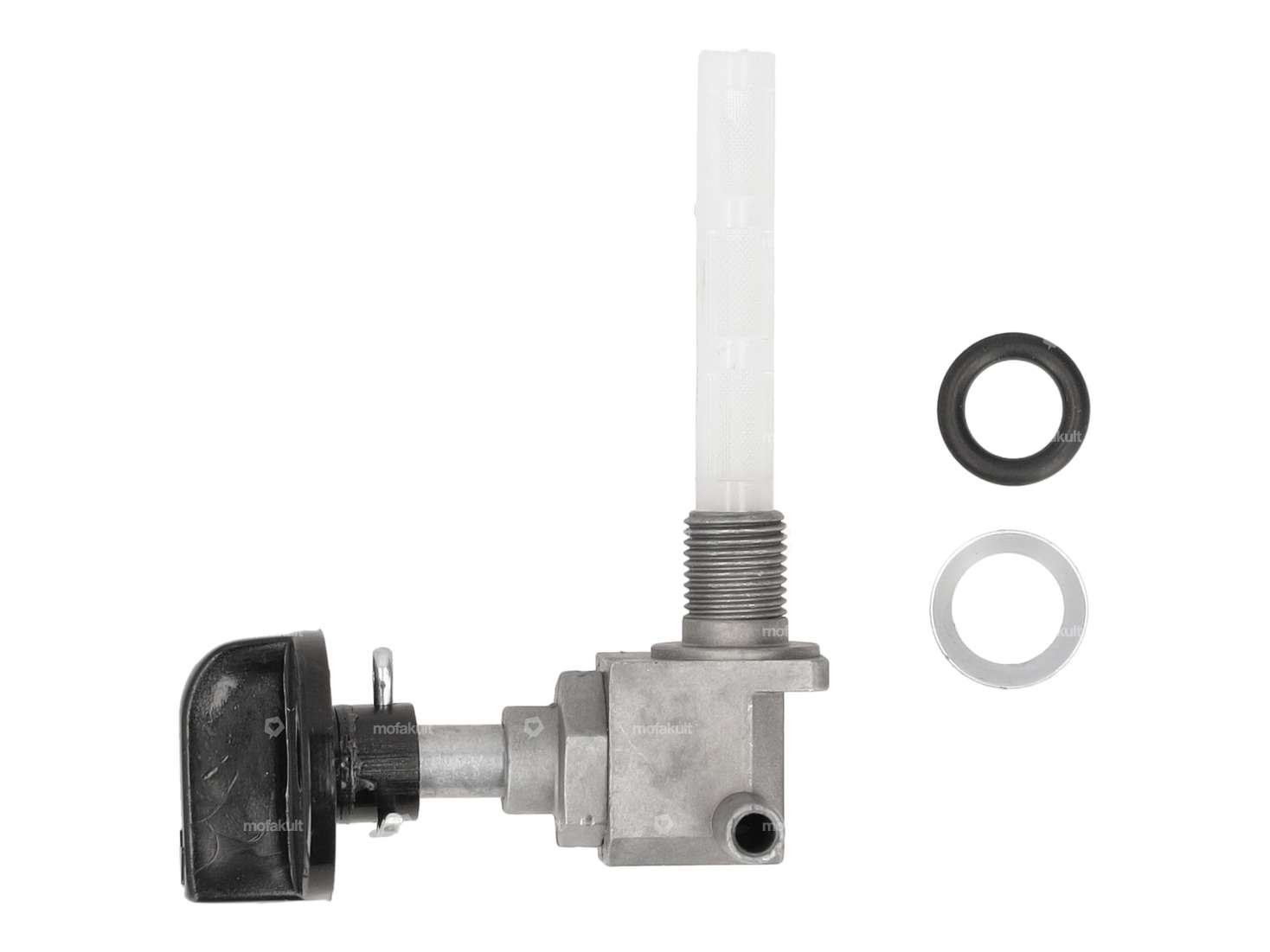

Universal fuel valve with an M10x1 mm threaded connection and a right-facing outlet for your moped, scooter, or small motorcycle.
The plastic control knob is secured with a cotter pin. The various positions are selected by turning the knob.
The fuel connection has the following specifications:
Connection thread: MF10 x 1 mm (fine thread)
Connection type: Screw-in
thread Positions: closed / open / reserve (Figure 1 shows the middle position)
Fuel hose connection diameter: 6 mm / 5.6 mm
Reserve level height (filter length): 33 mm
You can find alternative fuel valves, fuel hoses, and fuel filters in the accessories section.
A quality product from the Italian manufacturer OMG.
| Manufacturer | OMG |
| Material | Aluminum, Plastic |
| Possible lever positions | open / closed / reserve |
| Material lever | Plastic |
| Filter type | Plastic net |
| Installation direction | vertical / vertical |
| Outlet direction | right |
| Spare tube shape | straight |
| Mounting type | screw in (thread) |
| Reserve level | 33 mm |
| Ø fuel hose connection | 5.6 mm, 6 mm |
| Thread type | MF10x1.25 (fine pitch thread) |
