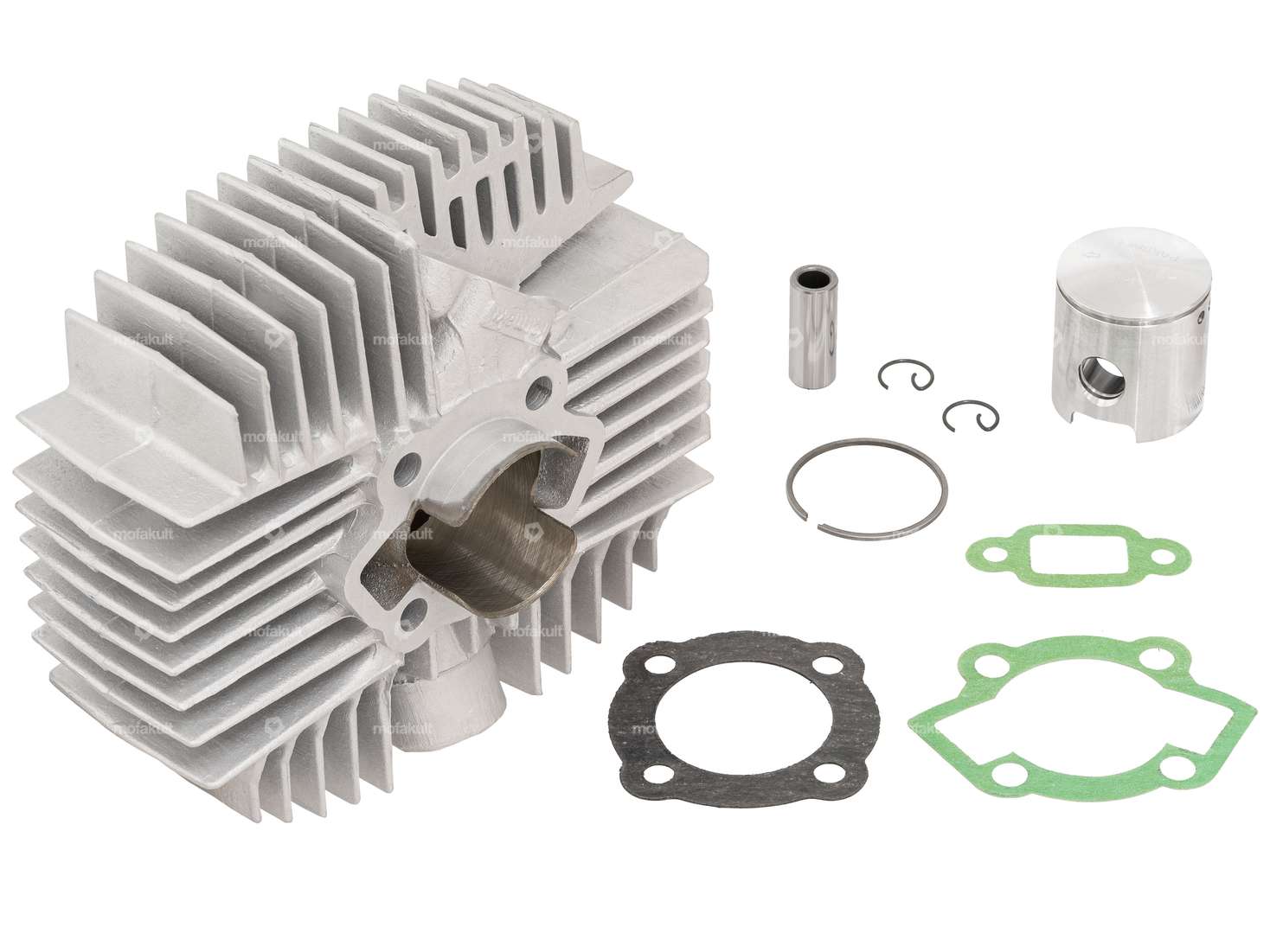

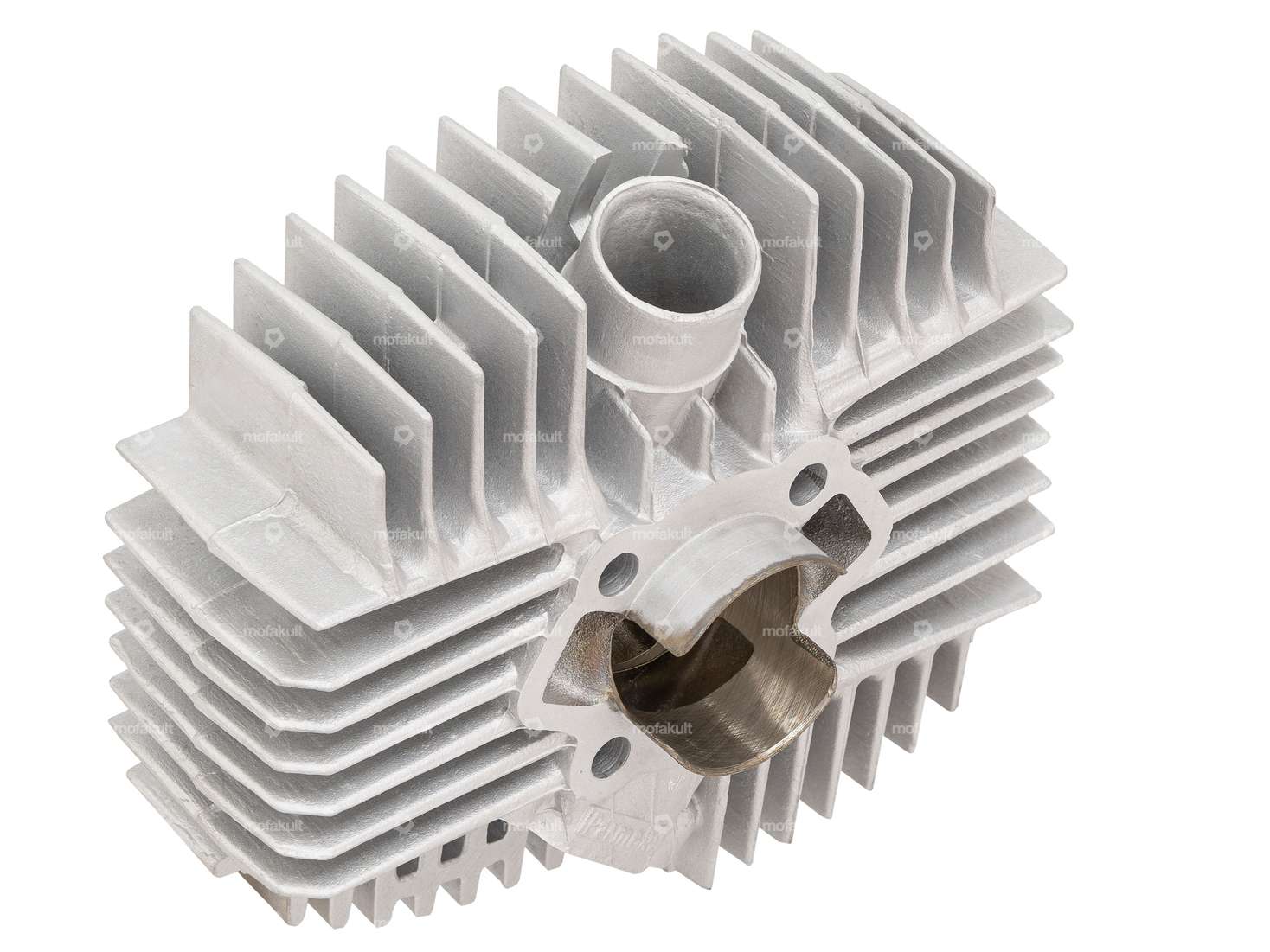

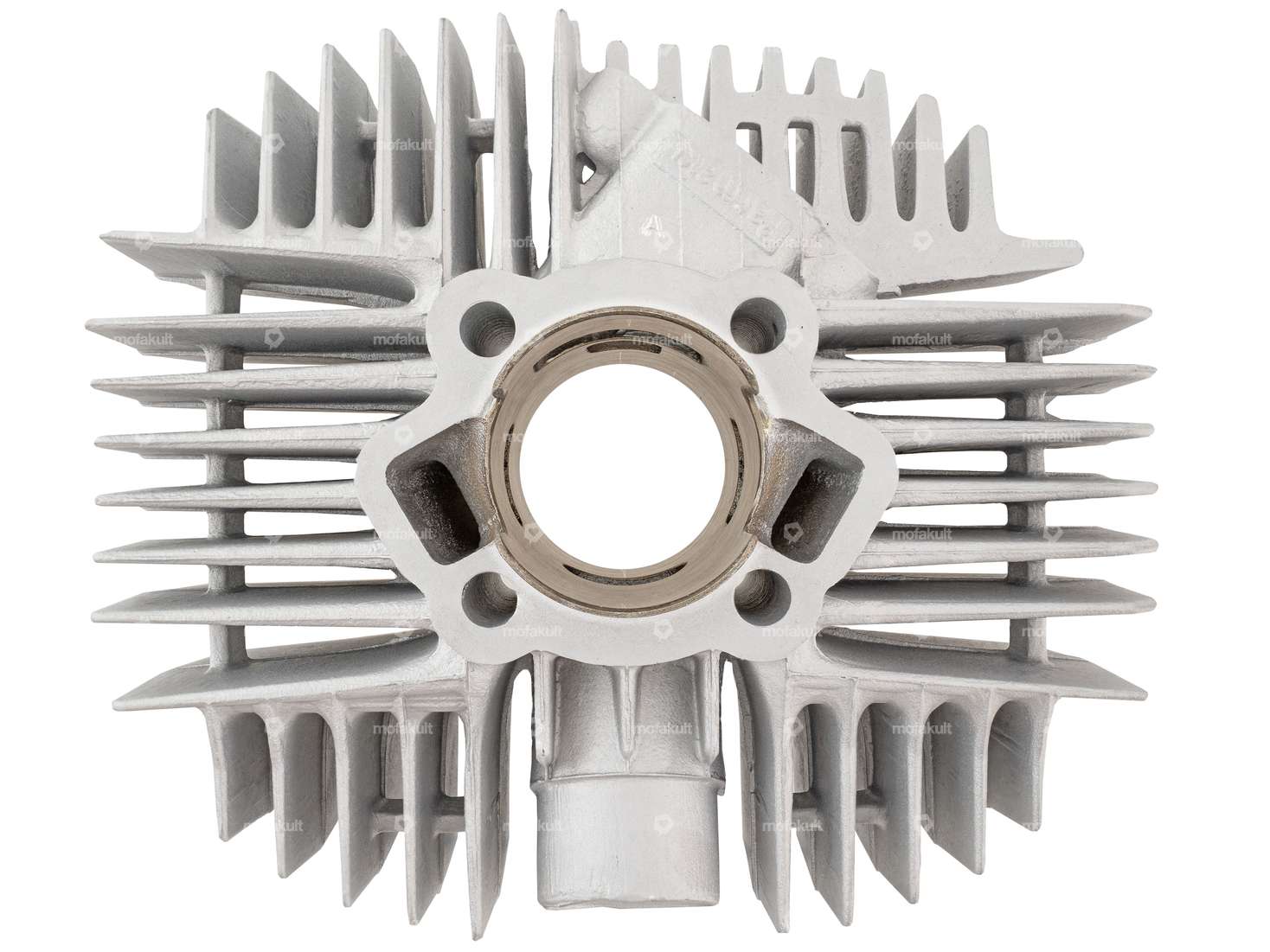

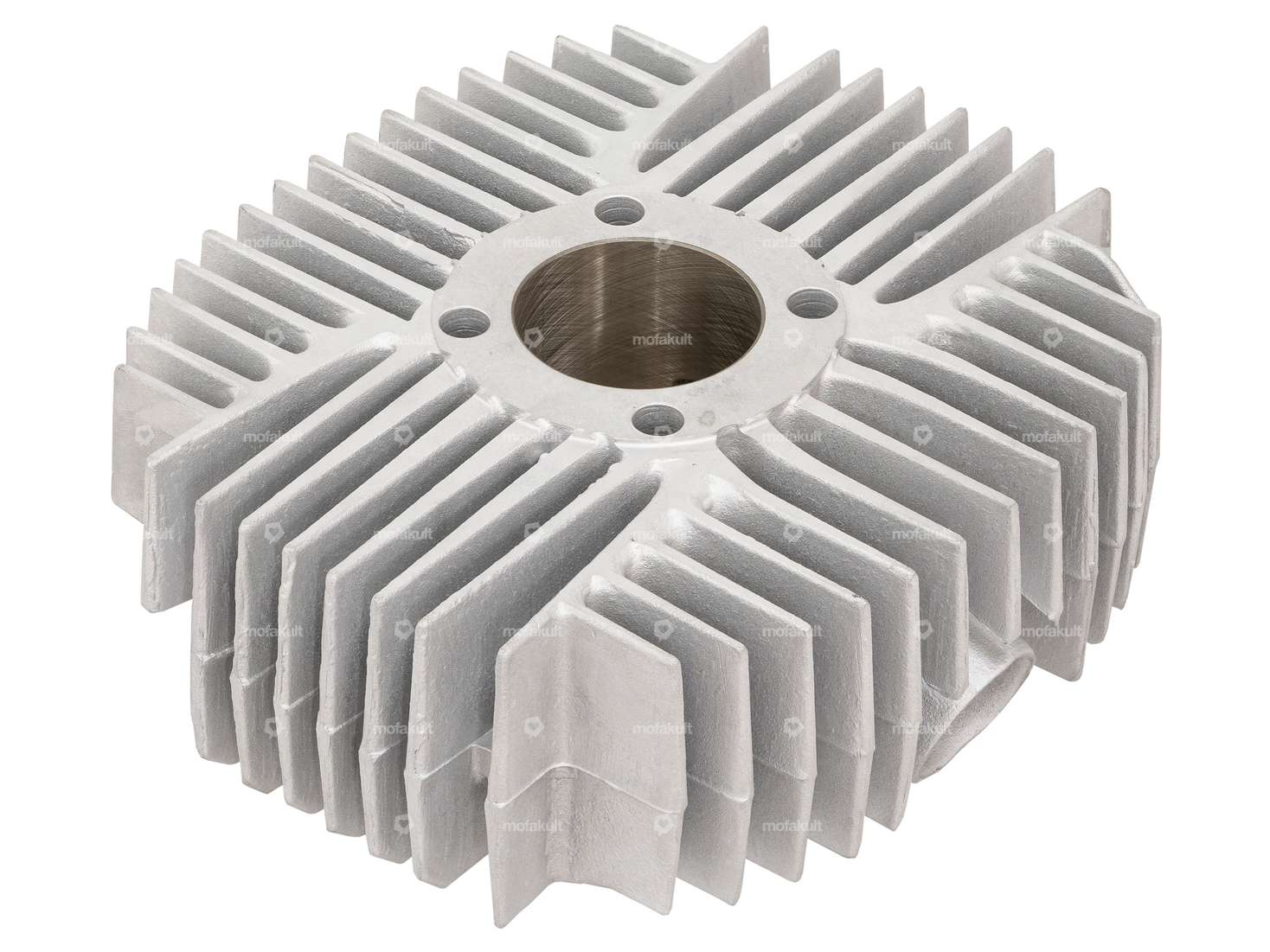

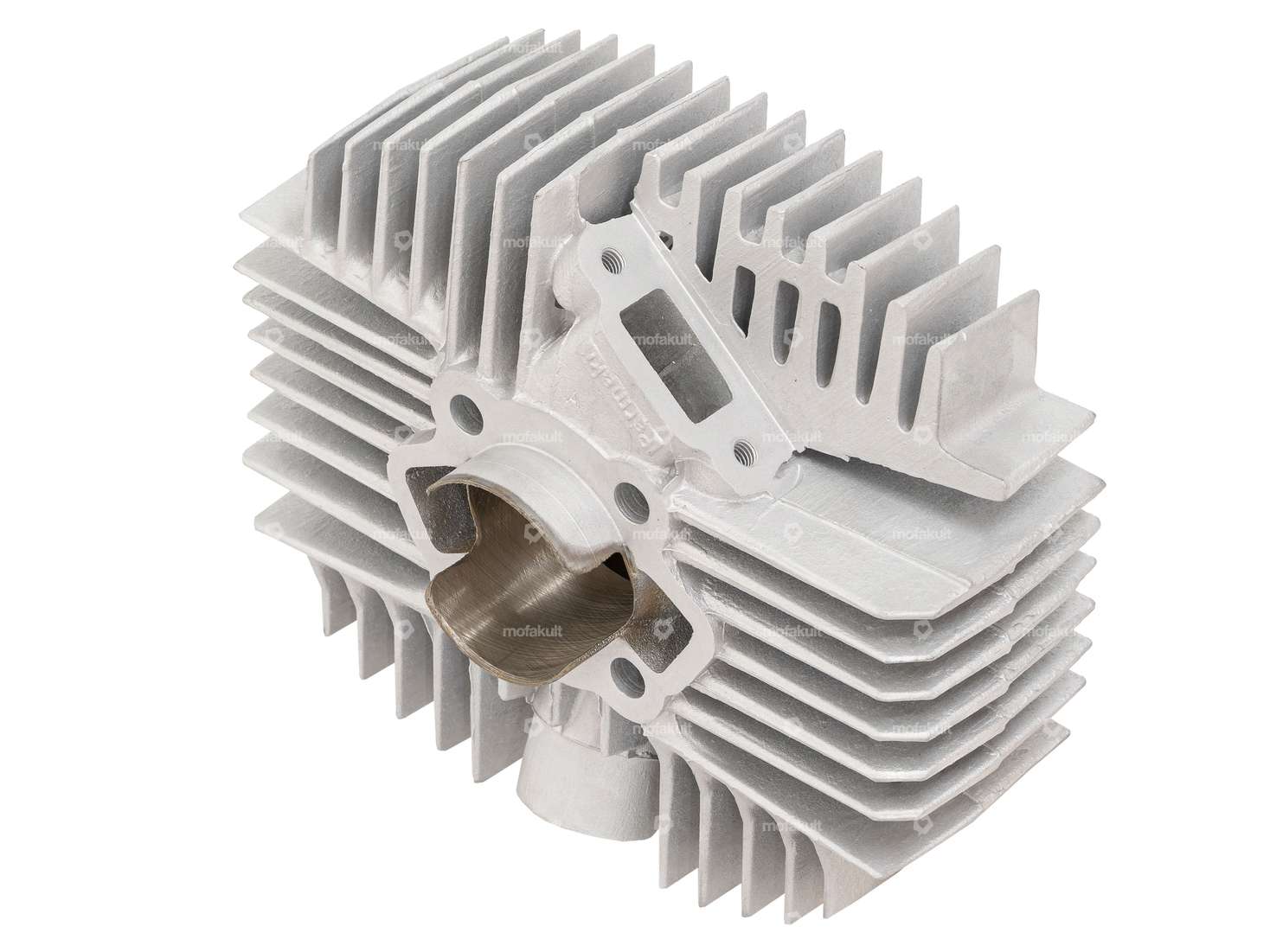

70 cc tuned cylinder for Kreidler Florett RS, RMC, RM, LF, and RM mopeds / small motorcycles.
This high-performance aluminum racing cylinder with a nickel-silicon carbide coating (commonly known as Nikasil) delivers a whopping 8 PS.
Exhaust port diameter: 32 mm
; Intake port dimensions: 28 x 16 mm
; Intake stud spacing: 47 mm
; Bore: 44.0 mm
Includes piston and gasket set.
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You can find the matching cylinder head for the racing kit as well as other components in the accessories section.
Product from the Italian manufacturer Parmakit.
| Manufacturer | Parmakit |
| Material | Aluminum |
| Camouflaged | No |
| Surface | sandblasted |
| Area of application | Tuning |
| Ø piston pin (B) | 14 mm |
| Number of fixing points | 4 pcs |
| Nominal diameter | 44 mm |
| Ø Outlet outside | 32 mm |
| Hole spacing inlet | 47 mm |
| Thread inlet | M6x1 (standard thread) |
| Outlet type | clamped |
| Kreidler |
Accessories & related products
Rito crankshaft Kreidler Florett K3 42 mm stroke
Manufacturer: Rito · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø piston pin (B): 14 mm · Area of application: Standard · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 39.9 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs
303,30 EUR

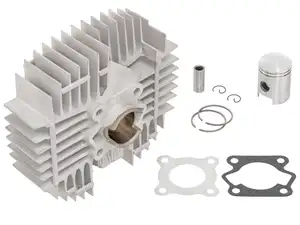

40 mm tuning cylinder | Kreidler Florett RS, RMC
