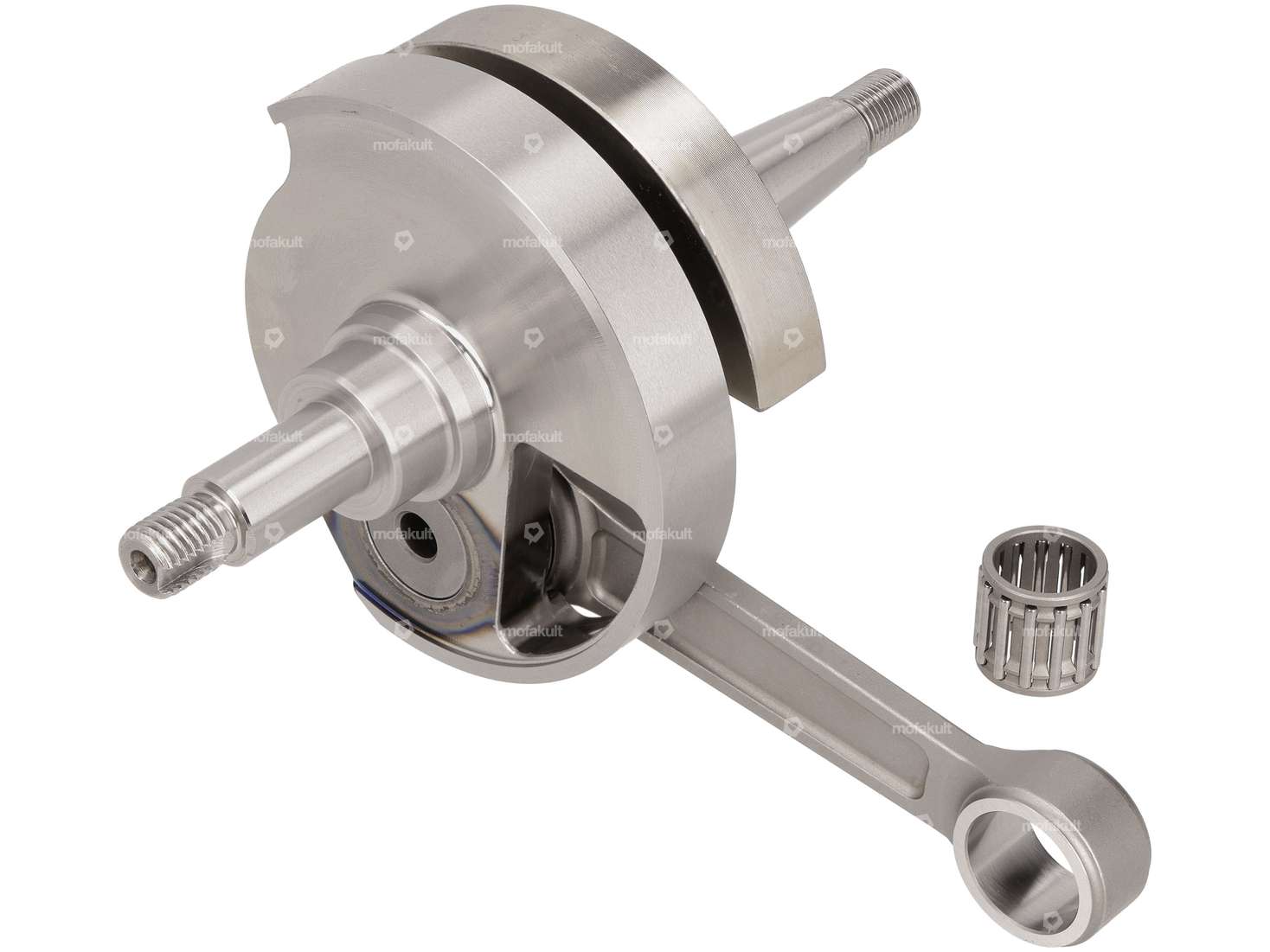

The Polini crankshaft «Racing» with 57 mm stroke is a racing crankshaft for the rotary valve engine, suitable for your Vespa PX 200, P 200, Rally 200 and Cosa 200.
The finely balanced tuning crankshaft impresses with a stable connecting rod and a flow-optimized steering cheek. The extended intake control angle means that the timing cross-section at the rotary valve can be increased - ideal if you want to tune your large-frame engine cleanly for bandwidth and speed. With 110 mm connecting rods, it is ideal as a robust basis for new builds or if you want to give your engine a stable upgrade. The timing is 138° / 5° after TDC.
| Manufacturer | Polini |
| Area of application | Tuning |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 57 mm |
| Connecting rod length center-center | 110 mm |
| Total length of crankpin on clutch side | 58.8 mm |
| Total length crankpin ignition side | 77.7 mm |
| Ø crank webs | 97.9 mm |
| Ø Connecting rod eye | 20 mm |
| Ø piston pin (B) | 16 mm |
| Ø Bearing seat (clutch side) | 25 mm |
| Ø Bearing seat (ignition side) | 25 mm |
| Thread type | MF12x1.5 (fine pitch thread), MF12x1.25 (fine pitch thread) |
| Thread length | 14.5 mm, 15.5 mm |
| Dimension needle bearing | 16x20x20 |
| Wide crank webs | 39.1 mm |
| Control time according to O.T | 138 °, 5 ° |
| Suzuki | Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 |
