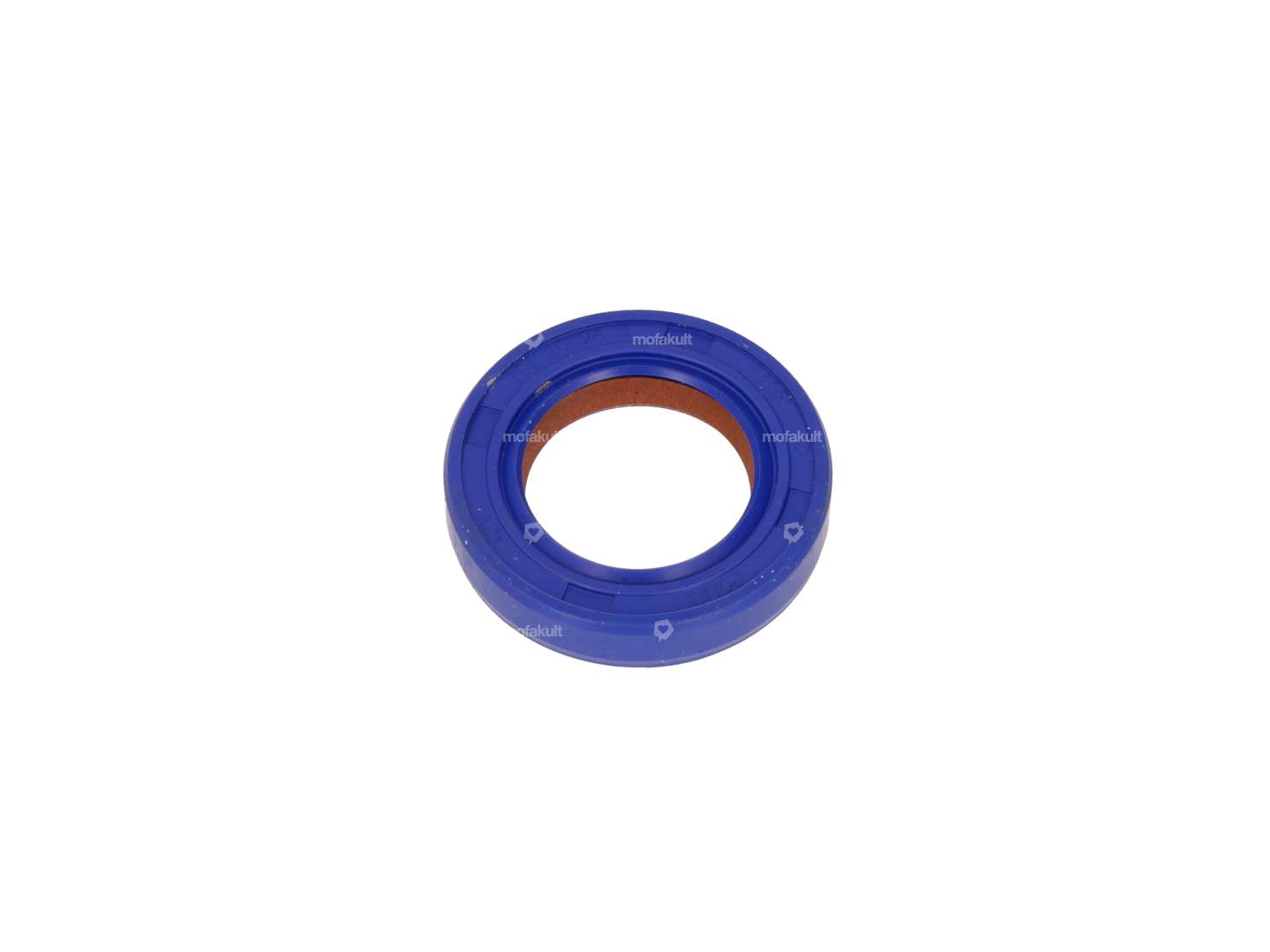

Shaft seal oil seal (colloquially known as oil seal) with sealing lip made of PTFE (colloquially known as Teflon) with the dimensions 15/24/5 mm (15x24x5) for use on the crankshaft on your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200°C, whereas conventional NBR shaft seals are only resistant up to 100°C.
This radial seal ring made of FPM / FKM (commonly known as Viton) has an additional sealing lip made of PTFE, a material with a high thermal load capacity that does not interact with the lubricant and can therefore withstand the highest loads.
You can find more sealing rings for your Piaggio in the accessories section.
Quality product from the Italian manufacturer Polini.
Manufacturer: Polini · Material: FPM / FKM (colloquially known as Viton) · Surface: rubberized · Area of application: Racing · Place of use: Universal · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm
| Shaft seal type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | Polini |
| Material | FPM / FKM (colloquially known as Viton) |
| Area of application | Racing |
| Surface | rubberized |
| Ø inside | 15 mm |
| Ø outside | 24 mm |
| Width | 5 mm |
| Place of use | Crankshaft |
| Temperature resistance (min.) | -30 - 200 °C |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
