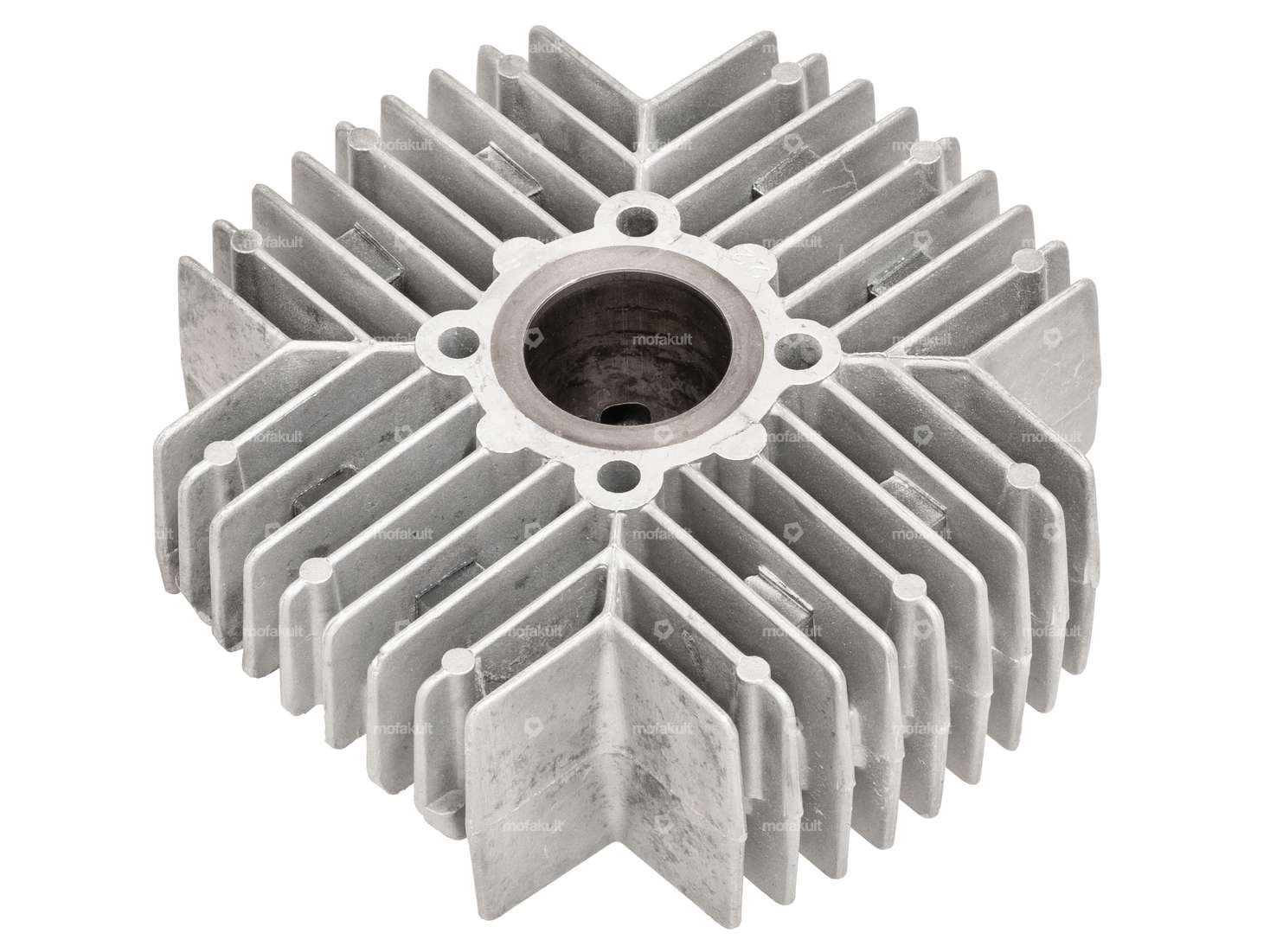

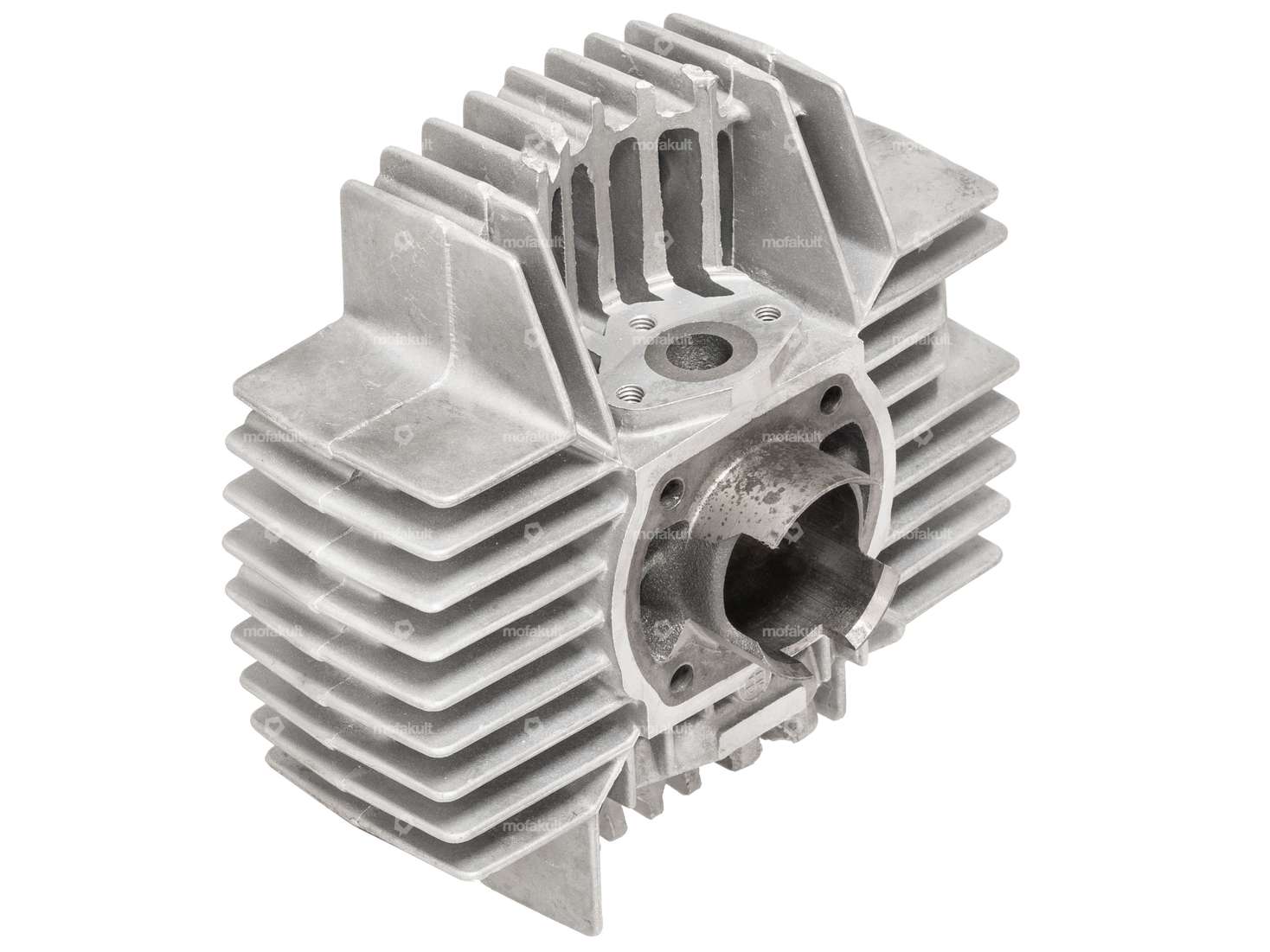

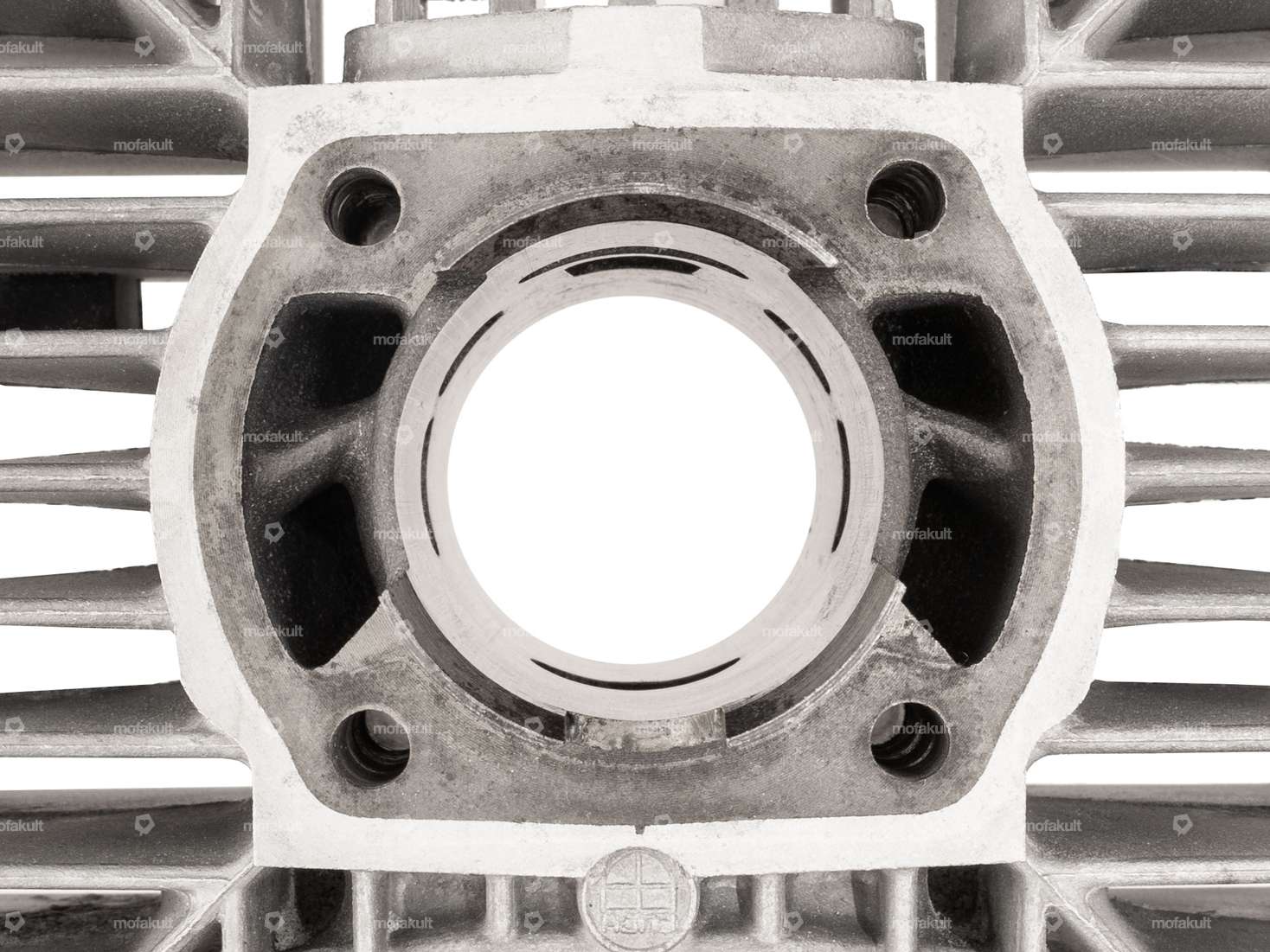

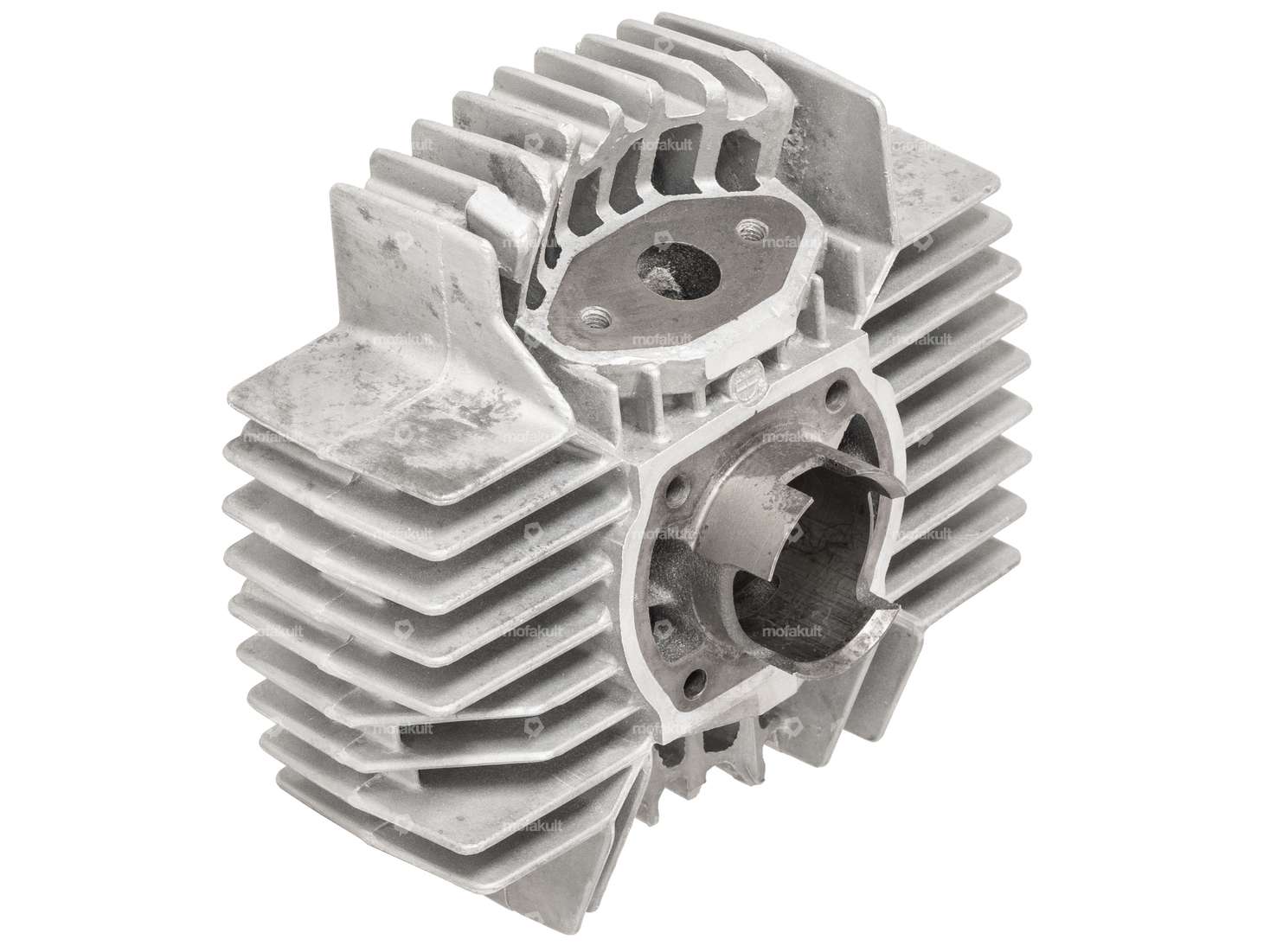

Puch 38 mm cylinder Occ. | Puch Supermaxi LG1, LG2

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

38 mm cylinder kit original with seal | Puch Supermaxi LG1 / LG2

Camouflaged: Yes · Material: Gray cast iron · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Nominal diameter: 38 mm · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Standard · Number of fixing points: 4 pcs · Outlet type: slanted · Thread outlet: M6x1 (standard thread)

Exhaust 22 mm | Puch Supermaxi LG1/LG2

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Ø outside: 56.5 mm · Ø Internal connection: 19 mm · Ø Silencer: 58 mm · Color: Chrome · Total length: 915 mm · Mounting type: Welded lug · Ø Flame tube outside: 22 mm · Number of fixing points: 4 pcs · Flame tube attachment: Flange

40 mm cylinder kit Racing | Puch Supermaxi LG1 / LG2

Nominal diameter: 40 mm · Camouflaged: No · Material: Gray cast iron · Surface: sandblasted · Crankshaft stroke: 43 mm · Ø cylinder neck: 43 mm · Ø outlet inside: 20 mm · Ø Inlet inside: 18 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Decompressor: No · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Area of application: Tuning · Hole pattern [mm]: 44 x 44

38 mm cylinder kit Racing | Puch Supermaxi LG1 / LG2

Nominal diameter: 38 mm · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

38 mm cylinder head original Occ. | Puch Supermaxi

swiing® revival air filter screen Ø 52 mm original

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 52 mm · Height: 10 mm · Camouflaged: No · Area of application: Standard

Handlebar fork plate 9 cm chrome

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Fork plate holder length: 90 mm · Clamping diameter: 22 mm · Ø outside: 22 mm · Length handlebar ends: 180 mm · Width: 630 mm · Height: 90 mm · Crossbar: No · Mounting type: Fork plate

Gasket cylinder head 38 mm | Puch X30 Velux

Material: Aluminum · Ø cylinder: 38 mm · Thickness: 0.4 mm · Ø screw holder: 8 mm · Place of use: Cylinder head

Handlebar fork plate 13 cm curved chrome

Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 22 mm · Width: 610 mm · Fork plate holder length: 90 mm · Height: 130 mm · Clamping diameter: 22 mm · Mounting type: Fork plate · Length handlebar ends: 165 mm · Crossbar: No

GPO wheel clamp 12 mm cranked reinforced (per piece)

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Total length: 75 mm · Cranking (offset): 6 mm · Ø inside: 13.1 mm · Thread type: M6x1 (standard thread) · Ø outside: 23.7 mm · Thread length: 35 mm

swiing® revival air filter original black | Puch X30 NG-2AH

Manufacturer: swiing® revival parts · Material: Plastic · Camouflaged: Yes · Filter type: Standard sieve · Ø Internal connection: 20 mm · Area of application: Standard · Mounting type: Plug connection clamped · Color: black

swiing® revival nut M12x1 x 10 SW17 Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Height: 10 mm · Width across flats: 17 mm · Strength class: 8 · Drive: External hexagon · Thread type: MF12x1 (fine pitch thread)

Barikit piston 38 mm | Puch

Manufacturer: Barikite · Nominal diameter: 38 mm · Ø outside piston (A): 38 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.57 mm · Total piston height (E): 52.47 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm · Weight piston kit: 73 g
