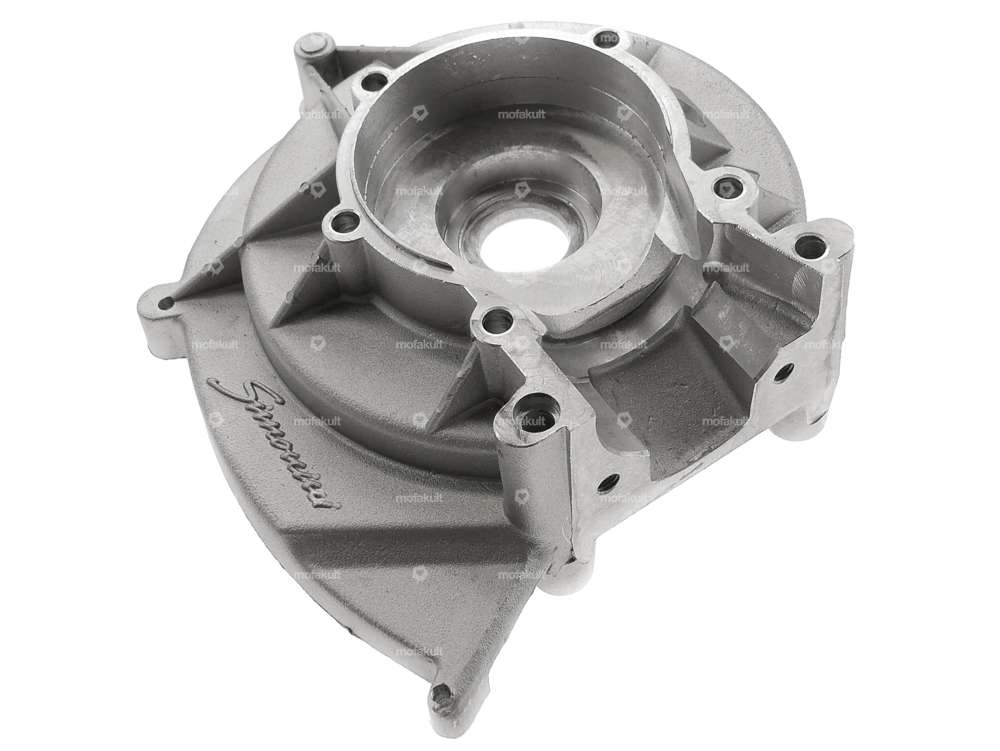

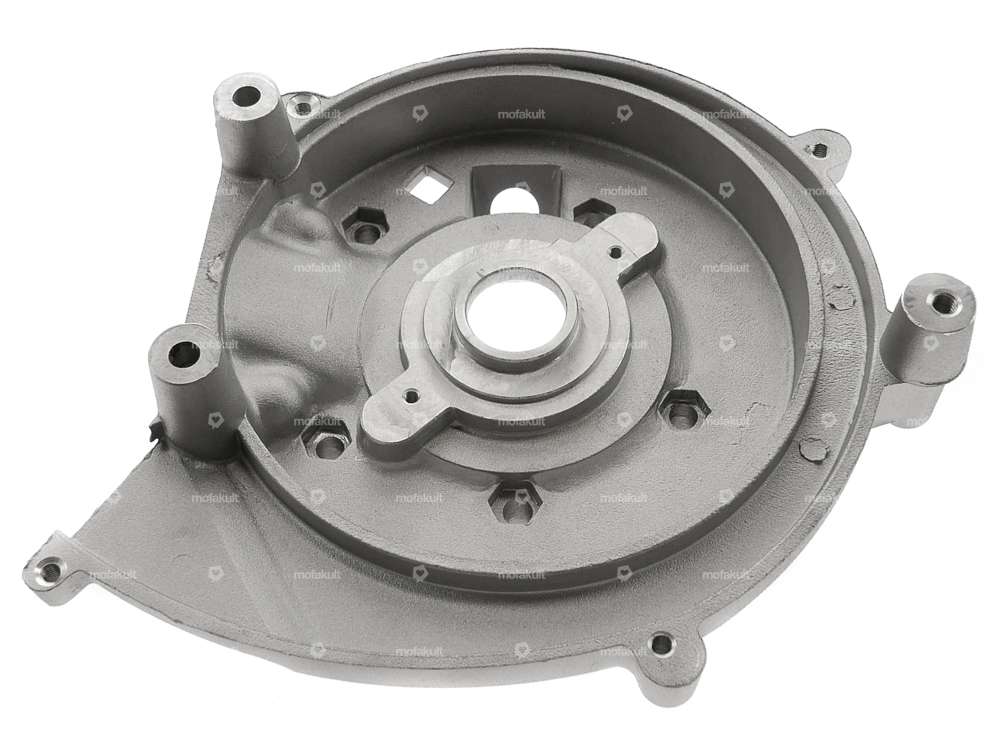

Racing engine case with intake system compatible with your Piaggio Ciao, Si, Bravo, and Boxer moped.
The racing engine case is one of the most exclusive cases available for Piaggio mopeds. It can only be used with the 100 cc Simonini cylinder kit, which can generate up to 16 PS at 13,000 rpm.

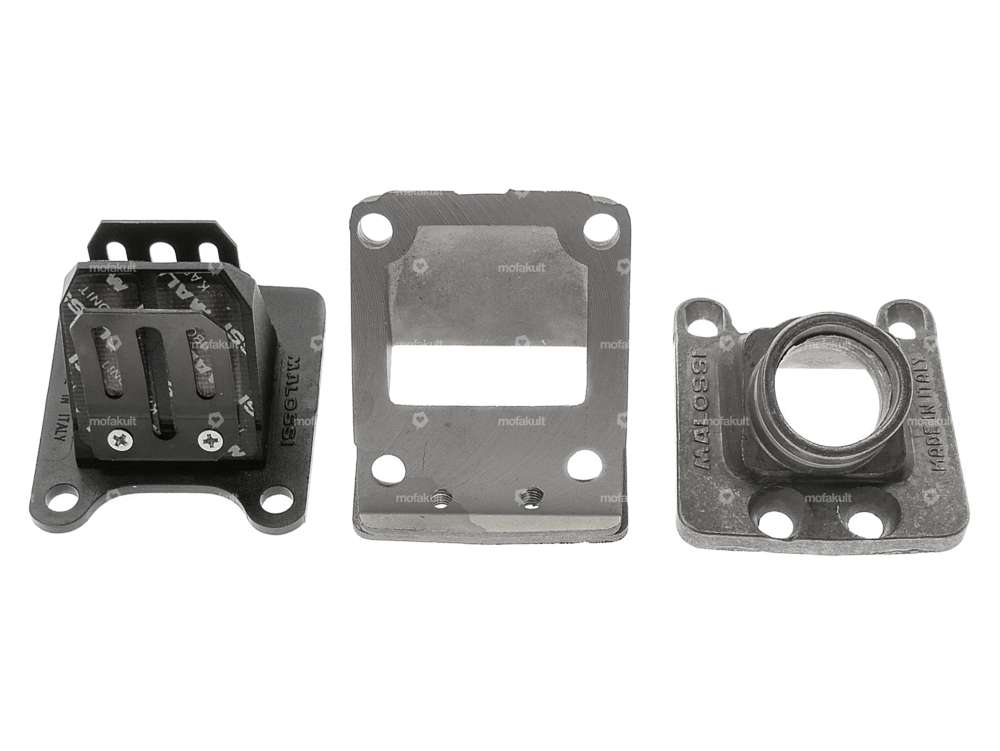

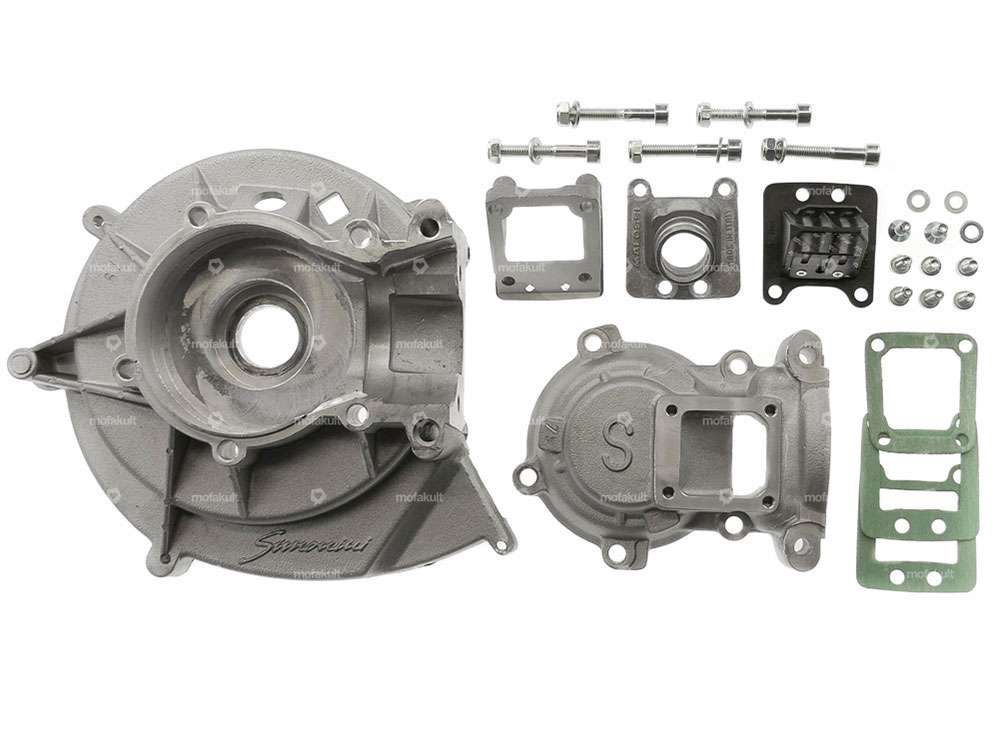

All parts shown are included in the package.
Notes:
This engine case can only be used in combination with the appropriate bearings.
A 6302 bearing (15x42x13 mm) is required in the left bearing seat on the ignition side, and a 6202 ball bearing (15x35x11 mm) is required in the right bearing seat.
The original Piaggio ball bearings cannot be used with this racing housing.
You can find the matching racing crankshafts, the cylinder kit, and the required ball bearings in the accessories section.
A quality product from the Italian manufacturer Simonini.
| Manufacturer | Simonini |
| Material | Aluminum |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
