Product description

Spare parts catalog for the Puch X30 models S, L and LA (Velux).

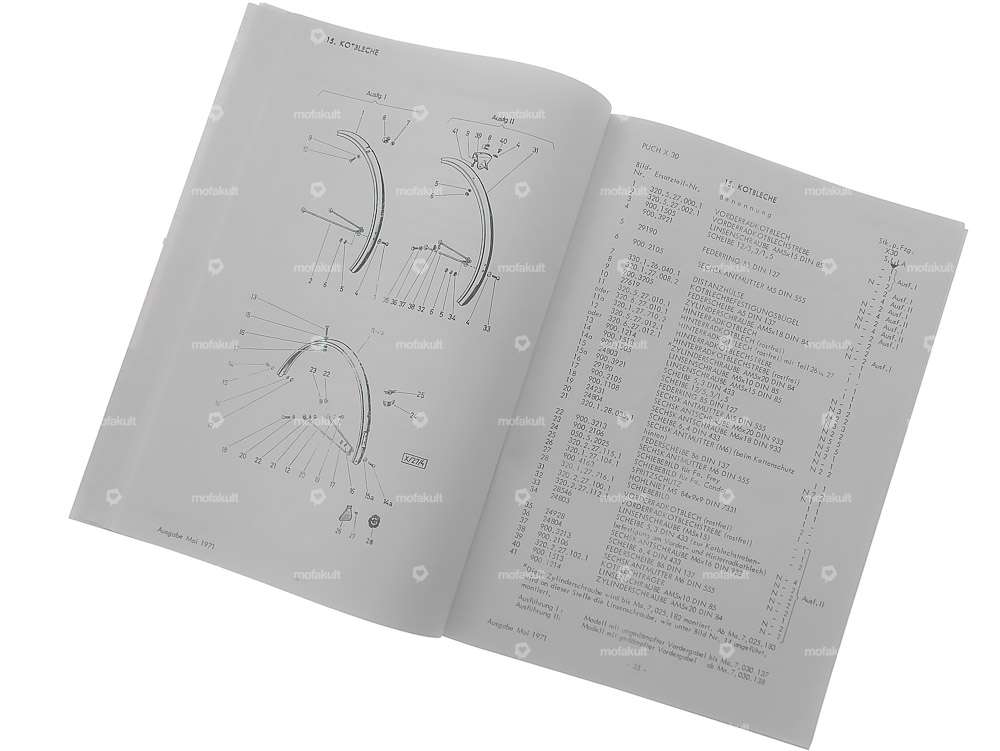

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.

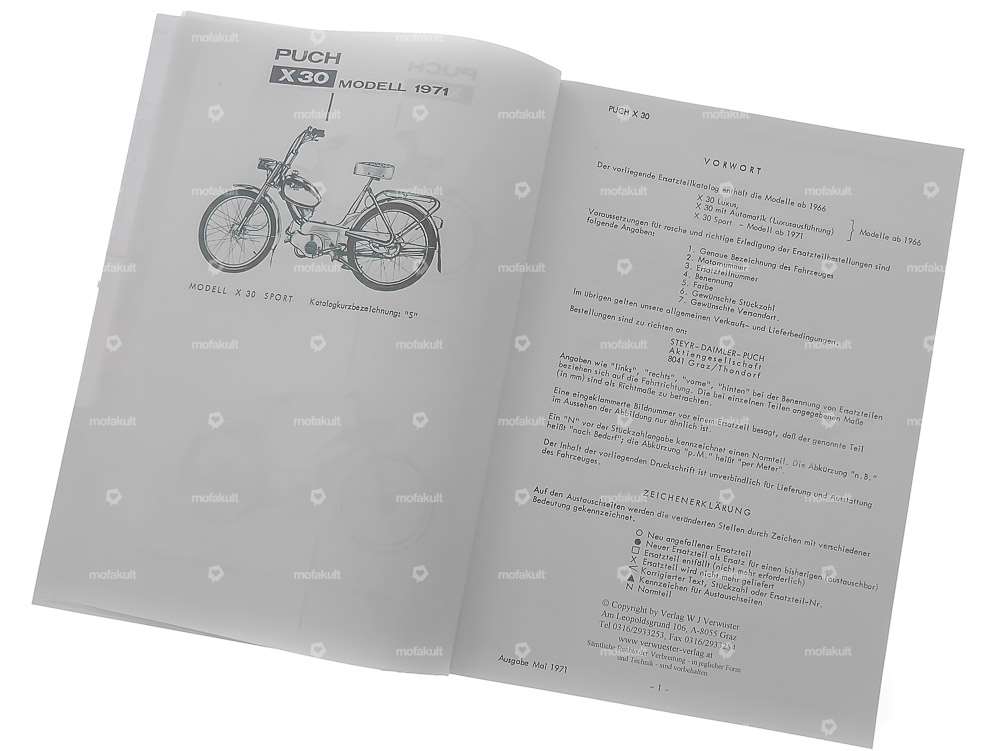

Super Swiss catalog from 1971 with 65 interesting pages.

Product details

Material	Paper
Number of pages	65 pcs
Language	German

Suitable for the following models

Puch

Z50 (X30 Velux)
