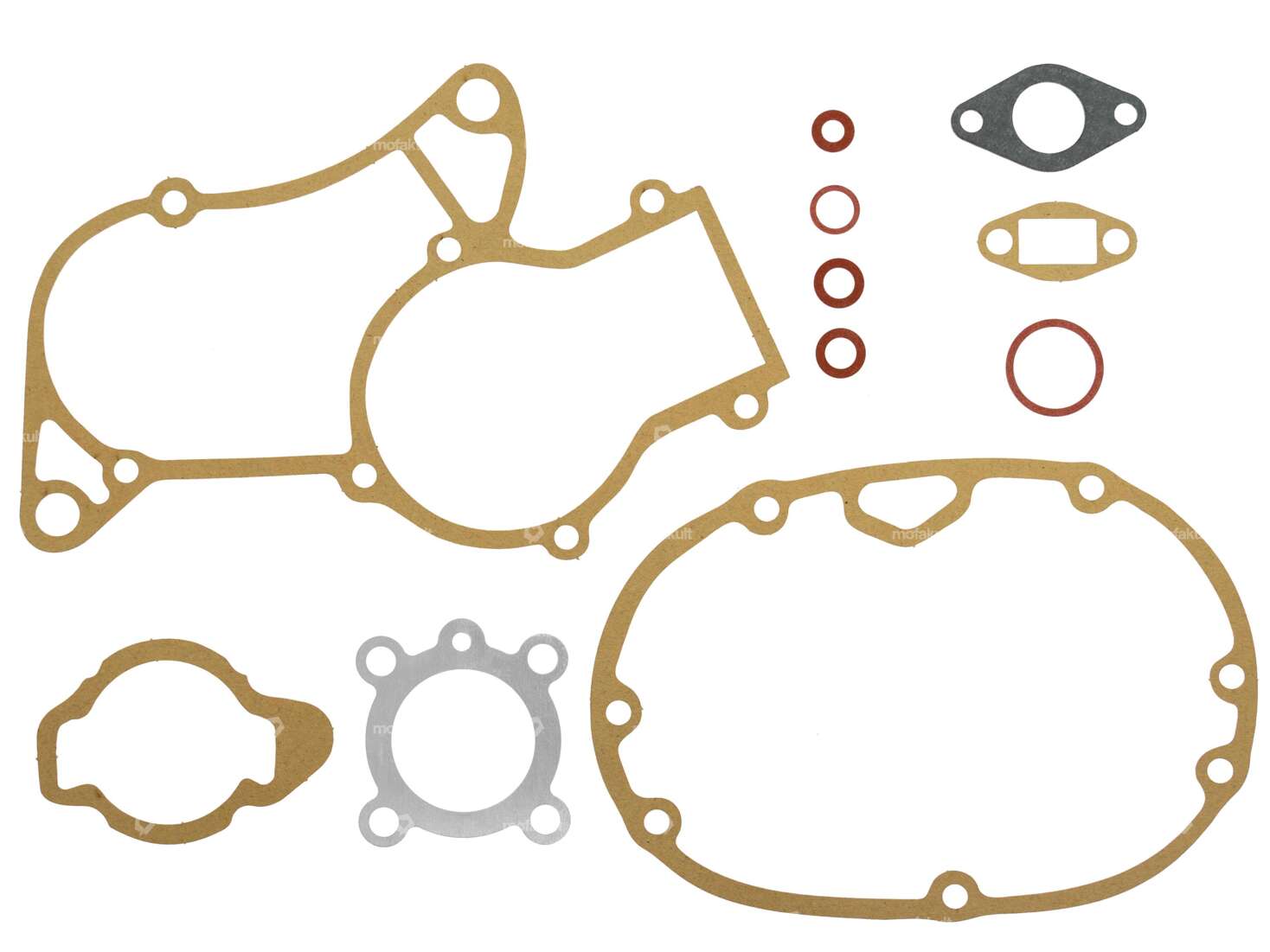

Complete gasket set for your Puch X30 Velux moped / moped.
The gasket set consists of the following high-quality, precisely fitting parts:
1x gearbox gasket 0.3 mm sealing paper
1x gearbox gasket 0.3 mm sealing paper
1x intake gasket 0.3 mm sealing paper
1x exhaust gasket 1.8 mm sealing paper
1x cylinder base gasket 0.5mm sealing paper
1x head gasket 0.35 aluminum sheet
1x bolt gasket Ø22.5/26.7 x 1.5 mm sealing box
1x screw gasket Ø10.3/13.7 x 1.35 mm sealing box
1x screw gasket Ø6.3/11.7 x 1 mm sealing box
2x screw gasket Ø8.4/11.7 x 0.85 mm copper
1x sticker "swiing revival parts" 90 x 19.6 mm
Other parts for your revision can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Area of application | Standard |
| Ø outlet inside | 22 mm |
| Hole pattern [mm] | 44 x 44 |
| Number of components | 11 pcs |
| Hole spacing outlet | 42 mm |
| Puch | Z50 (X30 Velux) |
