Not so nice

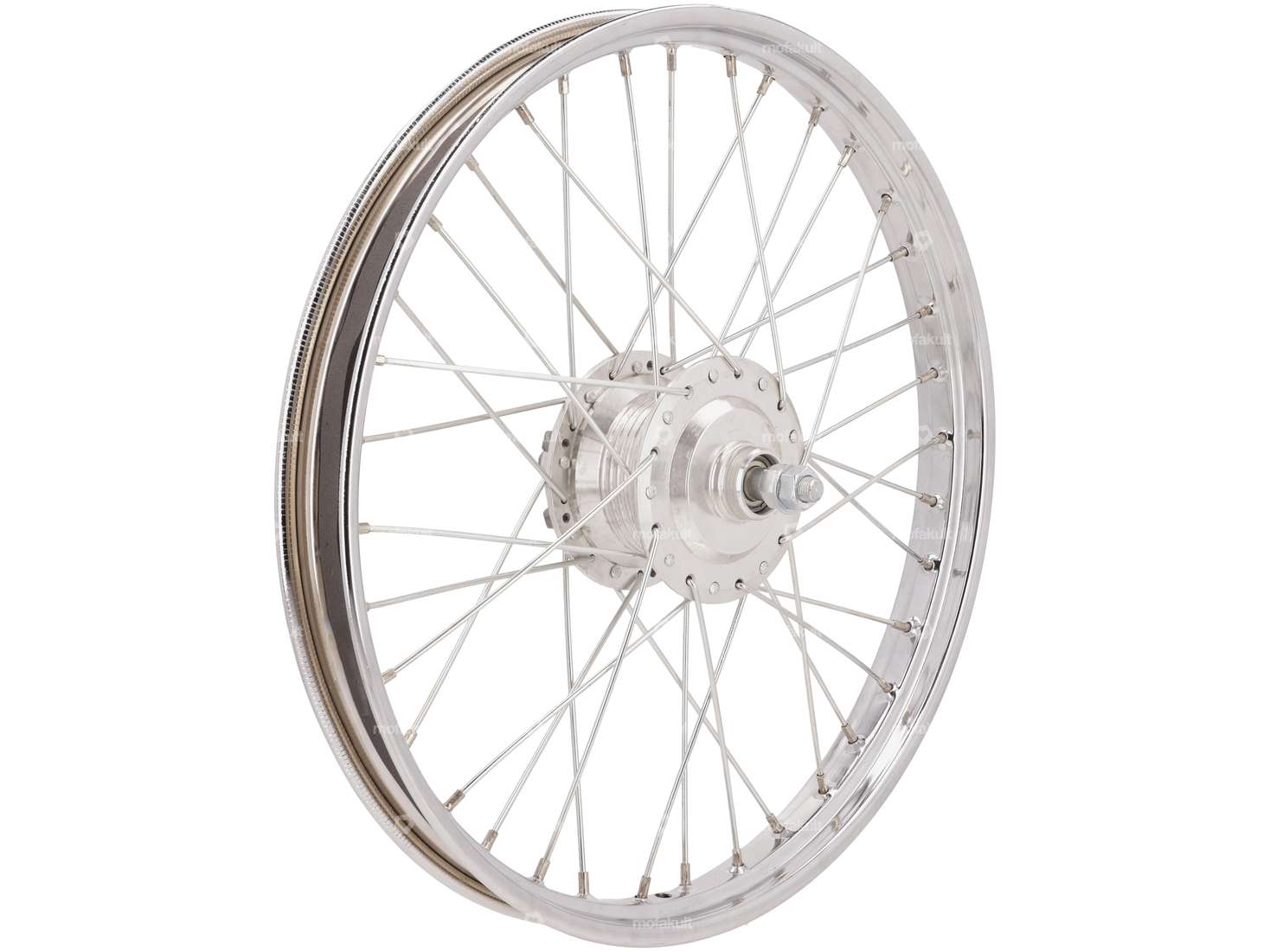

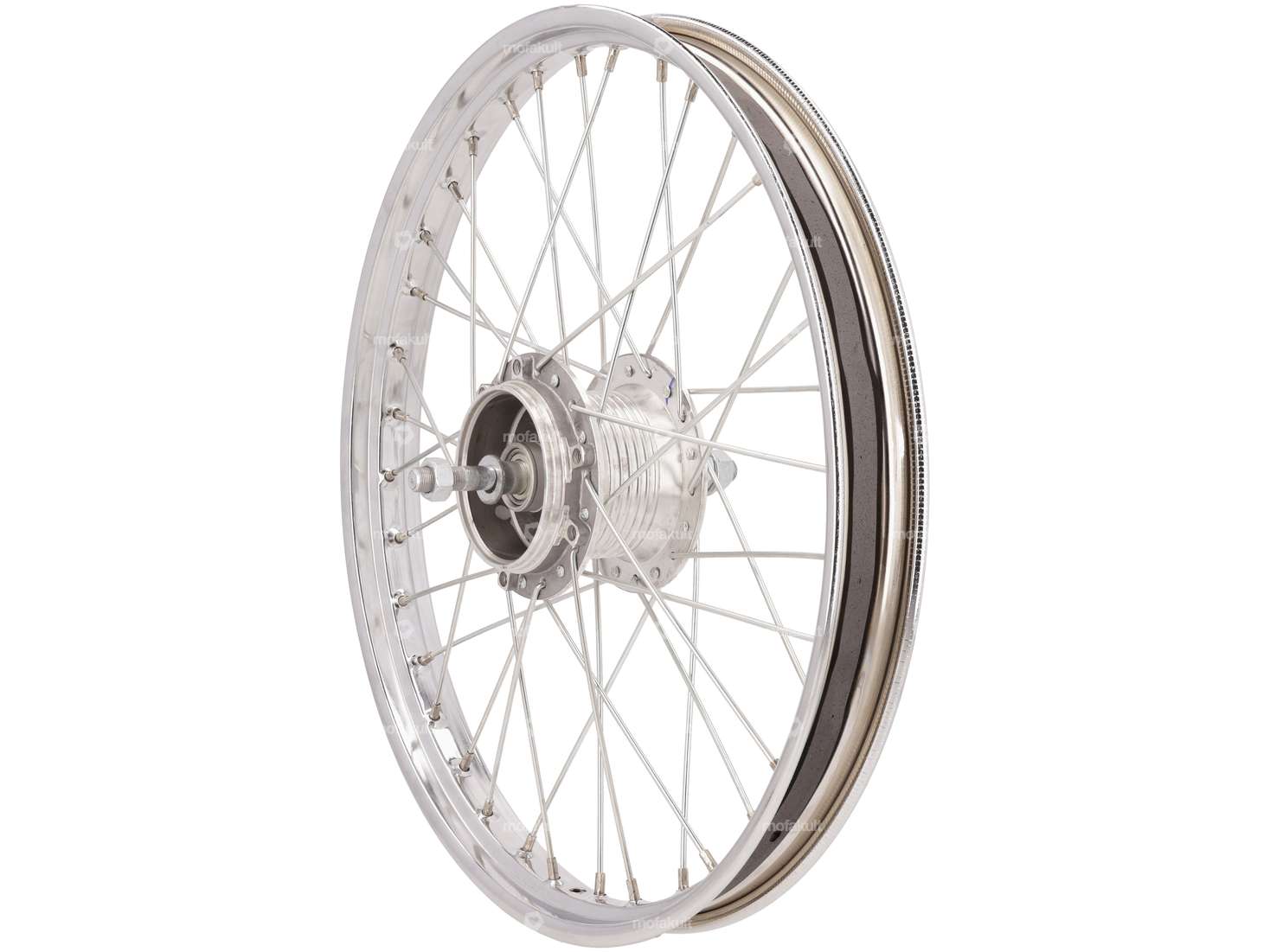

17-inch spoked rear wheel with a 1.5" rim for your Puch Maxi S & N moped.
The aluminum hub comes complete with wheel bearings, axle, nuts, and spacers. The rim is made of chrome-plated steel. The spokes and nipples are galvanized.
Moderately casual! – We strive to offer you the widest selection of moped replacement parts. However, the quality of this product is rather “moderately casual,” and we do not recommend it. If you still choose this item, we understand your decision, but we cannot offer any warranty or exchange. This is a replica product that differs in quality from the original rim.- The spokes should be checked before first use and tightened if necessary.
- The rim’s concentricity should be checked.
- The threads for the sprocket should be reamed out so that the sprocket can be secured with standard screws and nuts.

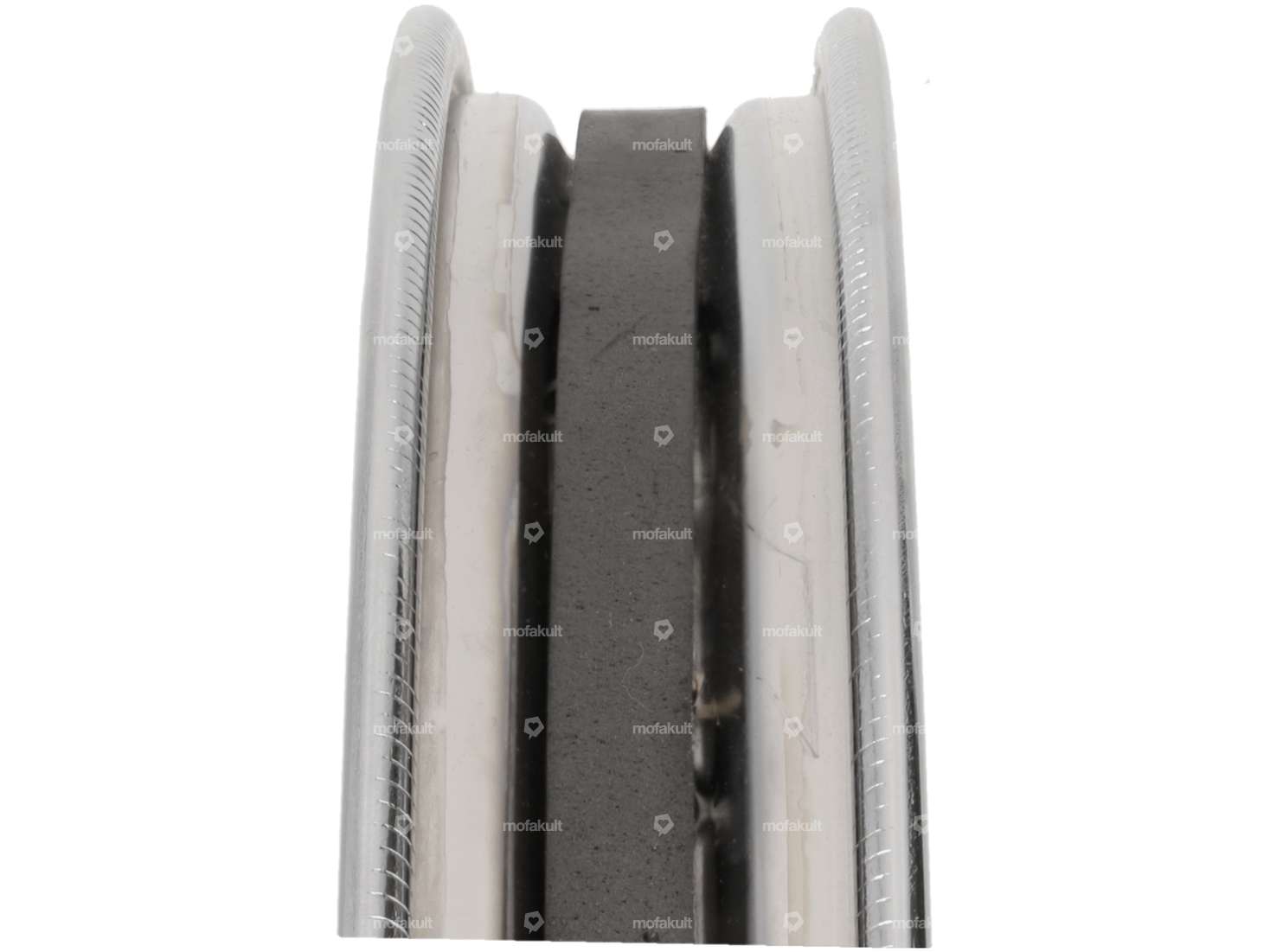

- The rim tape should be replaced with a high-quality product.
You can find high-quality alternatives, compatible brake anchor plates, and the rear wheel rim in the accessories section.
| Surface | galvanized (blue), chrome-plated |
| Nominal diameter | 457 mm |
| Material | Aluminum, Steel |
| Wheel size | 17 " |
| Thread type | MF12x1 (fine pitch thread) |
| Rim well depth | 9.5 mm |
| Ø spoke | 2.9 mm |
| Ø axle | 12 mm |
| Overall width outside | 50 mm |
| Axle length | 180 mm |
| Jaw width [mm] | 37.5 mm |
| Jaw width [inch] | 1.5 " |
| Ø Brake drum | 80 mm |
| Number of spoke holes | 36 pcs |
| Puch | E50 |
