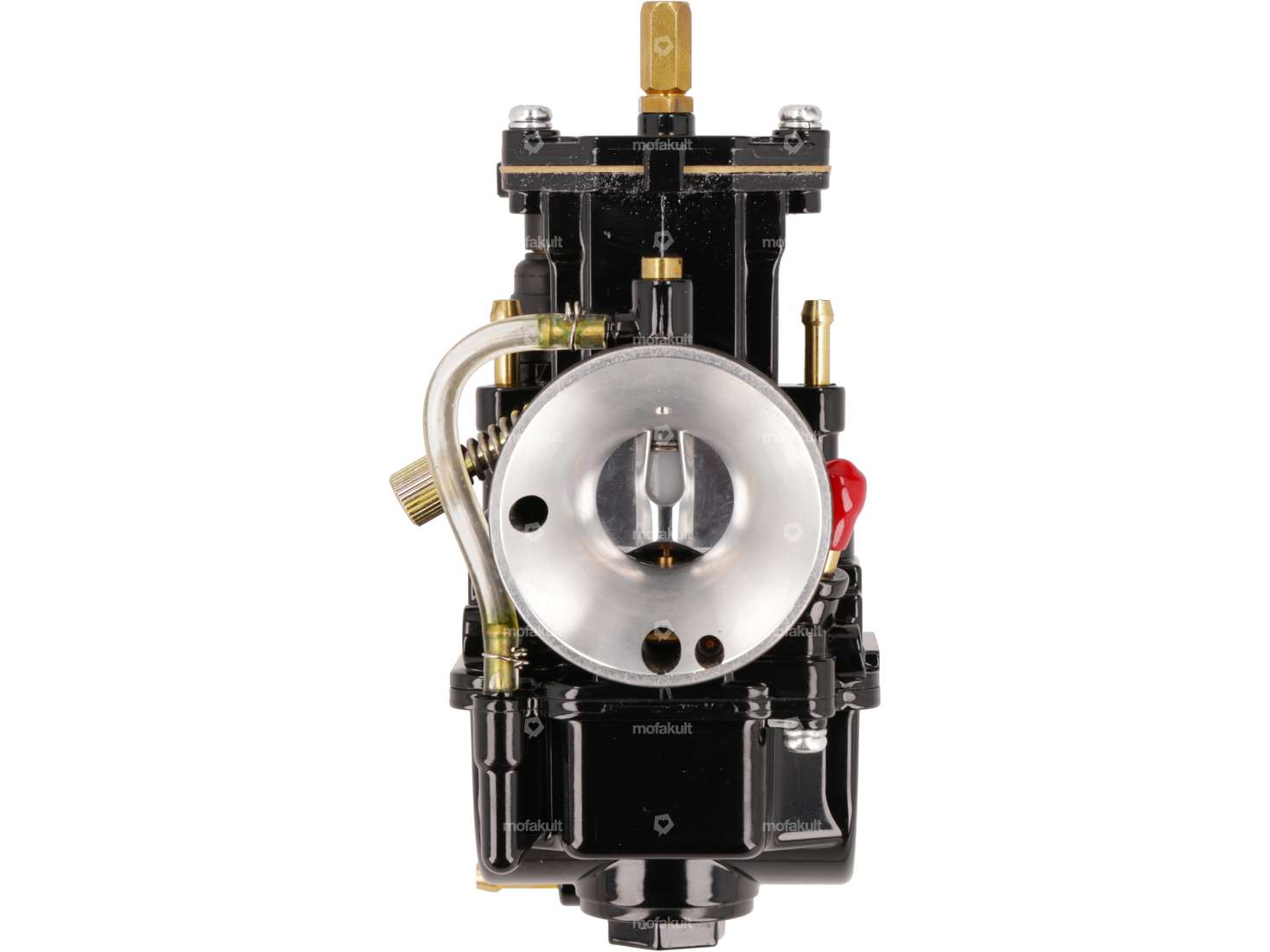

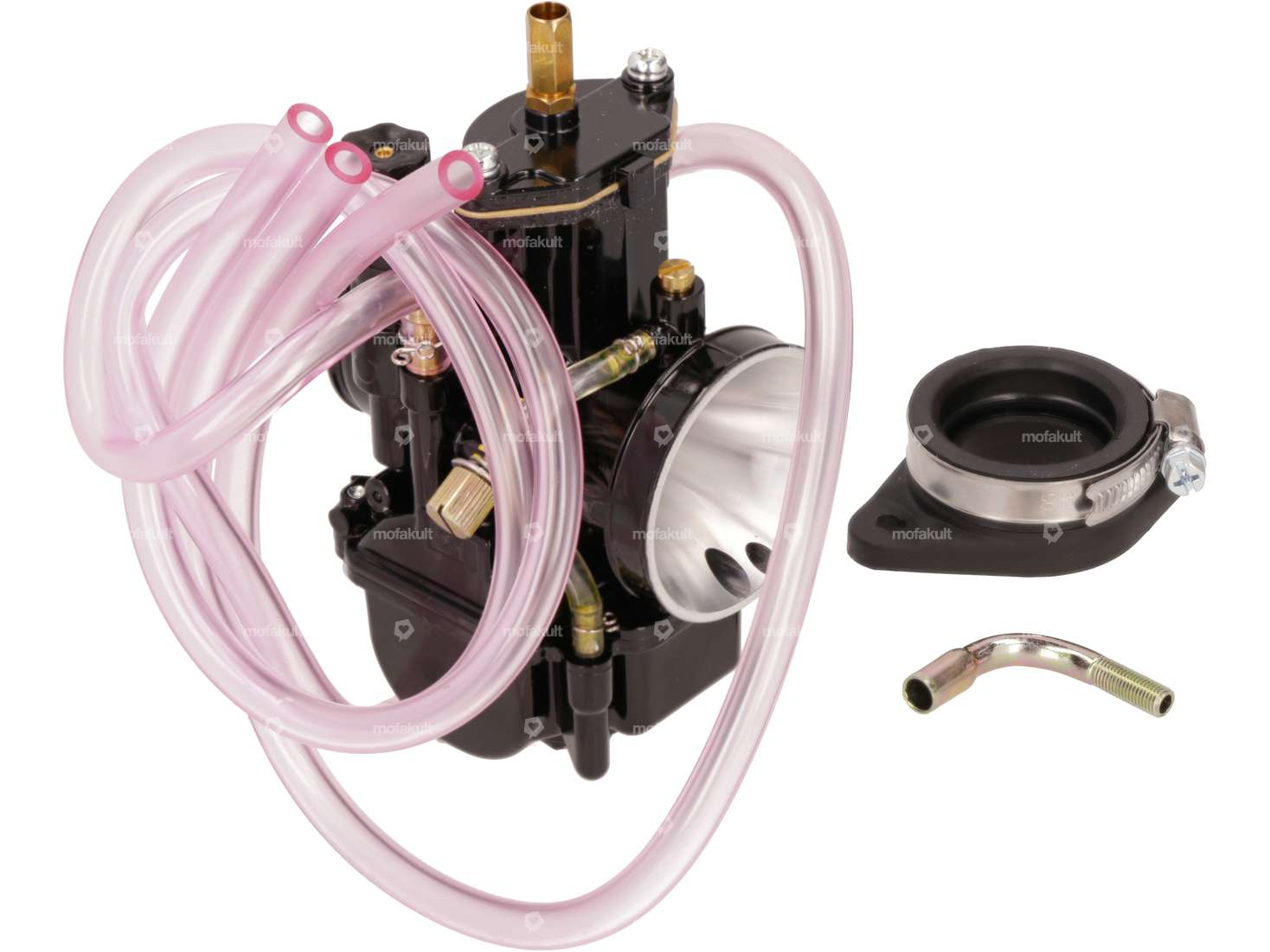

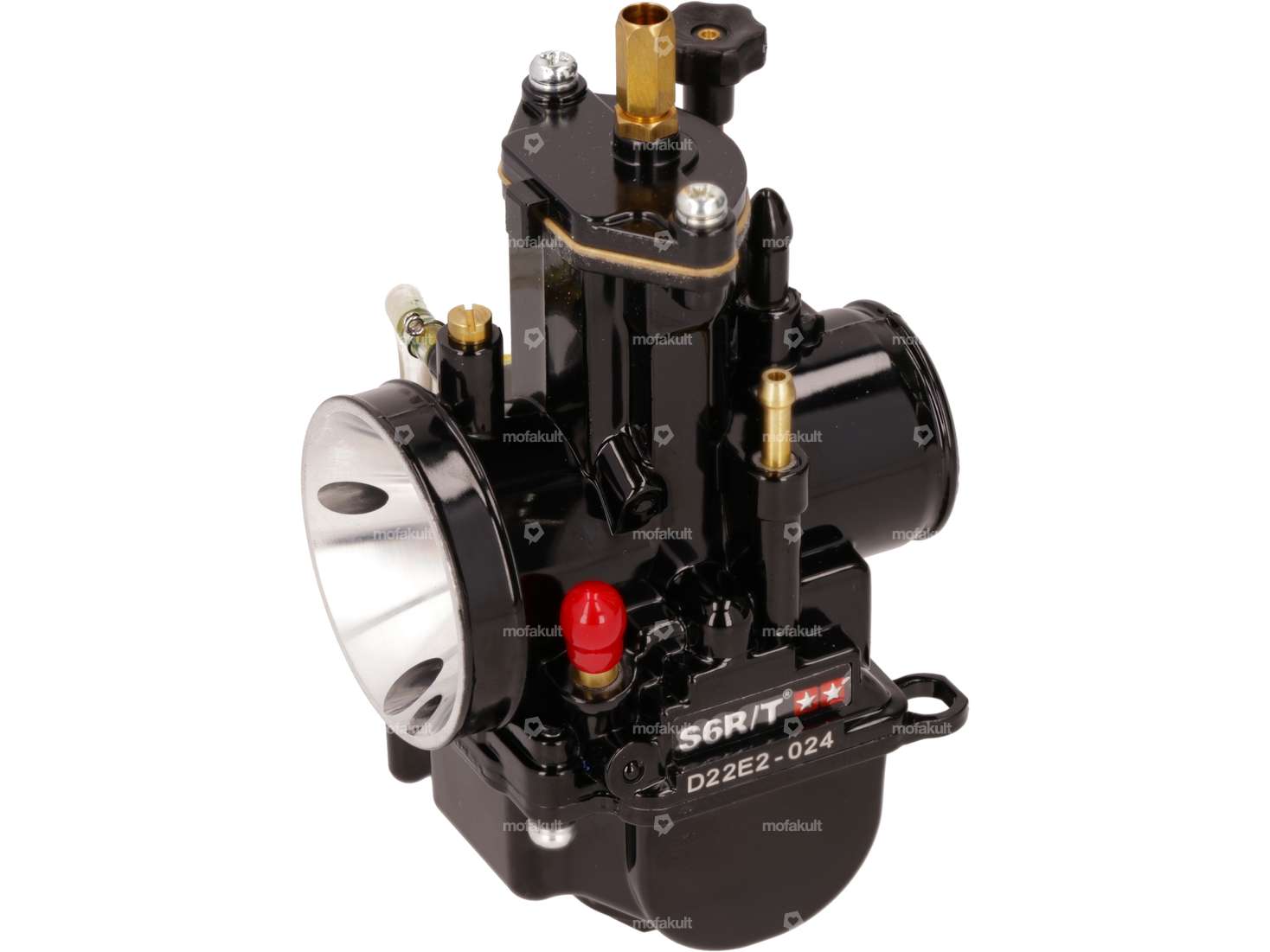

24 mm RT-PWK racing carburetor from tuning brand Stage6 incl. intake flange.
Specially suitable for large racing engines in conjunction with high-end tuning.
High-quality carburetor with top workmanship and stylish look.
Connection diameter of air filter: 50 mm
Connection diameter of intake flange: 36 mm

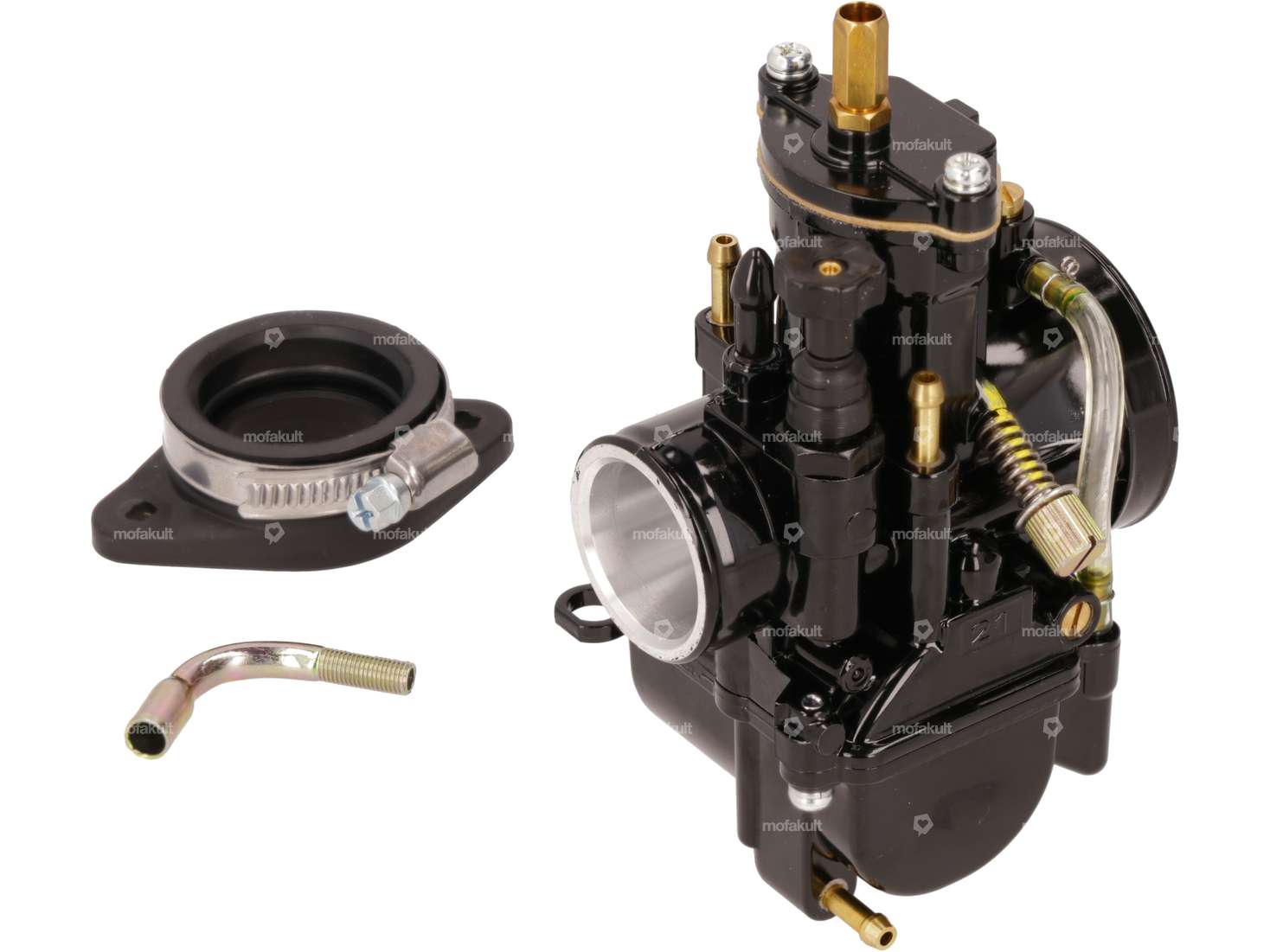

All individual parts shown in image 1 are included in the scope of delivery.
Quality product from the German manufacturer Stage6.
| Manufacturer | Stage6 R/T |
| Component group Carburetor | Carburetor complete |
| Surface | varnished |
| Color | black |
| Carburetor type | RT-PWK |
| Nominal diameter | 24 mm |
| Ø Air filter connection | 50 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Mounting type | Flange, Plug connection |
| Area of application | Tuning |
