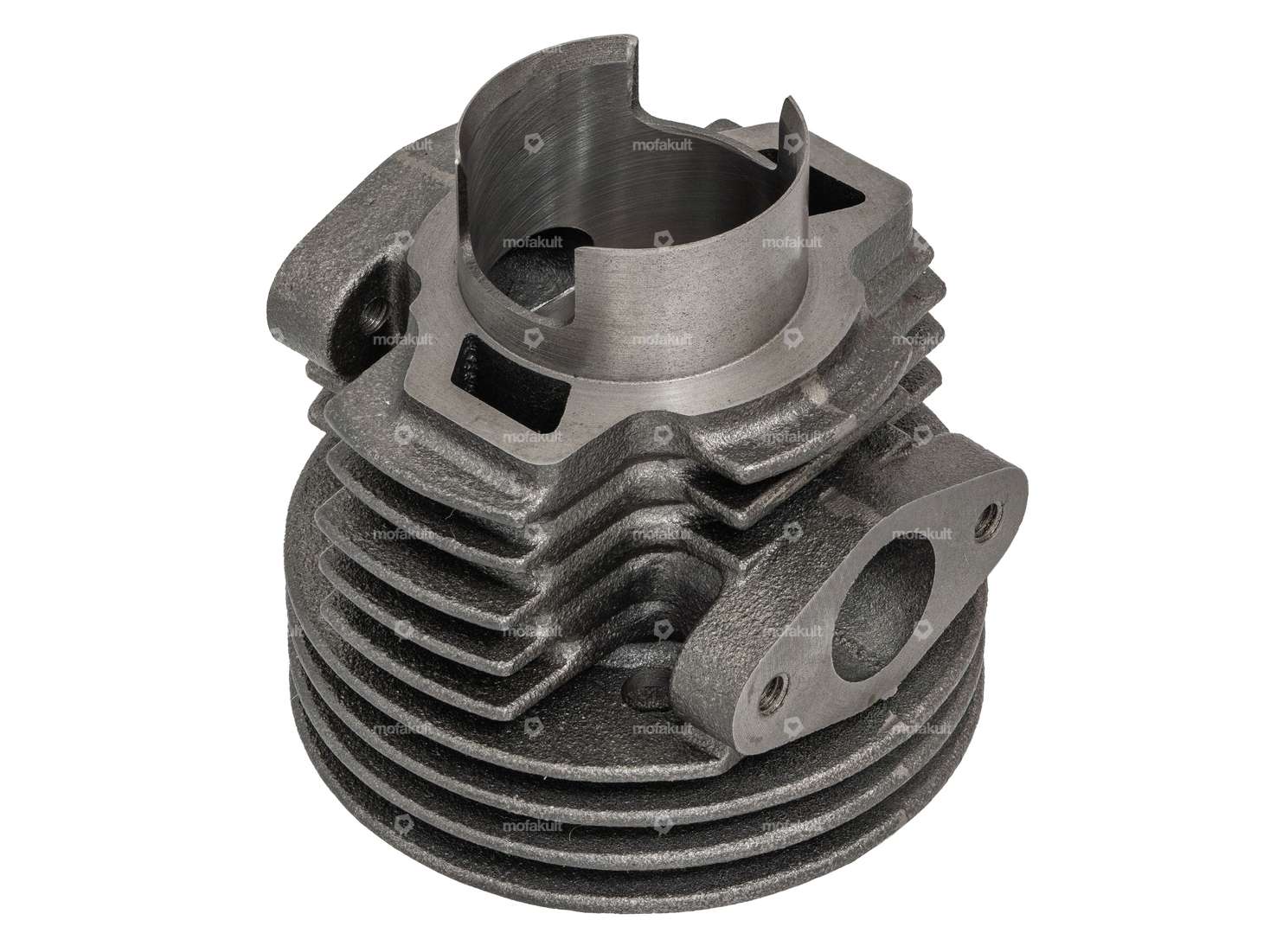

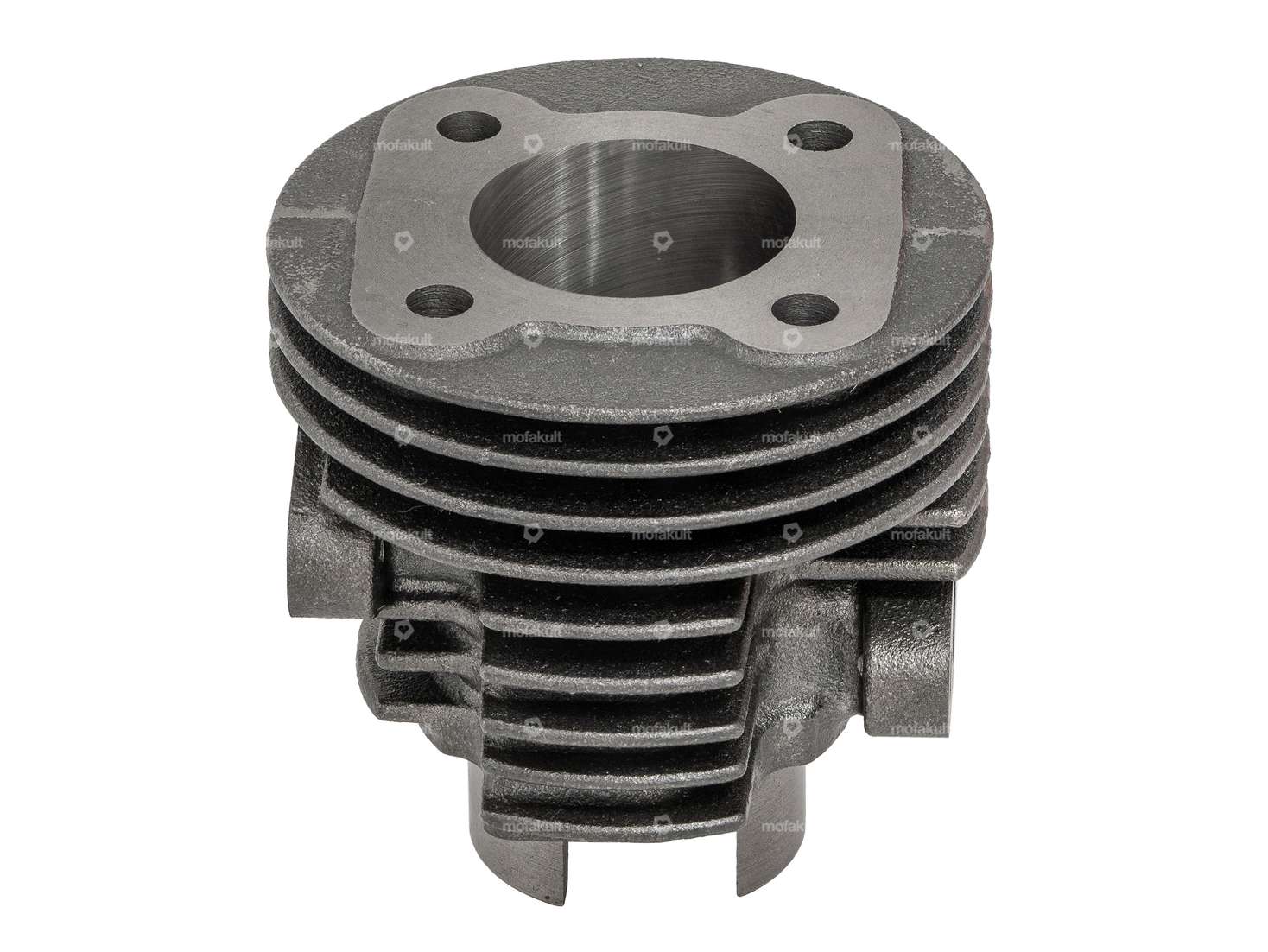

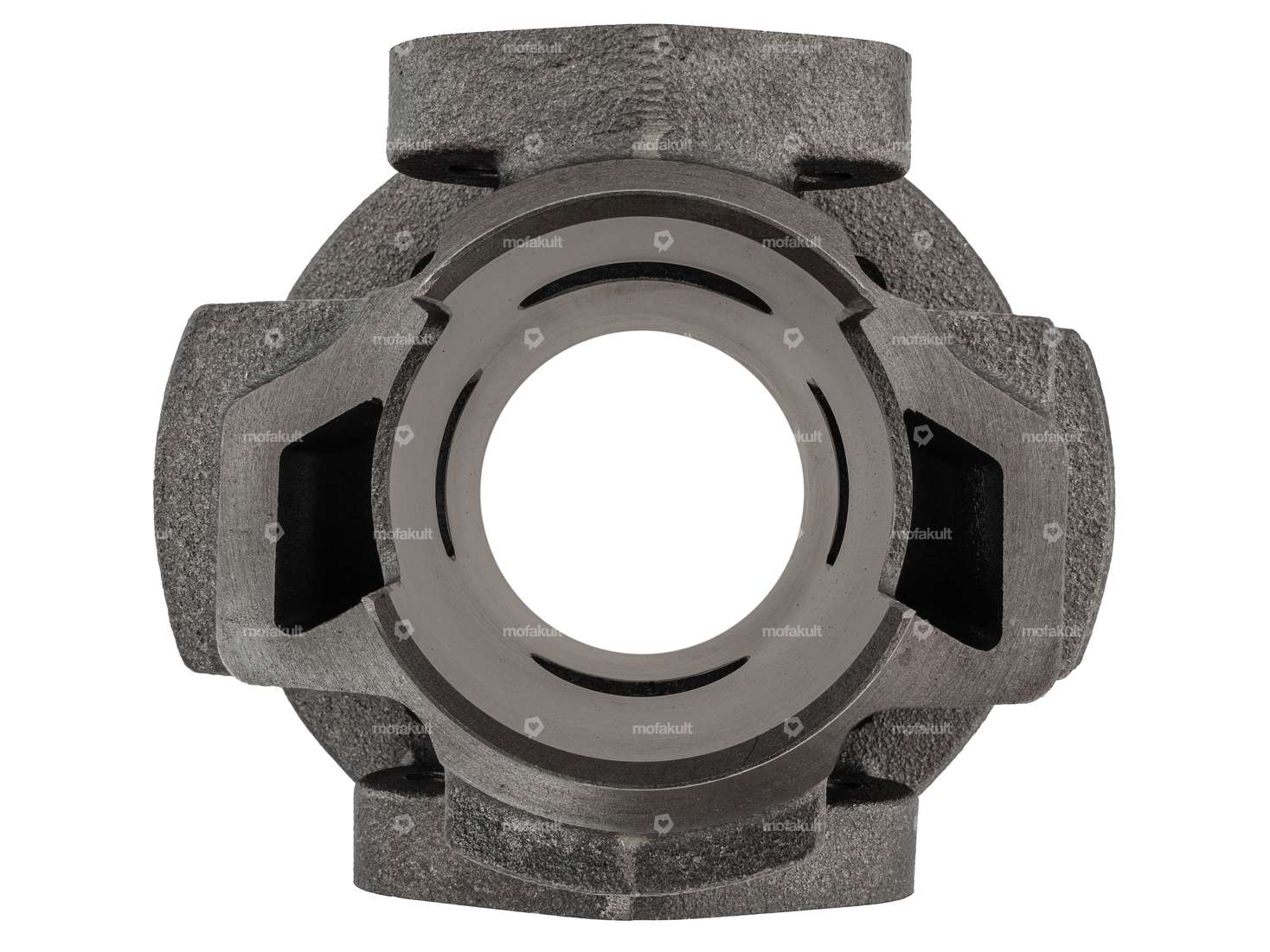

Bladed 40 mm cylinder kit with 12 mm piston pin for your Puch X30 Velux and Puch X30 NG-2AH moped / moped.

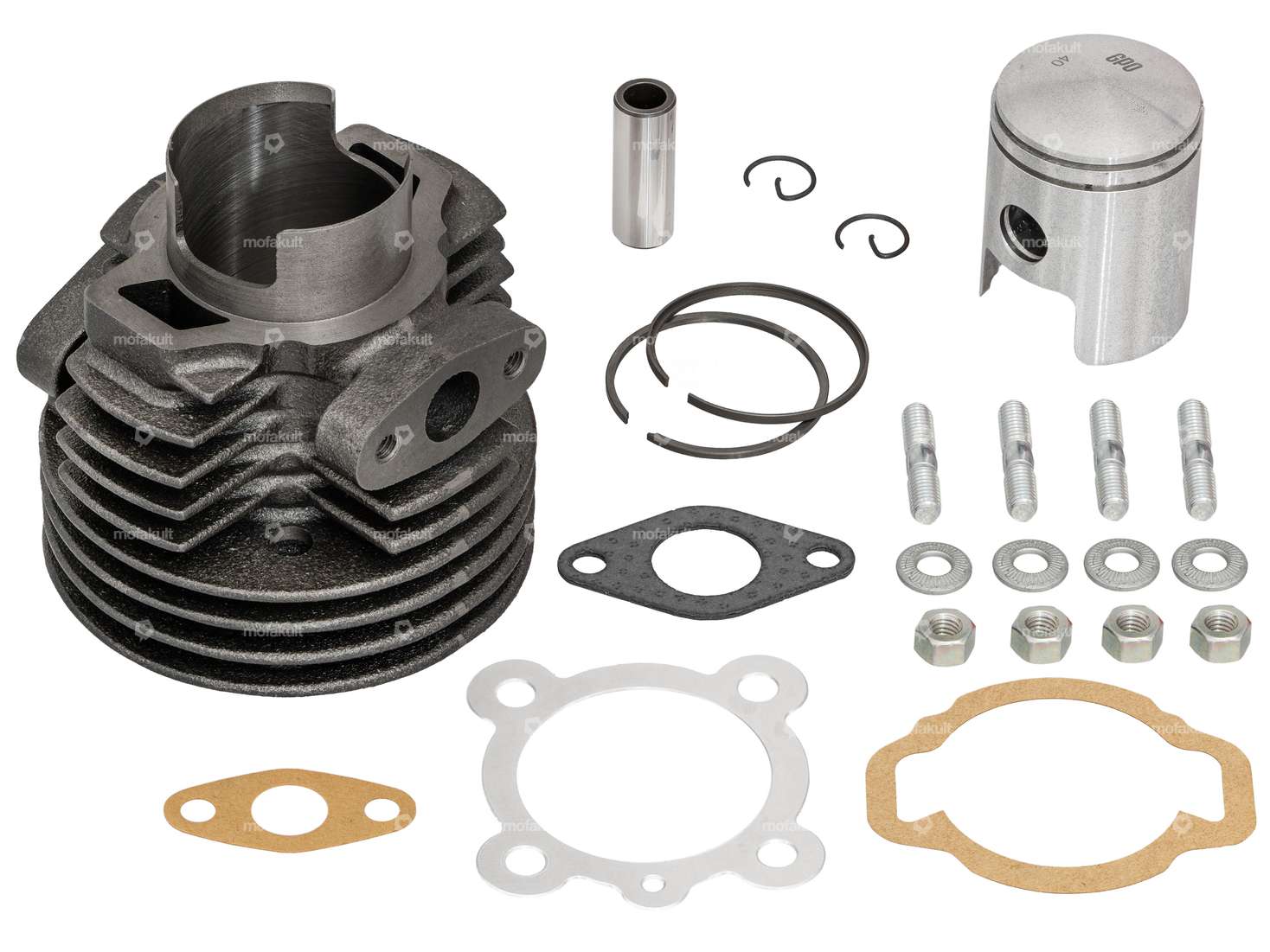

The racing cylinder kit without sealing includes cylinder, piston kit, gasket set and stud bolts.
Attention: For the Puch Velux engines, the small slot at the sealing surface to the cylinder must be filled so that the cylinder kit is tight.
We recommend using the Wekem 2K liquid metal for this purpose.
You can find the corresponding repair metal and other add-on parts such as cylinder head, exhaust system etc. in the accessories section.
Made by the quality brand swiing - swiss ingenious.
The set includes the following fixed parts:
Manufacturer: GPO · Nominal diameter: 40 mm · Ø outside piston (A): 39.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.5 mm · Curvature (D): 3.4 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring, Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 2 mm, 1.5 mm · Weight: 89 g
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Width across flats SW: 10 mm · Strength class: 10.9, 8 · Drive: External hexagon
Hole pattern [mm]: 44 x 44 mm · Manufacturer: GPO · Number of components: 4 pcs · Ø cylinder: 40 mm, 41 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Area of application: Tuning
Details
Manufacturer | swiing |
Material | Gray cast iron |
Area of application | Tuning |
Displacement | 55 ccm |
Crankshaft stroke | 43 mm |
Nominal diameter | 40 mm |
Surface | sandblasted |
Number of fixing points | 4 pcs |
Ø piston pin (B) | 12 mm |
Hole pattern [mm] | 44 x 44 |
Thread inlet | M6x1 (standard thread) |
Hole spacing inlet | 32 mm |
Hole spacing outlet | 42 mm |
Outlet type | straight |
Thread outlet | M6x1 (standard thread) |
Camouflaged | No |
Suitable for the following models
Puch | ZA50 (Gebläsegekühlt) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Accessories & related products

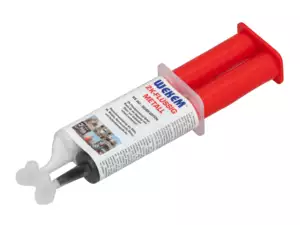

WEKEM 2K liquid metal
Manufacturer: WEKEM · Material to be used: Aluminum · Material to be used: Ceramics · Material to be used: Metal · Material to be used: Steel · Material to be used: Wood · Contents [ml]: 24 ml · Color: gray · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Temperature resistance (min.): -20 - 80 °C · Type of application: 2K · Alignment time: 240 sec · Area of application: Chemistry
22,20 EUR
444,00 EUR/kg

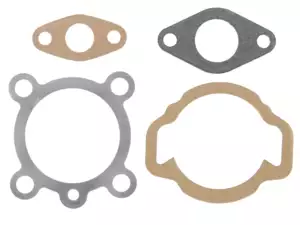

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
