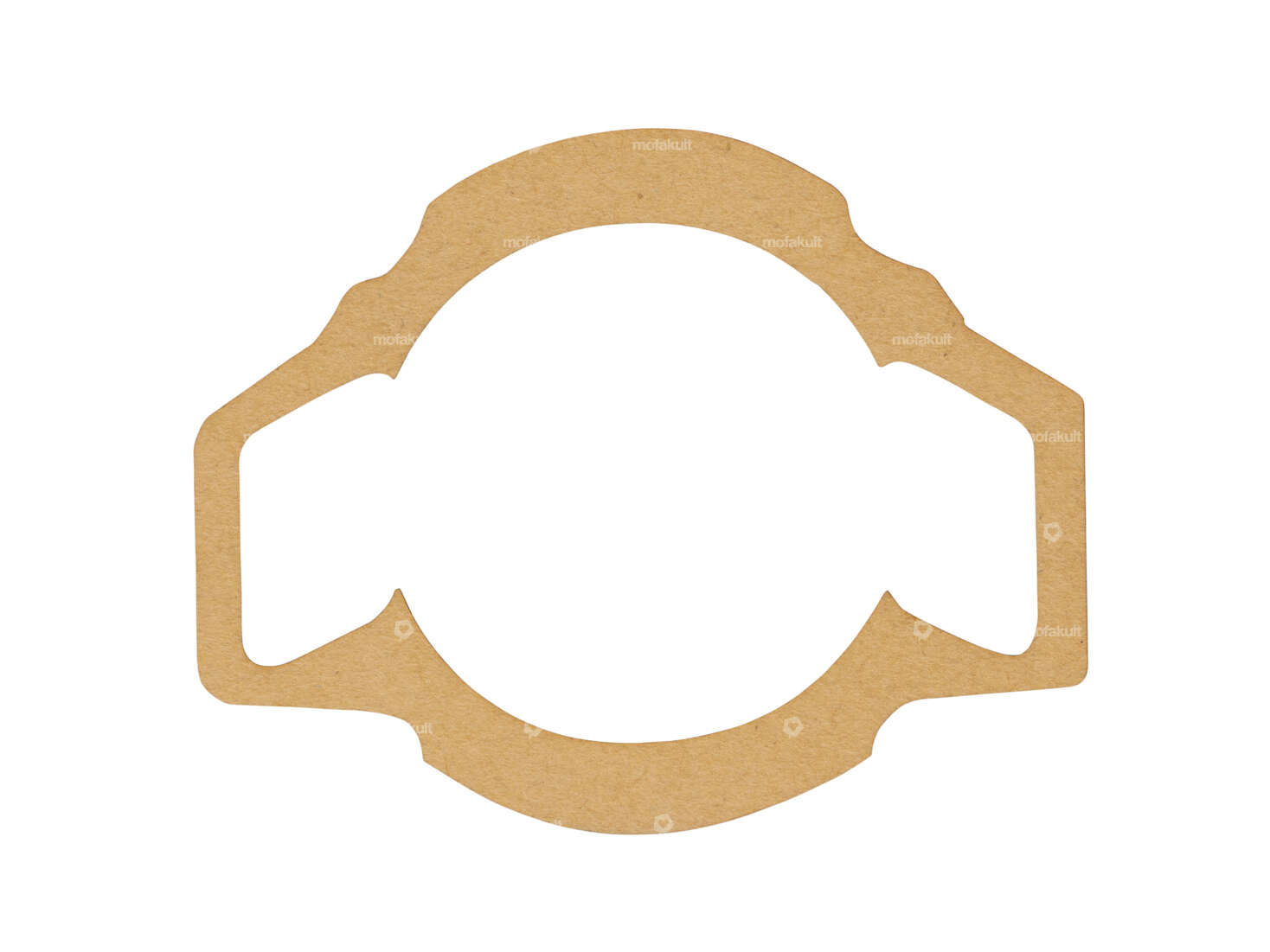

Foot gasket for the blower-cooled 40 mm racing kit suitable for Puch X30 Velux and Puch X30 NG-2AH mopeds
Thickness of the foot gasket: 0.45 mm
Material: Oil paper
Note: This cylinder gasket is perfect for the 40 mm tuning cylinders in the accessories.
If you are running a 40 or 41 mm cast iron cylinder, you can also use the base gasket 20531, which offers a little more sealing surface around the overflow channels.
Attention: With Velux engines, the small slit in the sealing surface must be cast onto the cylinder so that the cylinder kit is tight.
We recommend using Wekem 2K liquid metal for this purpose. You can find this and other selected products in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
| Thickness | 0.45 mm |
| Manufacturer | swiing® revival parts |
| Material | Oiled paper |
| Ø cylinder | 40 mm |
| Place of use | Cylinder base |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
