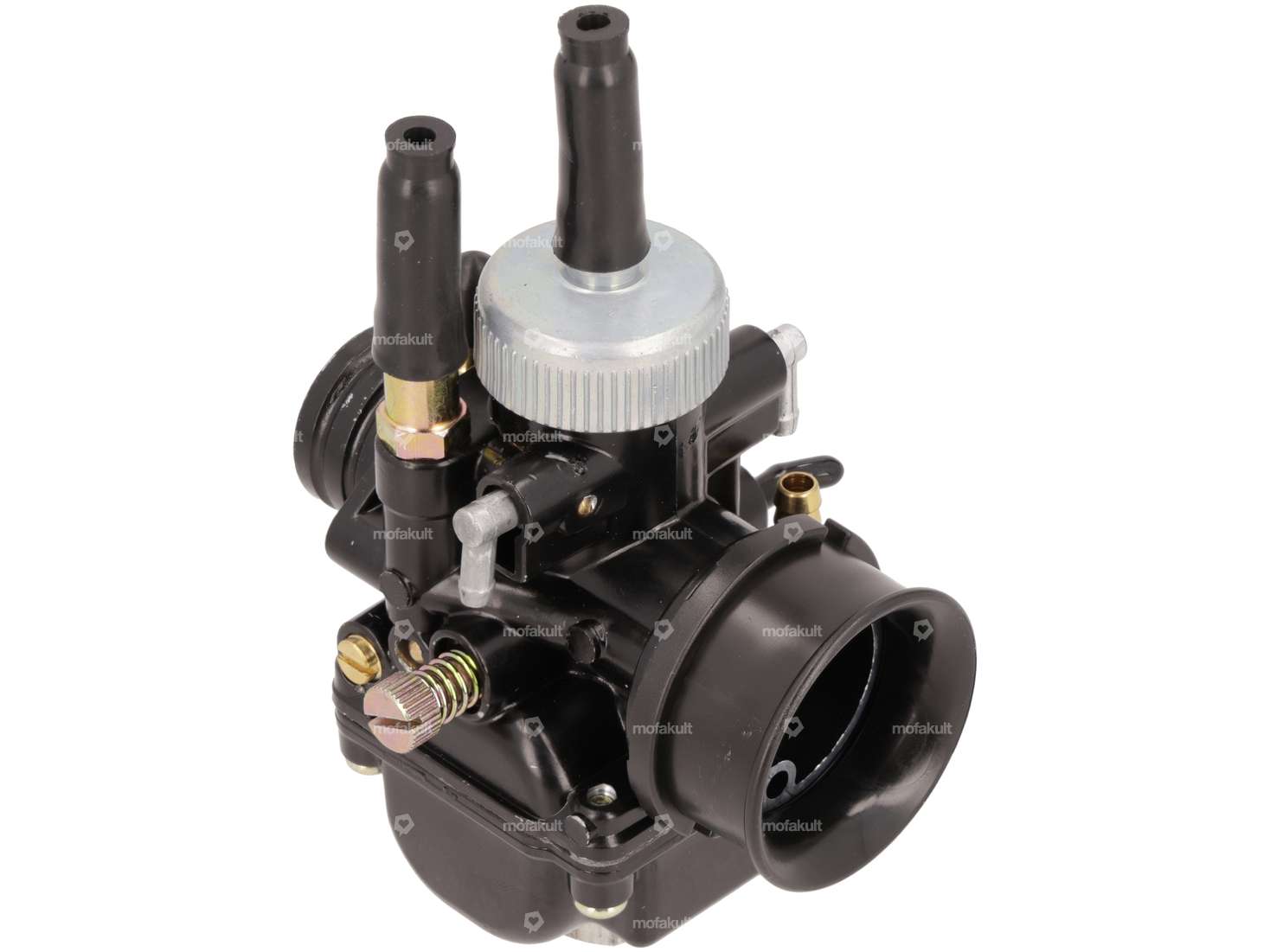

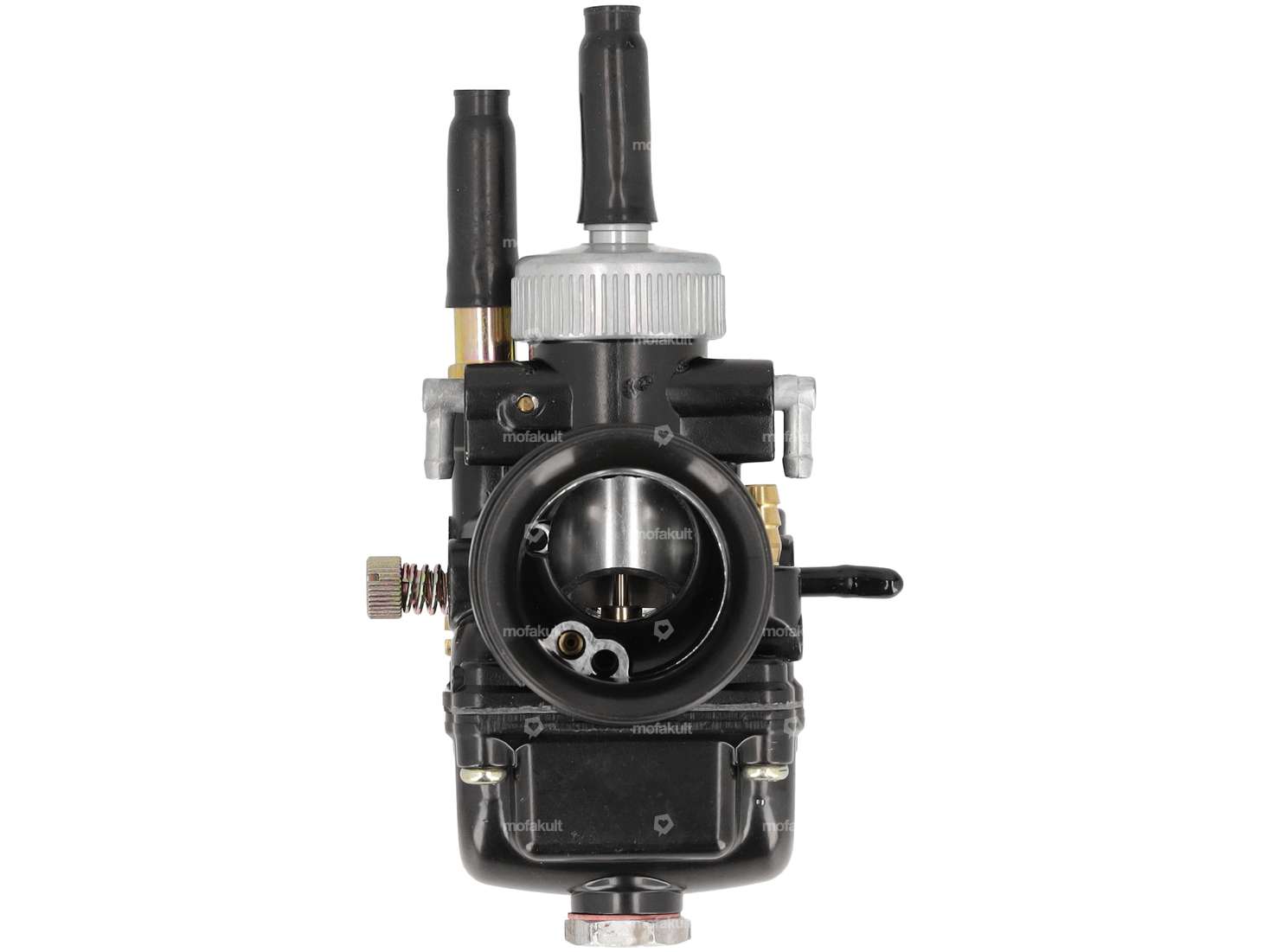

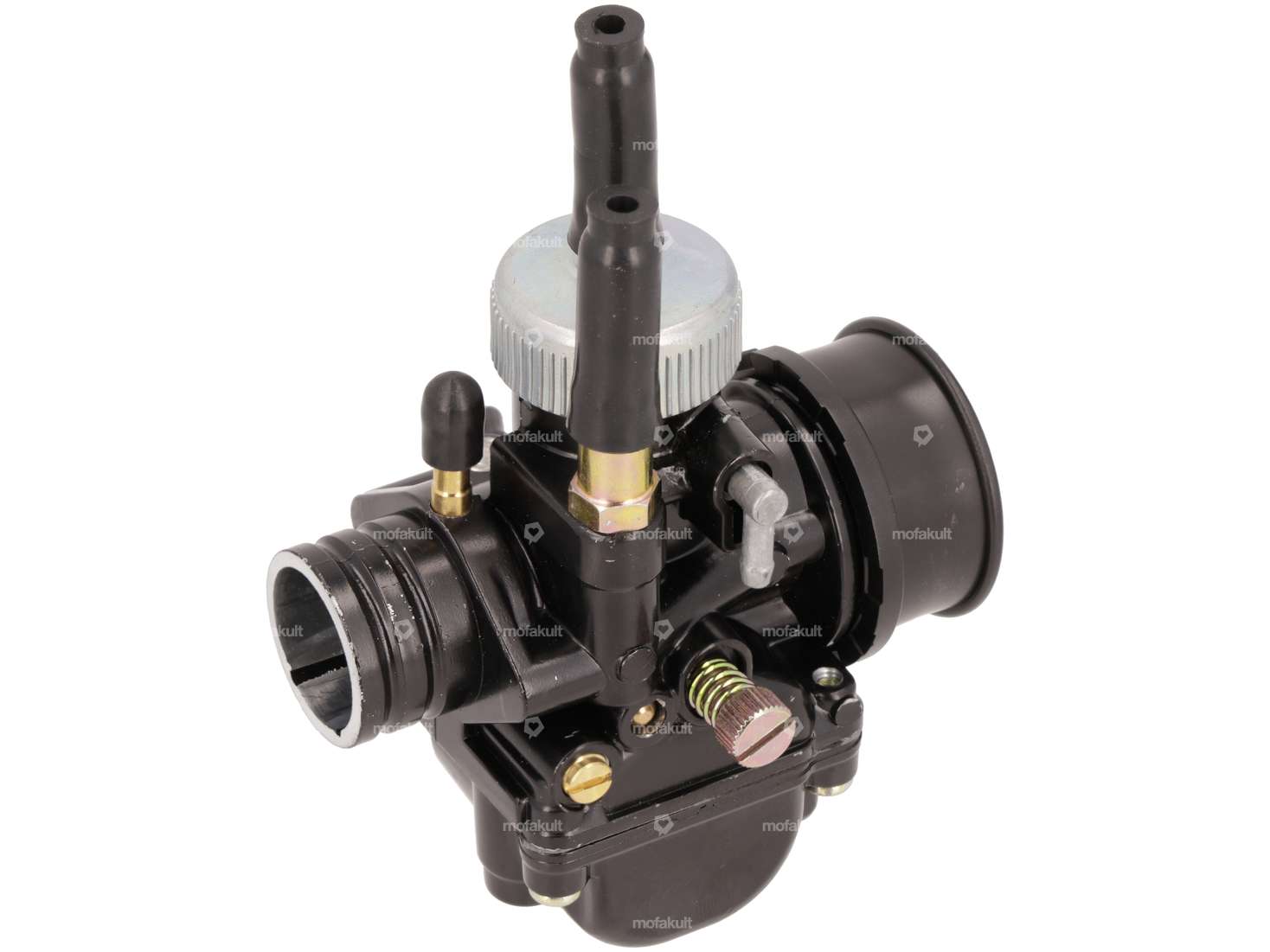

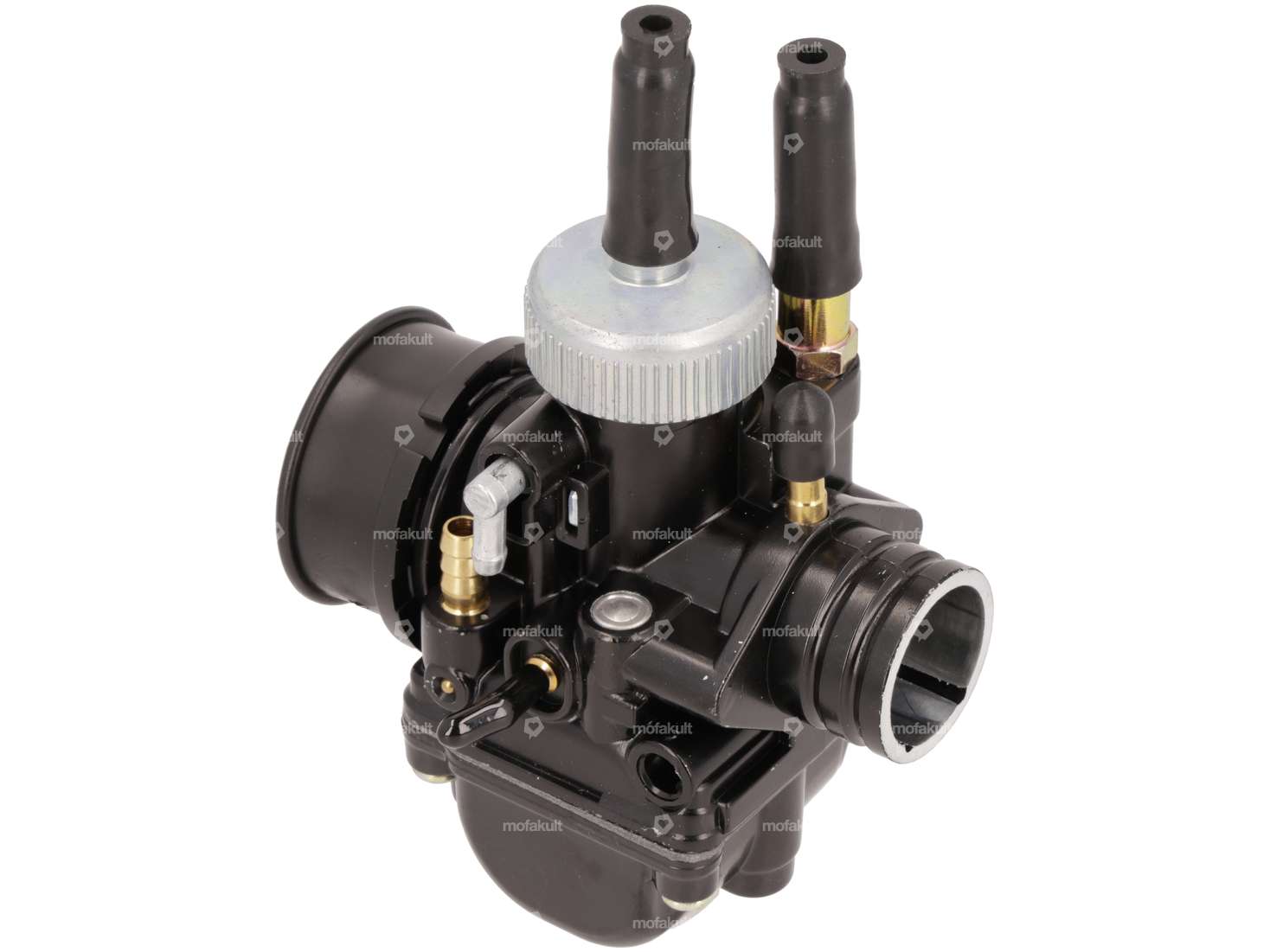

21 mm Racing carburetor PHBG (Dell'Orto replica) black

Dell'Orto gasket set carburetor PHBG

Manufacturer: Dell'Orto · Component group Carburetor: Sealing, revising · Carburetor type: PHBG

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110

Dell'Orto 19 mm PHBG DS carburetor cable choke - Black Edition

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Surface: varnished · Area of application: Tuning · Color: black · Nominal diameter: 19 mm · Width: 85 mm · Carburetor type: PHBG DS · Ø fuel hose connection: 6 mm · Height: 130 mm · Nozzle size: 75 · Mounting type: Plug connection · Ø Air filter connection: 32 mm · Ø Air filter connection: 38 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: Yes · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Size of secondary nozzle: 45

Dell'Orto hand choke lever PHBG

Manufacturer: Dell'Orto · Component group Carburetor: Choke control · Carburetor type: PHBG · Choke control: Hand choke

Petrol hose Ø 6 / 11 mm textile black 30 cm

Material: Textile · Color: black · Total length: 300 mm · Ø outside: 11 mm · Ø inside: 6 mm

Dell'Orto secondary nozzle PHBG (size 30 - 70) of your choice

Manufacturer: Dell'Orto · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Nozzle type: Secondary nozzle · Nozzle size: 30 · Nozzle size: 35 · Nozzle size: 40 · Nozzle size: 45 · Nozzle size: 50 · Nozzle size: 55 · Nozzle size: 60 · Nozzle size: 65 · Nozzle size: 70 · Drive: Slot

Quick-release fastener fuel hose connection 6 mm

Color: black · Ø outside: 5 mm · Ø outside: 8 mm

Polini air filter 90° Air Box Ø 32 mm

Manufacturer: Polini · Camouflaged: No · Color: black · Color: blue · Filter type: Foam · Total length: 140 mm · Angle: 90 ° · Ø Internal connection: 32 mm · Mounting type: Plug connection clamped · Area of application: Tuning

Naraku auxiliary nozzle set M5 (30-50) PHBG / PHBD

Manufacturer: Naraku · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: Dell'Orto · Carburetor type: PHBG · Carburetor type: PHBG AD · Carburetor type: PHBG AS · Carburetor type: PHBG BD · Carburetor type: PHBG CS · Carburetor type: PHBG DS · Nozzle type: Secondary nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 45 · Nozzle size: 48 · Nozzle size: 50 · Total length: 9.5 mm · Drive: Slot

Polini 43.5 mm cylinder kit reed | Puch

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Surface: Nickel silicon carbide (known as Nikasil®) · Crankshaft stroke: 43 mm · Nominal diameter: 43.5 mm · Displacement: 65 ccm · Area of application: Racing · Area of application: Tuning · Ø piston pin (B): 12 mm · Ø cylinder neck: 48 mm · Inlet window: 26 x 21 · Thread inlet: M5x0.8 (standard thread) · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs

Large outlet seal with metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Area of application: Tuning · Thickness: 2.1 mm · Hole spacing outlet: 42.5 mm

Dell'Orto hand choke lever PHBG

Manufacturer: Dell'Orto · Component group Carburetor: Choke control · Carburetor type: PHBG · Choke control: Hand choke

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Ø mounting hole: 6.7 mm · Ø inside: 22 mm · Thickness: 2 mm · Hole spacing: 38 - 42.5 mm · Number of fixing points: 2 pcs

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Number of components: 3 pcs · Material: Plastic · Material: Steel · Area of application: Standard

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Ø coupling pin / vario pin: 12 mm · Thread type: M8x1.25 (standard thread) · Ø piston pin (B): 12 mm · Total length crankpin ignition side: 91.5 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Area of application: Racing · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Number of gears: 1 pcs

Simonini exhaust Thunder Carbon | Piaggio Ciao, Bravo

Manufacturer: Simonini · Material: Steel · Surface: varnished · Number of fixing points: 1 pcs · Exhaust type: Cone / double cone · Mounting type: Welded lug · Flame tube attachment: Plug connection clamped

Malossi Multivar Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Number of weights: 6 pcs · Weight Standard weights: 6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm · Gearbox type: Vario

Lamp glass Ø 130 mm

Manufacturer: Made in Italy · Material: Plastic · Test mark: none · Color: white · Ø outside: 135 mm · Ø External connection: 130 mm · Depth: 28 mm

swiing® ingenious gasket set 44 - 45 mm cylinder | Puch

Manufacturer: swiing® ingenious parts · Hole spacing inlet: 38 mm · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Tuning · Decompressor: Yes
