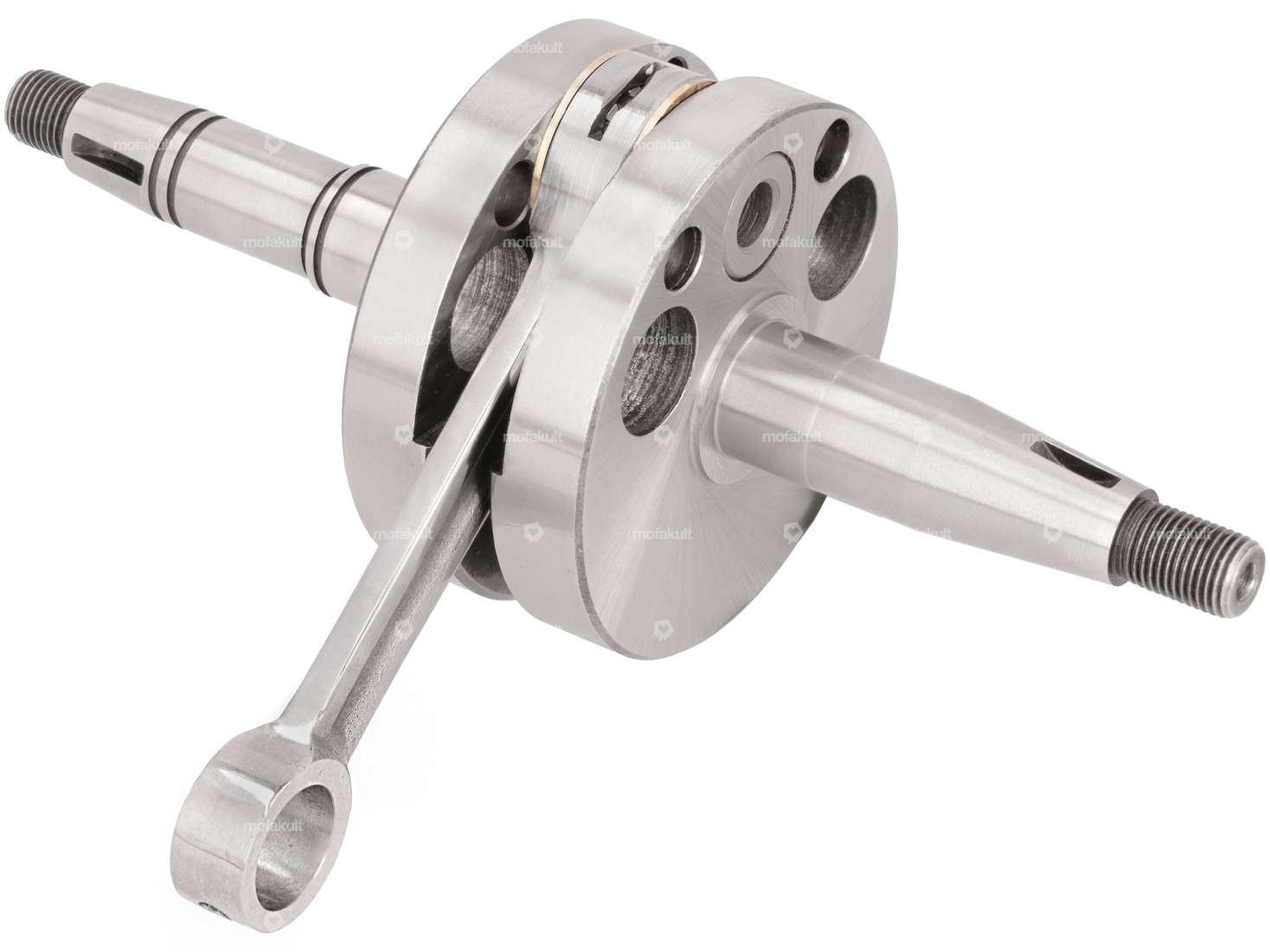

ADDY crankshaft full cheeks 46 mm stroke | Puch E50

Oil seal NBR 22/40/7 AS crankshaft | E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm · Ø outside: 40 mm · Ø inside: 22 mm · Place of use: Crankshaft

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

swiing® revival crankshaft "Original" | Puch Sport X30 NS, NL / Maxi S2

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Weight: 892 g · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 7 mm · Thread length: 13 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Area of application: Standard · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 2 pcs

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Weight: 968 g · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Area of application: High End · Area of application: Racing · Area of application: Tuning · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

swiing® ingenious mounting aid for crankshaft oil seal (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Special tool

DMP crankshaft "Original" | Puch E50

Manufacturer: DMP · Material: Steel · Cheek type: standard · Weight: 873 g · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread type: MF10x1 (fine pitch thread) · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Area of application: Standard · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Thread length: 14.5 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm

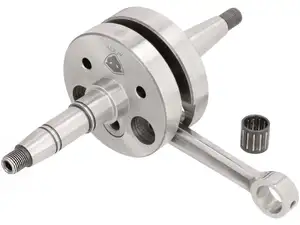

ADDY crankshaft full cheeks 33.5 mm stroke | Puch E50

Manufacturer: ADDY · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 33.5 mm · Connecting rod length center-center: 90 mm · Thread type: MF10x1 (fine pitch thread) · Number of gears: 1 pcs · Total length of crankpin on clutch side: 66.6 mm · Total length crankpin ignition side: 73.7 mm · Area of application: Tuning · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 921 g · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10.5 mm · Dimension needle bearing: 12 / 15 x 14.6 (axe 12) · Thread length: 14.5 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 15.1 mm · Length 3rd paragraph: 25.5 mm · Ø 1st step (on the coupling side): 21.9 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 14.9 mm · Length of shoulder (ignition side): 26.3 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø Pin: 3.94 mm · Ø bore: 4 mm

GPO sprocket 14 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Recording type: Interlocking · Number of teeth: 14 pcs · Total thickness: 4.6 mm

swiing® revival engine revision set (old model) | Puch E50

Manufacturer: NSK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Standard

MBR 0.5 mm lifting plate Gilardoni italkit Inox | Puch

Manufacturer: Wössner · Material: Chrome steel (colloquially known as stainless steel) · Place of use: Cylinder base · Thickness: 0.5 mm · Ø cylinder: 47 mm · Area of application: Tuning

PVL ignition coil analog 105458 / 458115

Manufacturer: PVL · Color: black · Place of use: External (outside the ignition) · Mounting type: Screws · Ø mounting hole: 6 mm · Number of fixing points: 2 pcs · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning

PVL stator "1443" ignition

Manufacturer: PVL · Material: Aluminum · Number of cables: 2 pcs · Color: black · Number of fixing points: 3 pcs · Area of application: High End · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning

swiing® ingenious degree disk moped | Bosch, Ducati, EVO, HPI, MVT, PVL, Selettra

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Thickness: 1 mm · Area of application: Measuring tool
