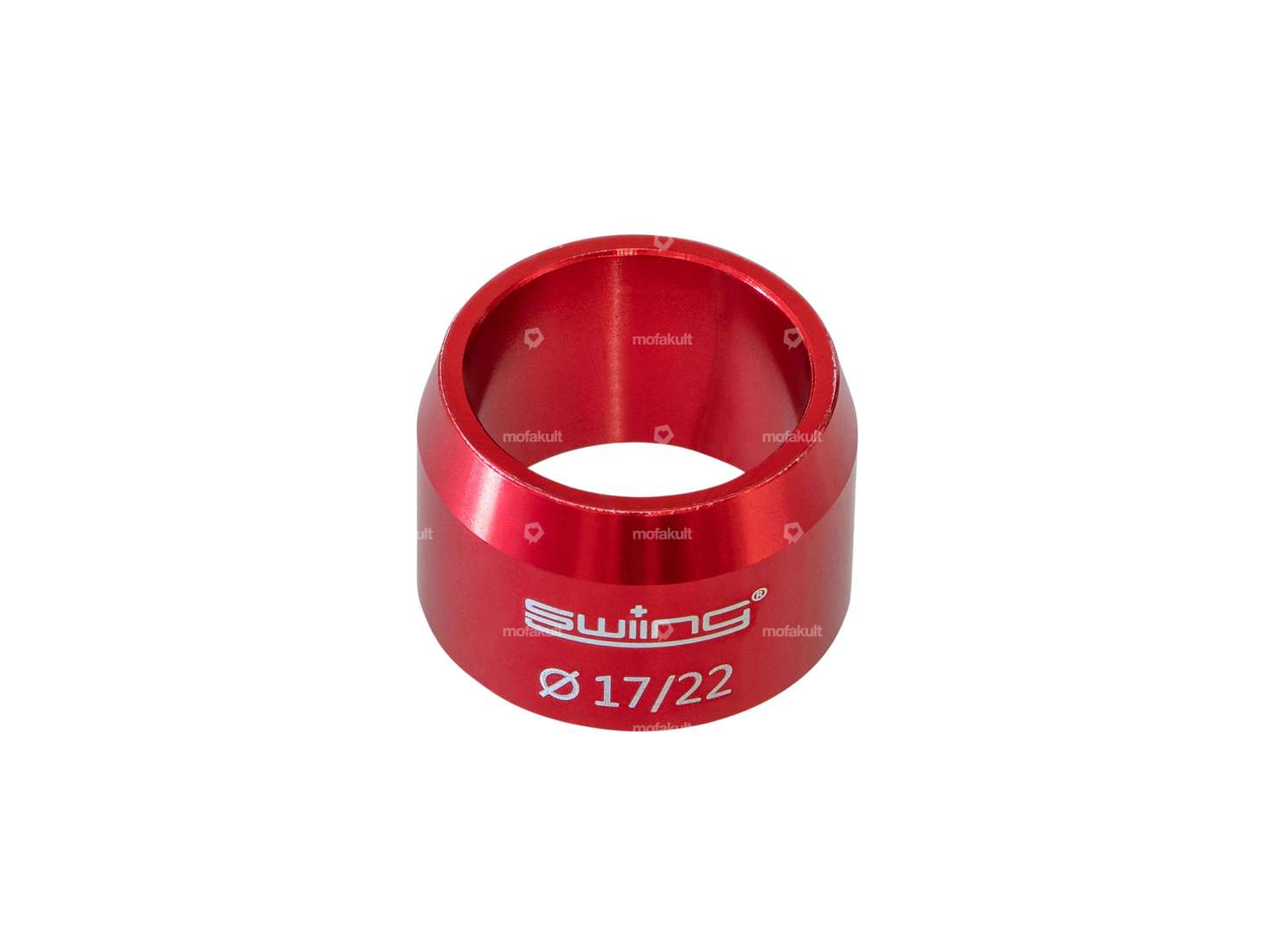

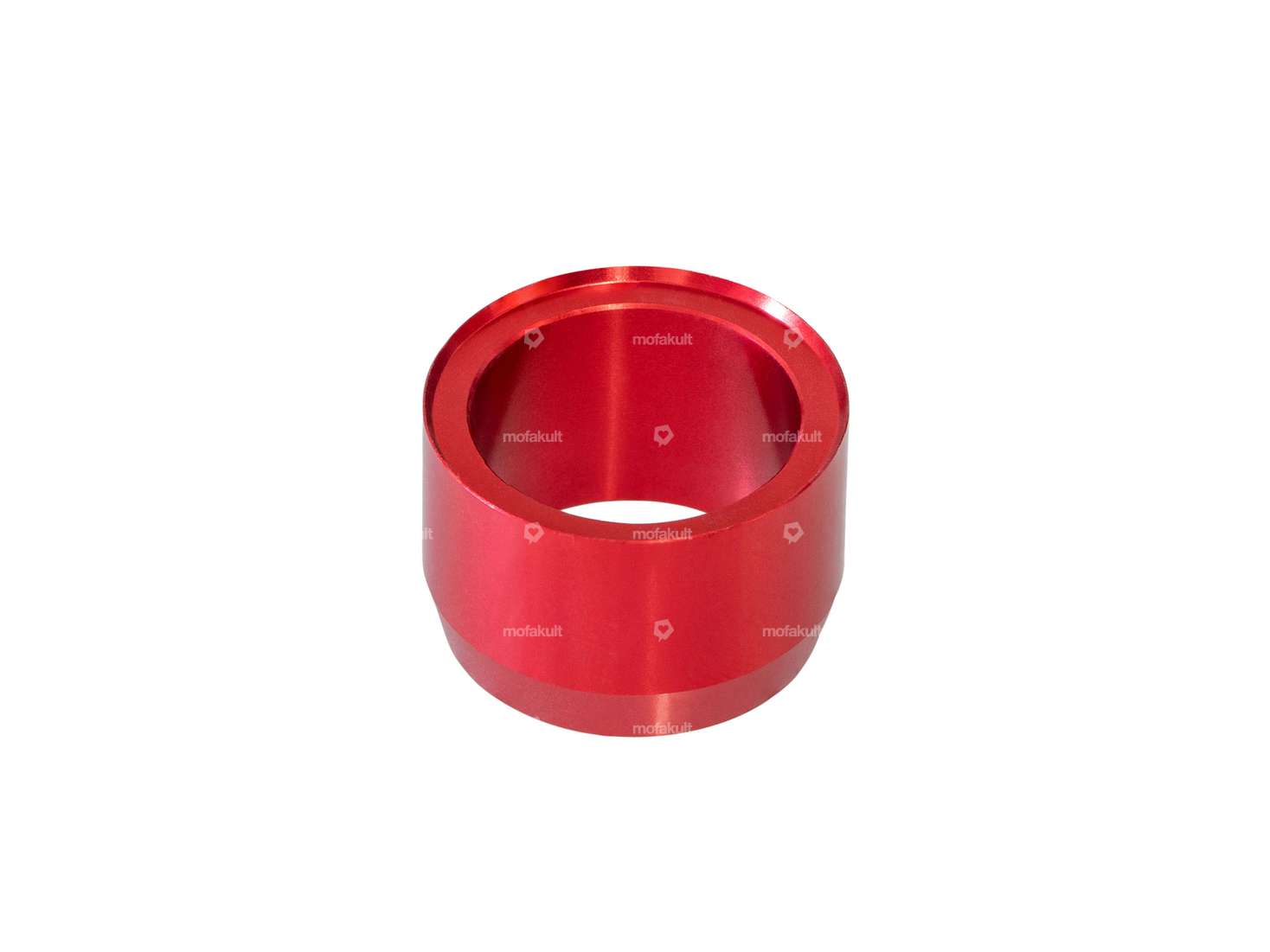

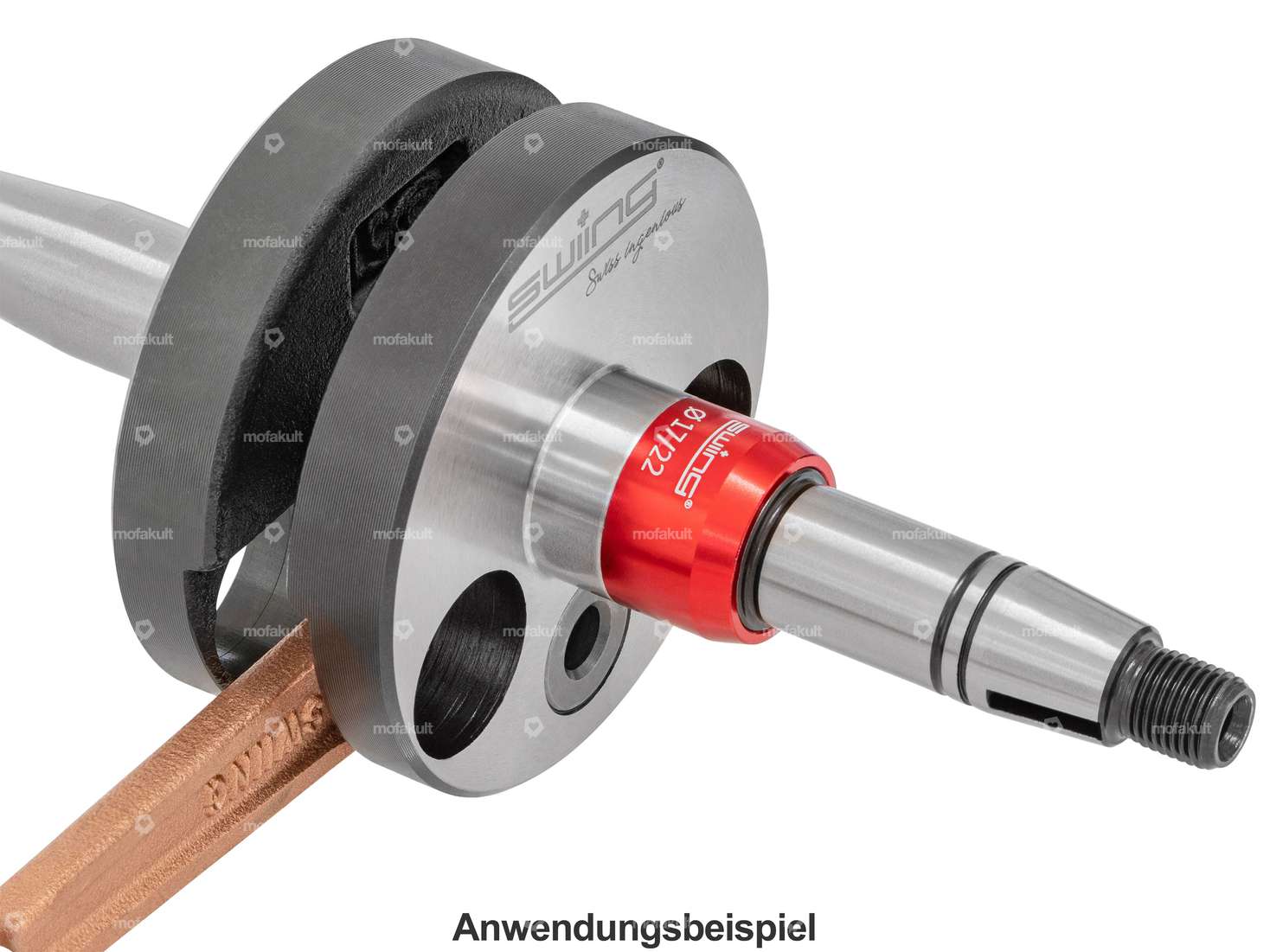

swiing® ingenious mounting aid for crankshaft oil seal (old model) | Puch E50

Rito Crankshaft Racing | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: Racing · Area of application: Tuning

swiing® revival crankshaft "Original" | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Area of application: Standard

swiing® ingenious crankshaft "High End" | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Area of application: High End · Area of application: Racing · Area of application: Tuning · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Weight: 968 g · Number of gears: 1 pcs

swiing® ingenious crankshaft "High End" (+1 mm stroke) | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Area of application: High End · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs

swiing® ingenious crankshaft oil seal assembly aid | Sachs 50/2, 50/3, 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 15 mm · Number of components: 1 pcs · Area of application: Special tool

swiing® ingenious crankshaft oil seal assembly aid | Puch X30 Sport / Velux Z50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 15 mm · Ø outside: 17 mm · Total length: 10 mm · Number of components: 1 pcs · Area of application: Special tool

swiing® ingenious mounting aid shaft seal ring gear wheel | Puch E50

Number of components: 1 pcs · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø outside: 17 mm · Ø inside: 16.5 mm · Area of application: Special tool

swiing® ingenious crankshaft oil seal assembly aid | Puch ZA50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 19 mm · Ø outside: 20 mm · Height: 15 mm · Number of components: 1 pcs · Area of application: Special tool

swiing® ingenious assembly aid pinion shaft | Sachs 50/2, 503

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 15.5 mm · Total length: 20 mm · Area of application: Special tool

Ignition rubber | Puch E50

Waistband height: 2.5 mm · Material: Rubber · Total height: 15 mm · Color: black · Ø inside 2: 5 mm · Total length: 30.3 mm · Ø inside: 2.5 mm · Width: 15 mm · Height: 11 mm

16 mm circlip

Fuse type: Outside · Material: Spring steel · Place of use: Universal · Nominal diameter: 16 mm

swiing® revival bearing press-on sleeve | Puch, Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø inside: 17.6 mm · Ø outside: 25 mm · Nominal diameter inside: 17.5 mm · Total length: 86 mm

15 mm circlip clutch basket E50 engine

Nominal diameter: 15 mm · Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Ø inside: 13.8 mm · Place of use: Clutch · Ø outside: 17 mm · Thickness: 0.95 mm

17 mm circlip E50 & ZA50 engine

Fuse type: Outside · Manufacturer: Puch · Material: Spring steel · Surface: gas nitrided · Place of use: Clutch · Thickness: 0.9 mm · Nominal diameter: 17 mm · Ø outside: 19.2 mm · Ø inside: 15.6 mm

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50

Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM - Fluororubber · Surface: rubberized · Ø inside: 22 mm · Place of use: Crankshaft · Ø outside: 40 mm · Width: 7 mm

swiing® revival crankshaft holder (for mounting the bearings)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Special tool · Thickness: 6 mm · Width: 80 mm · Height: 130 mm

Oil seal FPM 17/40/7 DUO | Puch E50

Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM - Fluororubber · Surface: rubberized · Ø outside: 40 mm · Ø inside: 17 mm · Temperature resistance (min.): -30 - 200 °C · Width: 7 mm · Area of application: Standard

Circlip 17 mm Inox

Fuse type: Outside · Material: Chrome steel (known as Nirosta®) · Place of use: Universal · Nominal diameter: 17 mm

swiing® ingenious mounting aid shaft seal ring gear wheel | Puch E50

Number of components: 1 pcs · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø outside: 17 mm · Ø inside: 16.5 mm · Area of application: Special tool
