logo_airsal

For: Sachs

24540

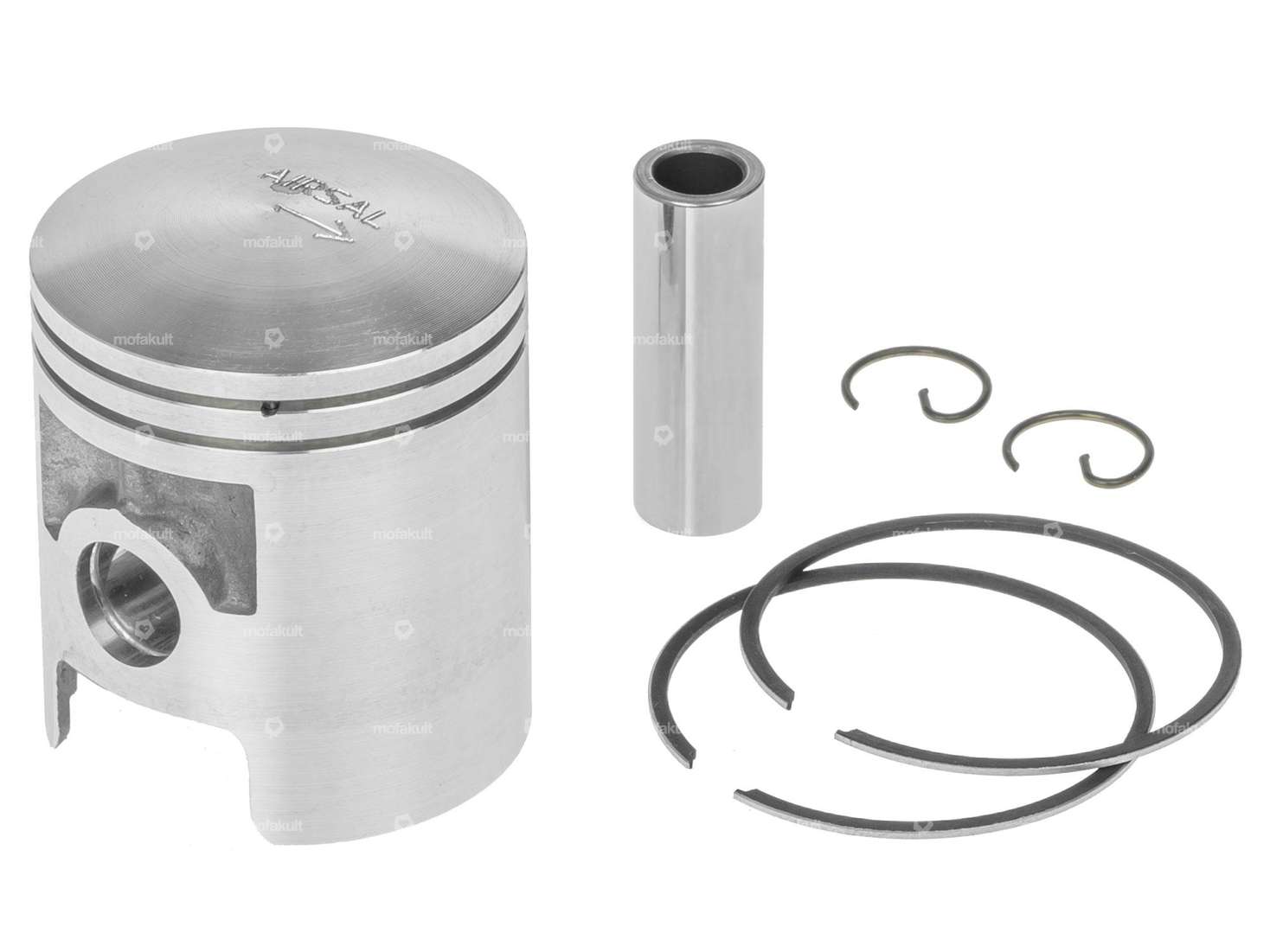

Airsal piston 43.5 mm | Sachs 504 / 505

rating iconrating iconrating iconrating iconrating icon
No reviews
58,20 EUR

Incl. 19% VAT.

Description

43.5 mm replacement piston with two 1 mm rectangular piston rings with internal fuse (IS) to fit the cylinder kit for Sachs 504 and 505 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

43.5 mm Airsal piston kit

43.5 mm Airsal piston kit

18420

Nominal diameter: 43.5 mm · Weight piston kit: 97 g

Nominal diameter43.5 mm
ManufacturerAirsal
Ø outside piston (A)43.5 mm
Compression height (C)25.8 mm
Curvature (D)4.25 mm
Total piston height (E)52.2 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1 mm
Ø piston pin (B)12 mm
Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT) , 2A (HG)

508 - 1 A

535
