Airsal piston 44 mm one ring | Puch

58,20 EUR

Incl. 19% VAT.

Description

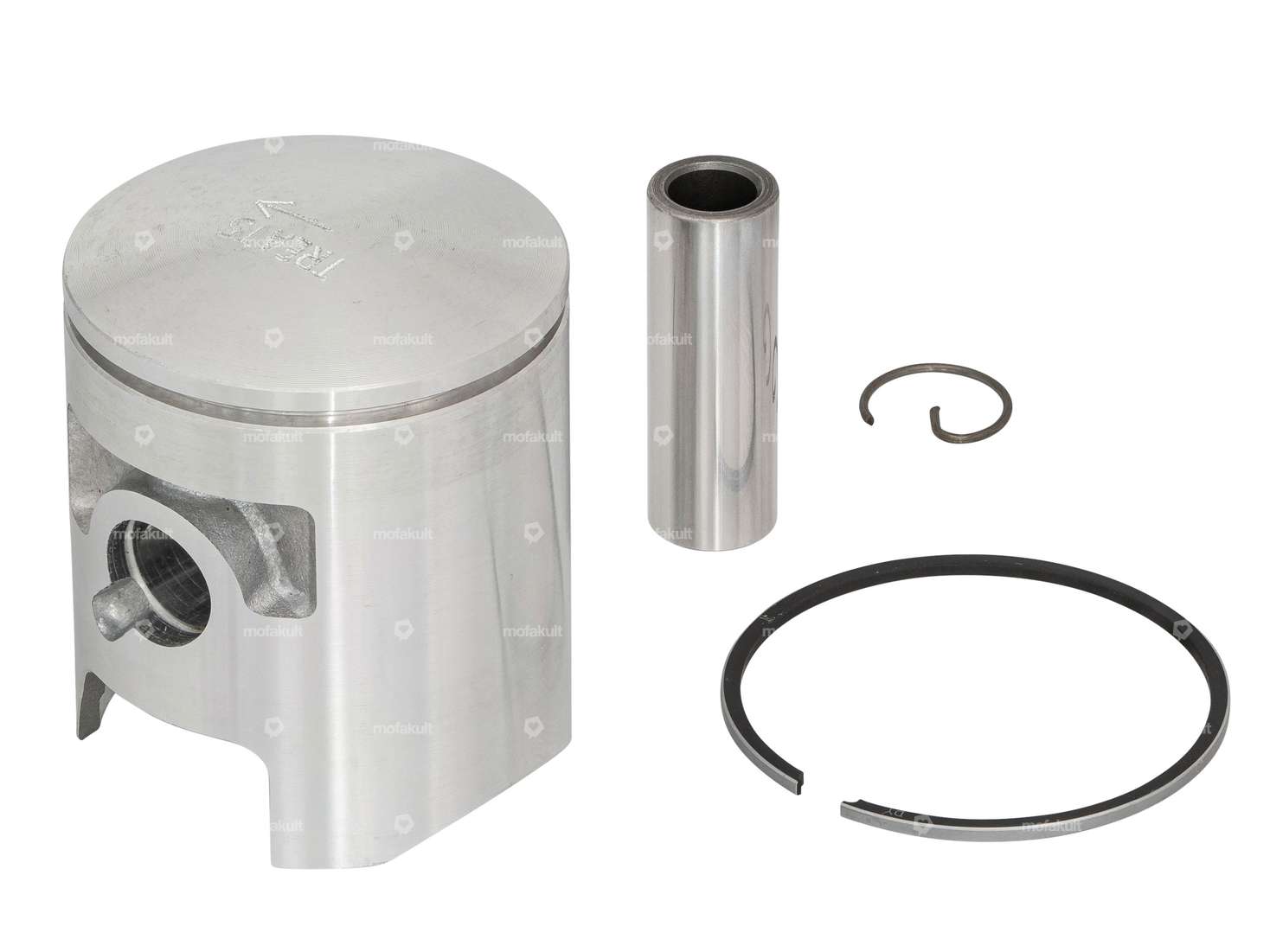

44 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) suitable for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their rods and locking types on the legend in the pictures.

Thanks to the fact that this piston has only one piston ring, higher speeds can be achieved.

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Quality product from the Spanish manufacturer Airsal.

ManufacturerAirsal
Ø outside piston (A)43.96 mm
Ø piston pin (B)12 mm
Compression height (C)22.55 mm
Curvature (D)3.48 mm
Total piston height (E)52.5 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Nominal diameter44 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Weight piston kit91 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
