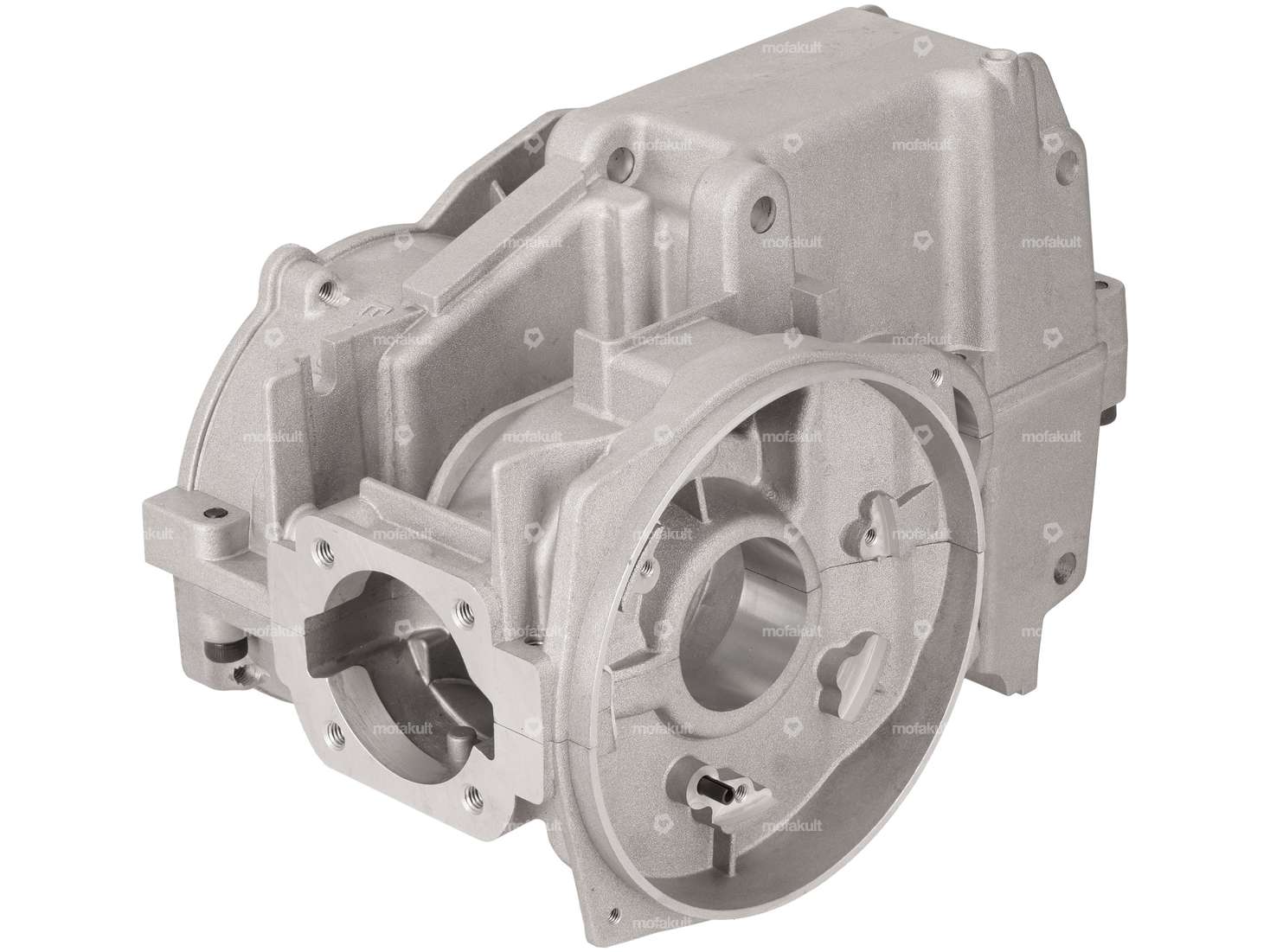

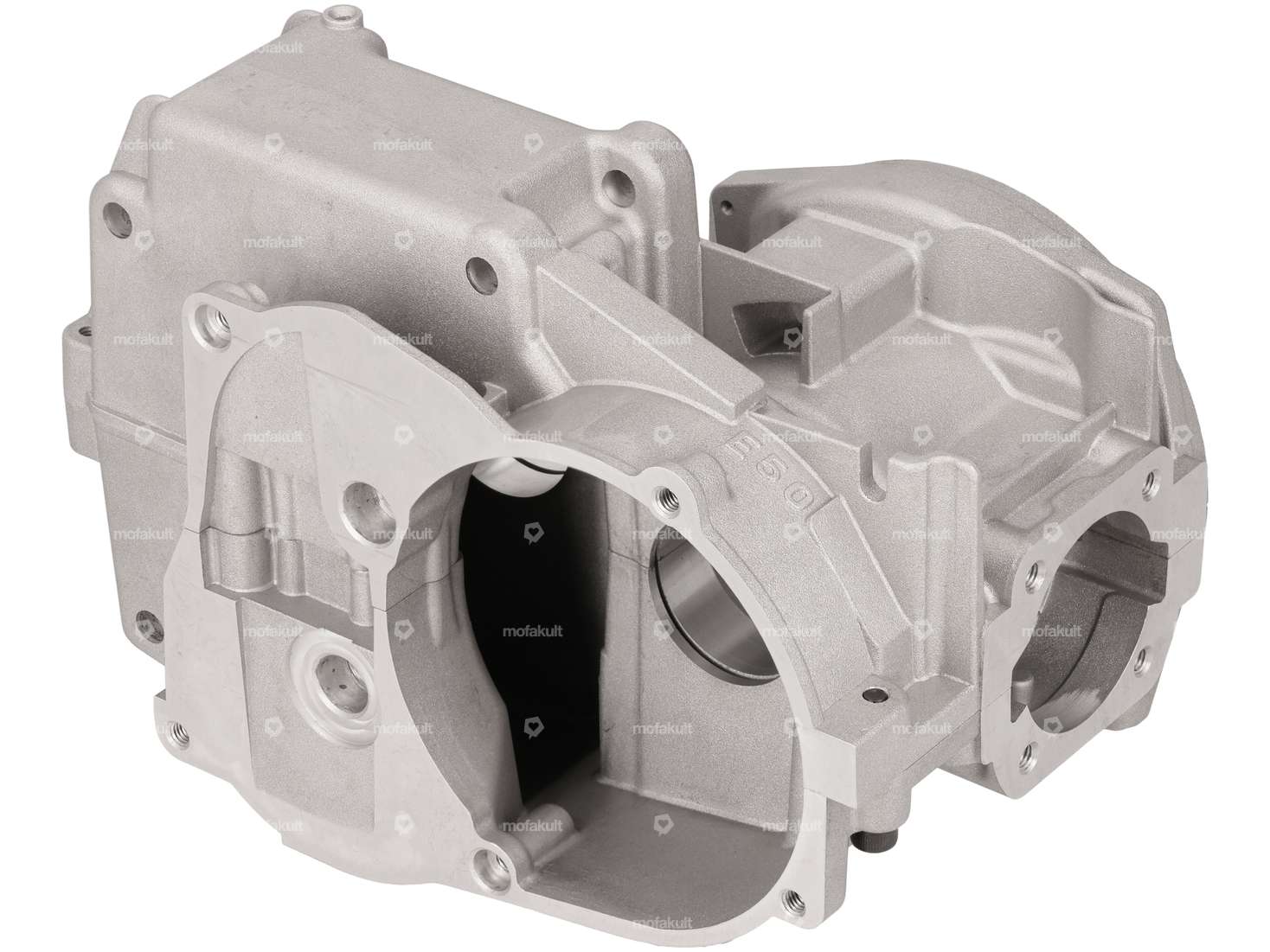

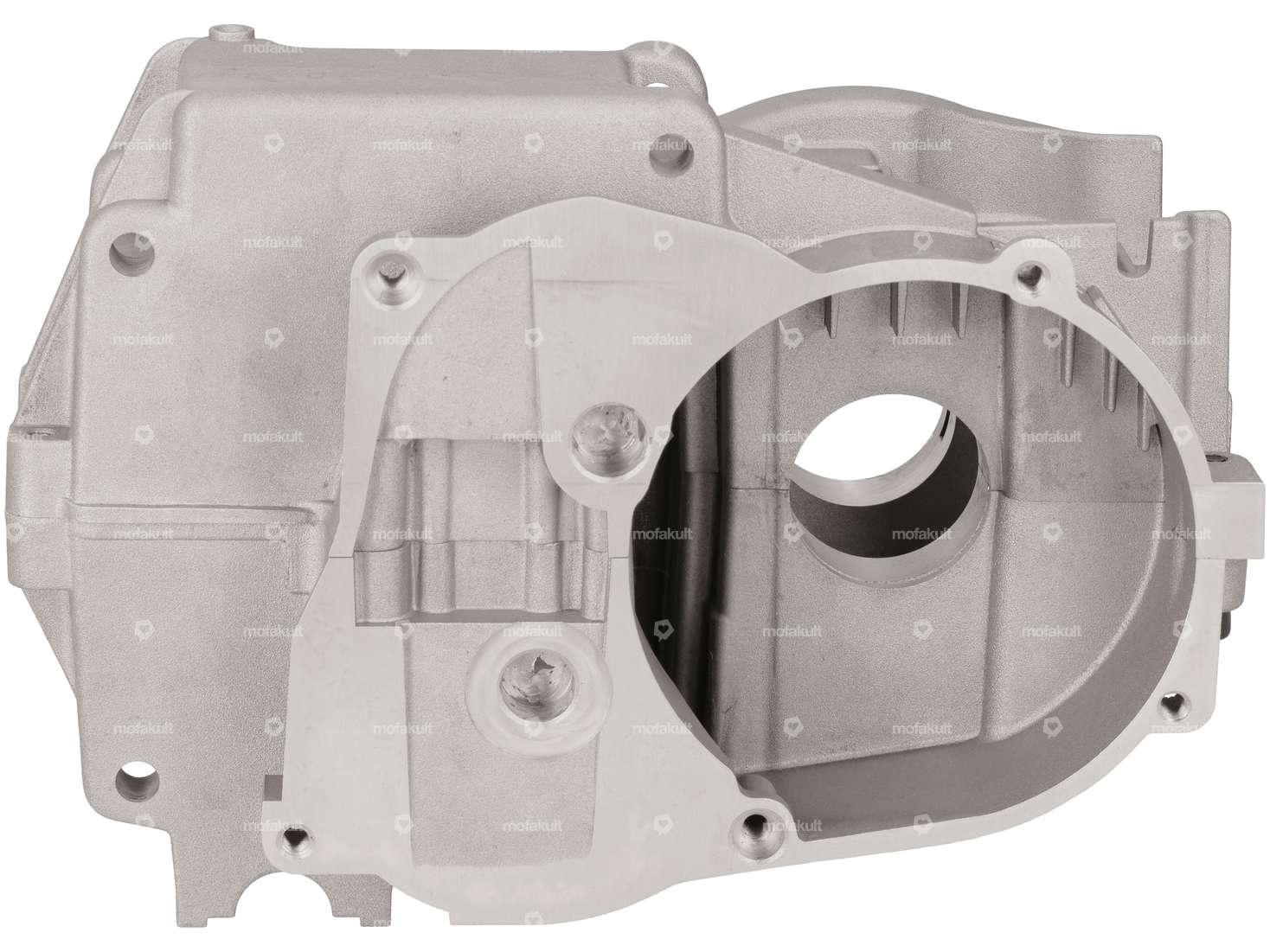

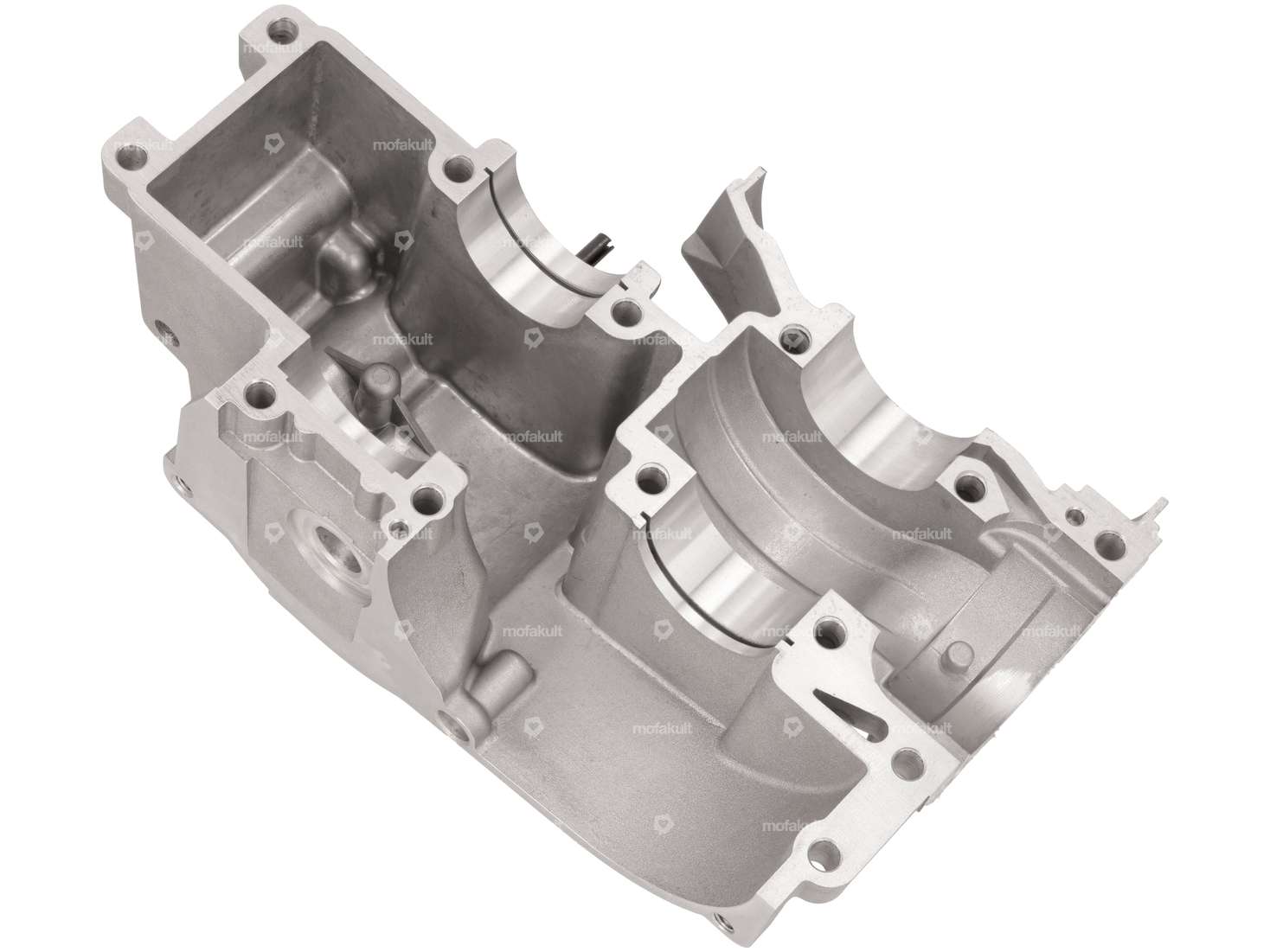

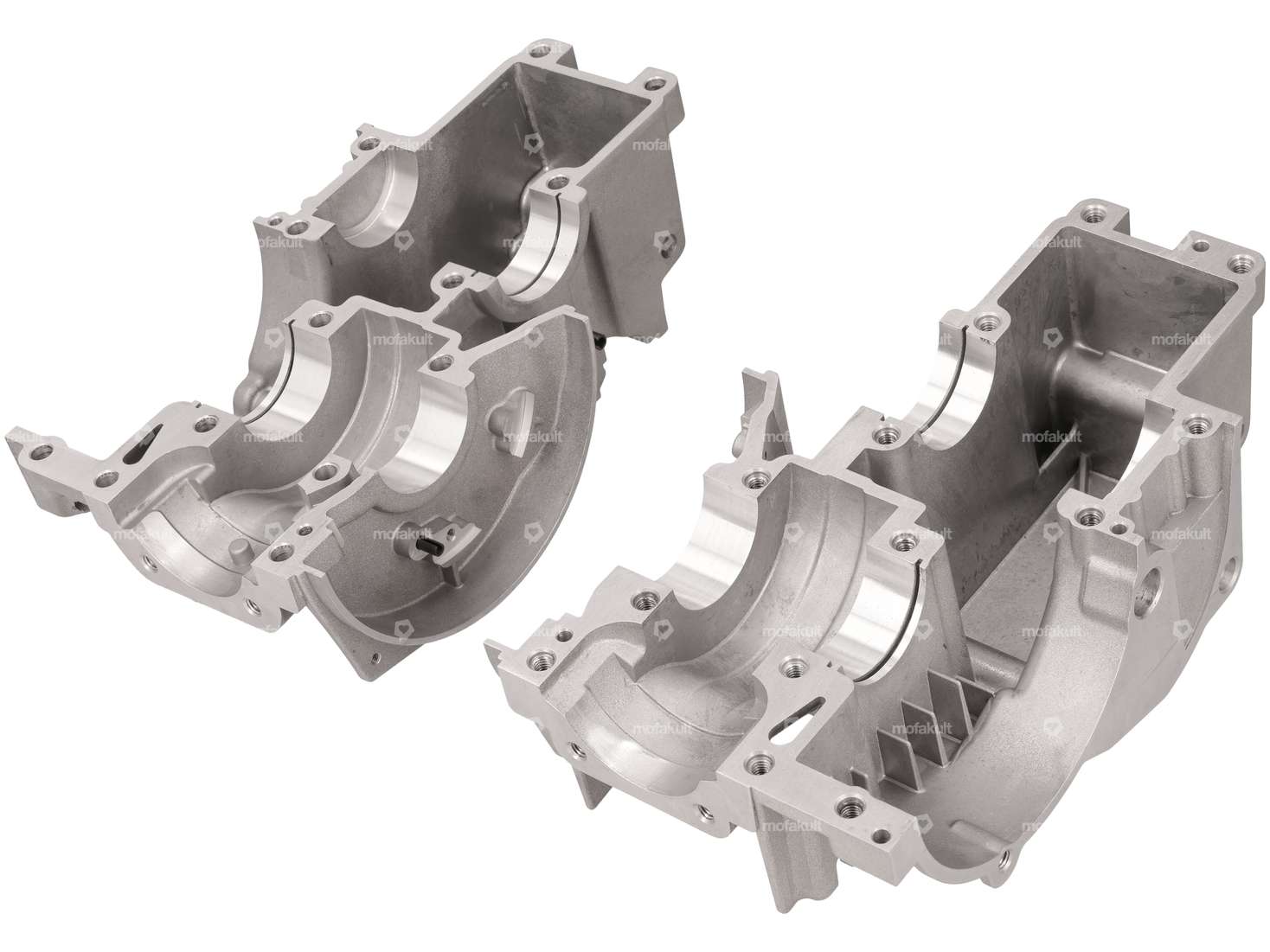

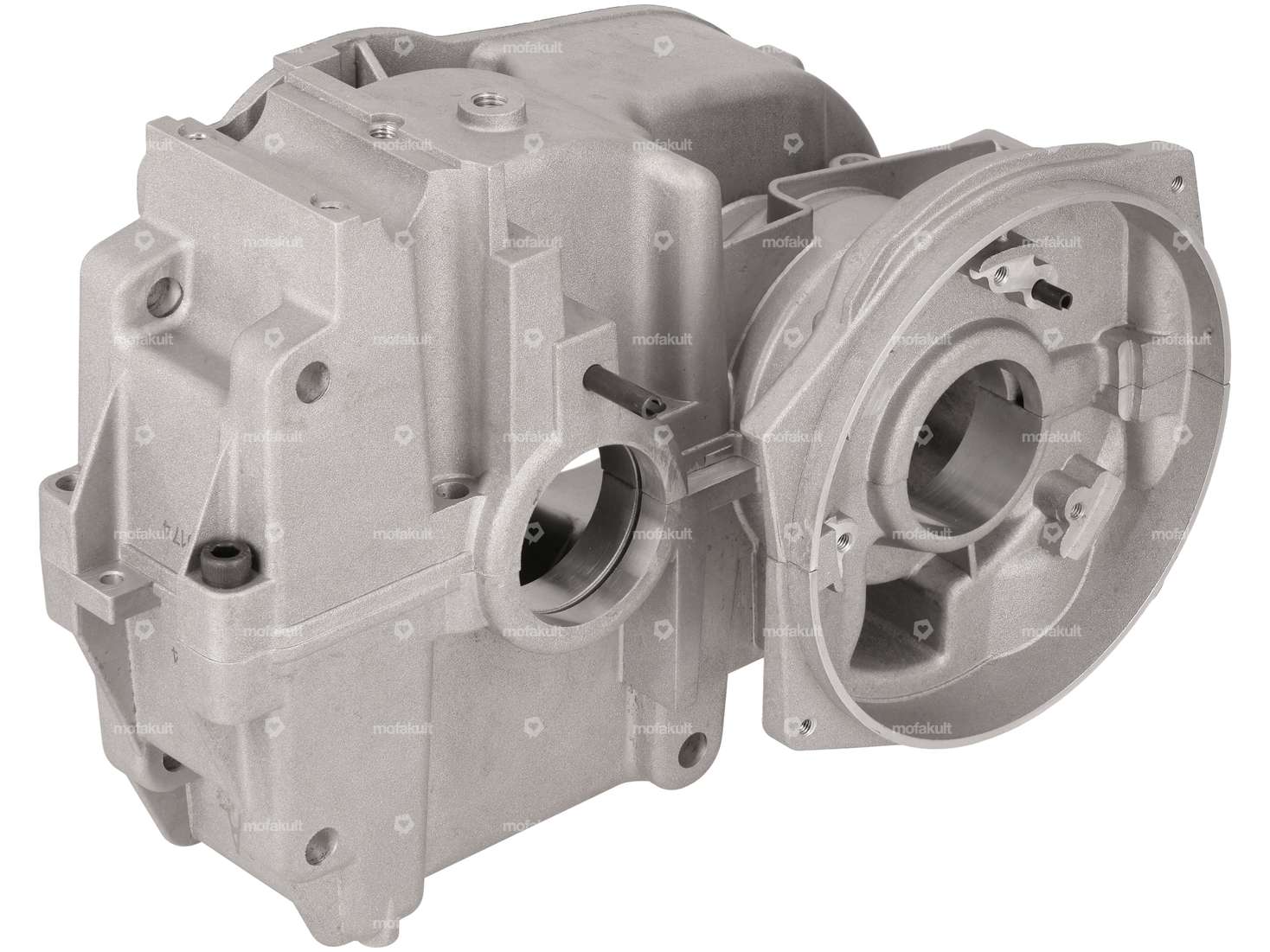

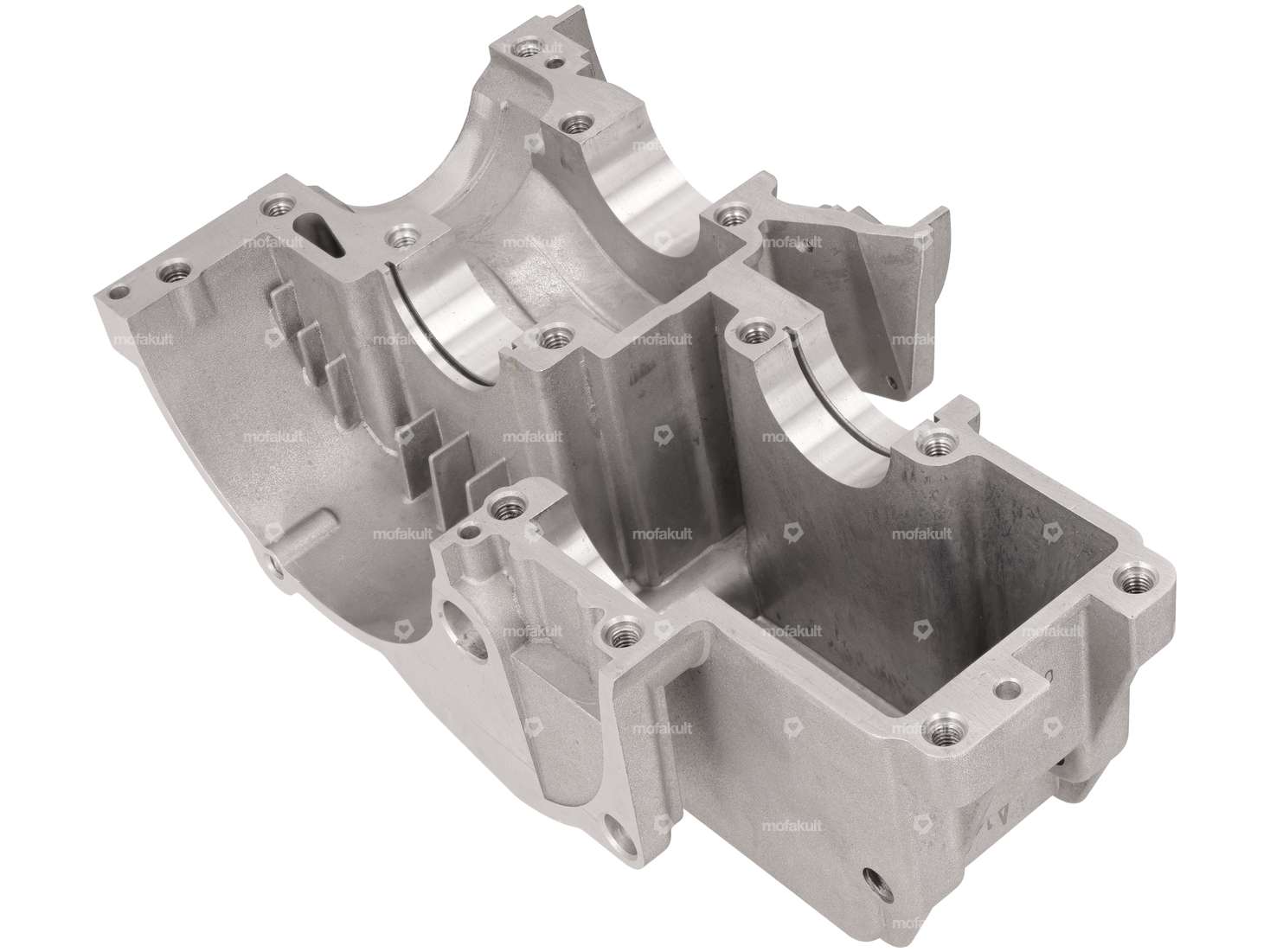

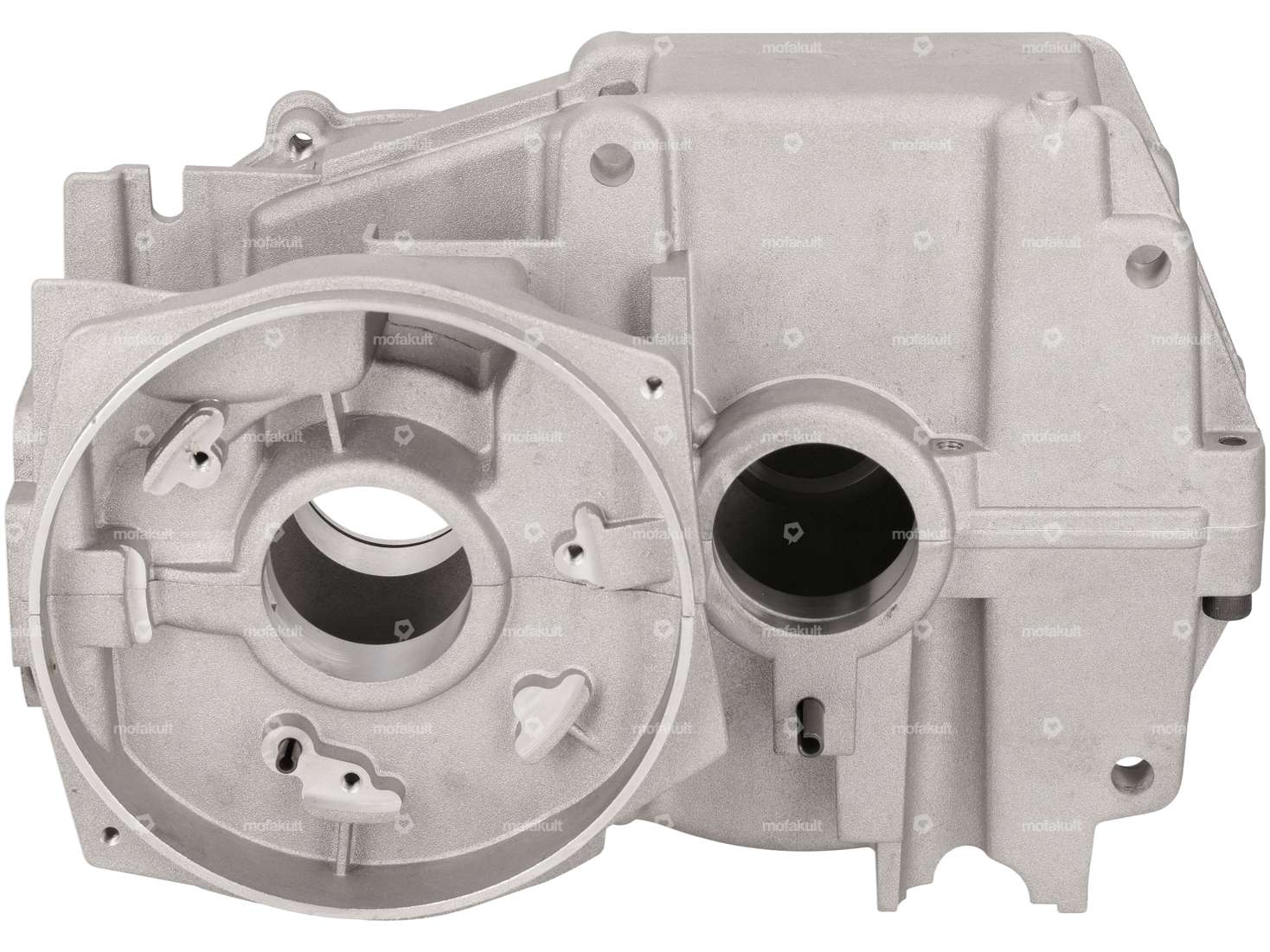

Reproduction of the original E50 engine housing with 4 bearings and kick starter for your Puch moped / moped.
The dimensions correspond to the original housing. This means that all add-on parts such as rods, end plates, crankshafts or cylinders can be used.
As with the original, a cylinder and pinion lock has been installed, which must be removed when fitting tuning parts.
The housing parts are numbered. The engine number can be stamped in by the owner if required.
Threaded stud bolt: M6x1 mm
Matching attachments as well as a racing gear for your Puch Maxi can be found in the accessories section.
Branded product from the manufacturer AKOA.
| Manufacturer | AKOA |
| Material | Aluminum |
| Puch | E50 |
