For: Kreidler

30434

Assembly instructions | Kreidler Florett 3-speed manual

32,40 EUR

Incl. 19% VAT.

Product description

Installation instructions for the hand- and foot-operated 3-speed Kreidler Florett engine.

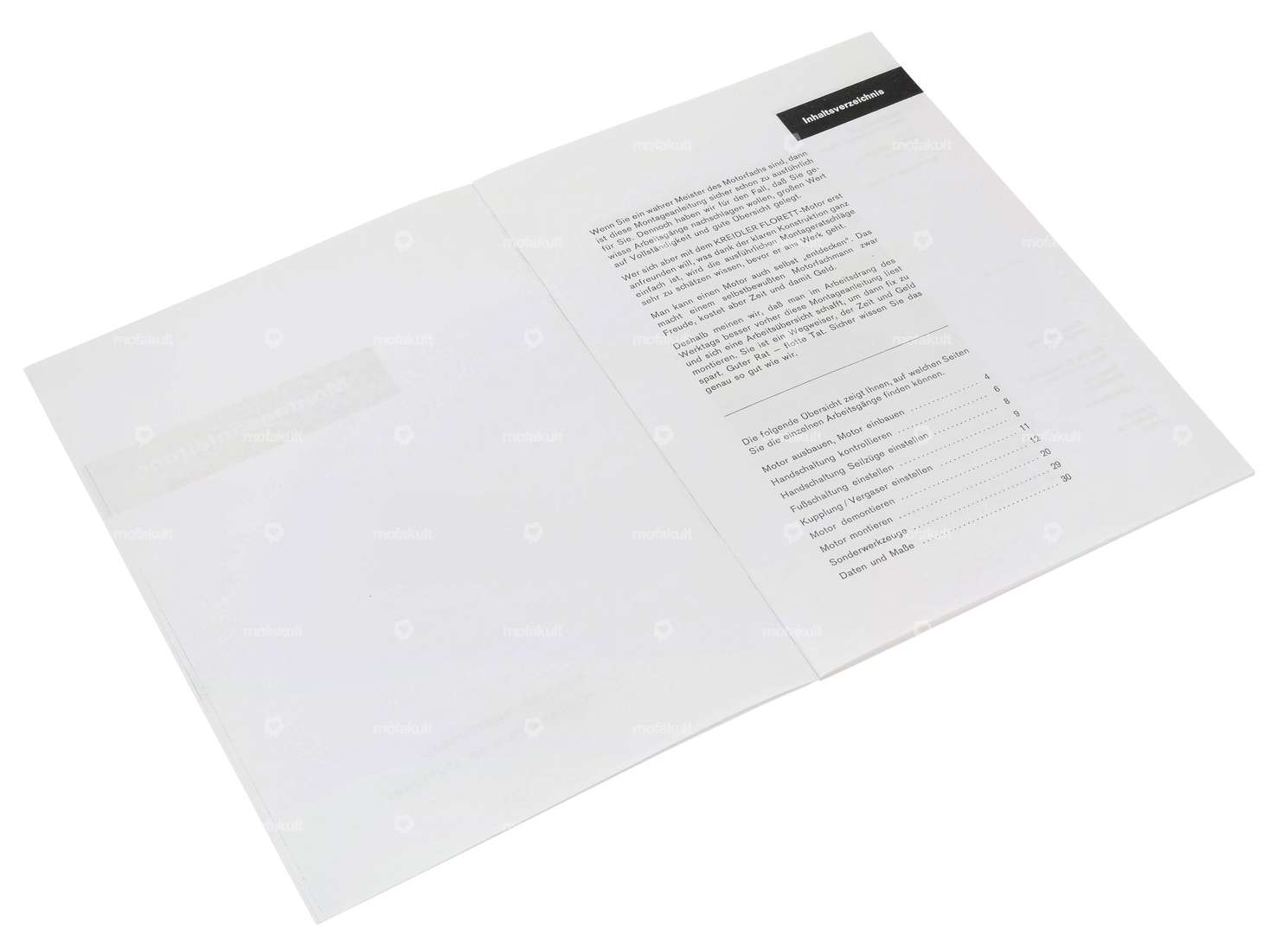

Very helpful, informative booklet. It explains, among other things, engine removal and installation, clutch adjustment, ignition and shifting with the help of detailed pictures. No workshop with Kreidler mopeds / mopeds should be without this detailed instruction manual.

Size: A5 (148 x 210 mm)
Pages: 30
Language: German

High-quality facsimile (reproduction) of the original edition.

You can find more workshop manuals, spare parts catalogs and repair instructions in the accessories section.

MaterialPaper
DIN formatA5
Width148 mm
Number of pages30 pcs
Height210 mm
LanguageGerman
Kreidler
