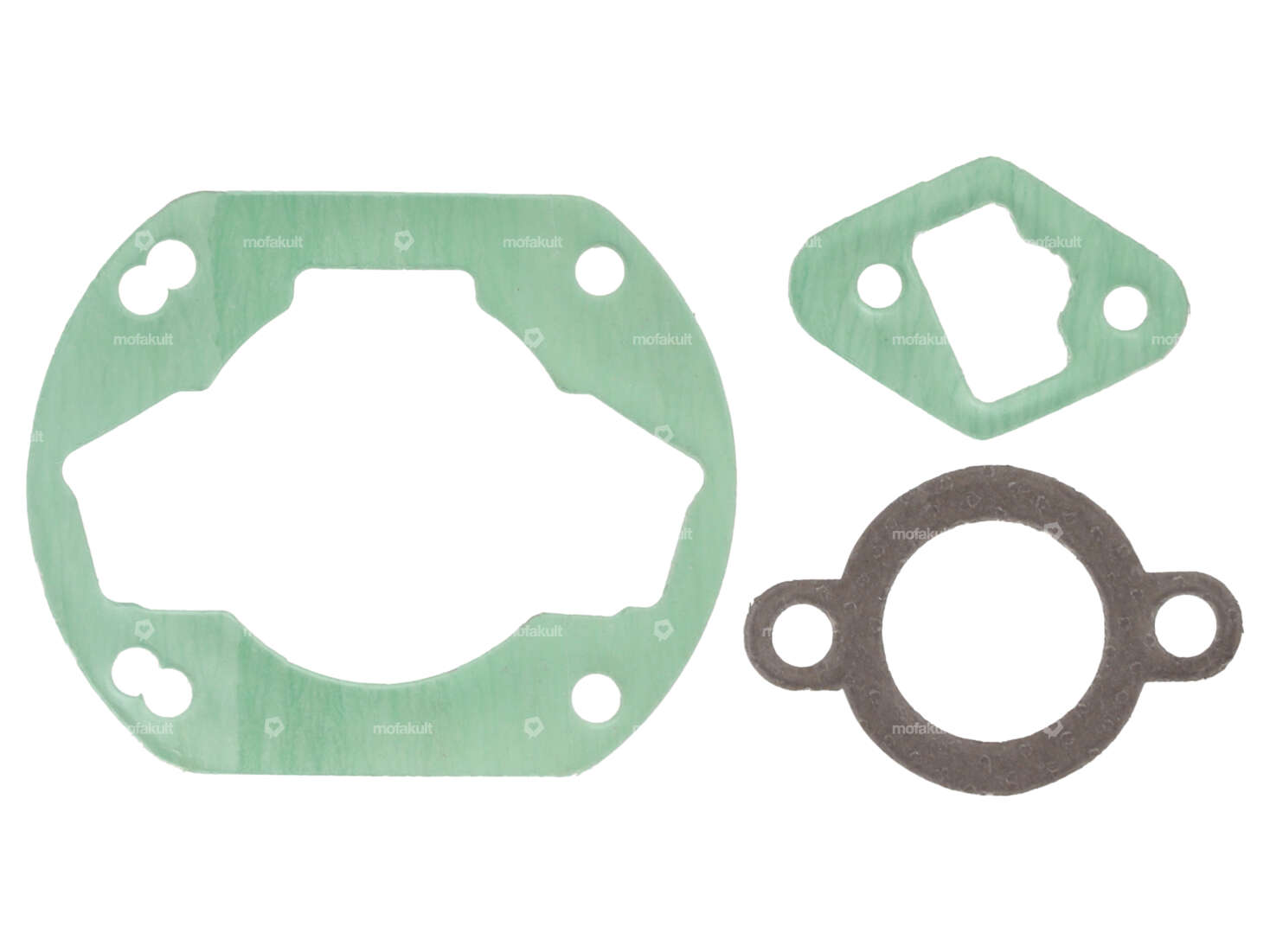

Three-piece set of gaskets for your Sachs moped / moped with 504 / 505 engine and Athena racing kit.
The gasket set consisting of cylinder base gasket and intake and exhaust gasket is suitable for the 48 mm racing kit from Athena.
The matching diaphragm gaskets, the tuning kit and other add-on parts for this cylinder kit can be found in the accessories section.
Quality product from the Italian manufacturer Athena.
| Manufacturer | Athena |
| Ø cylinder | 48 mm |
| Area of application | Tuning |
| Number of components | 3 pcs |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
