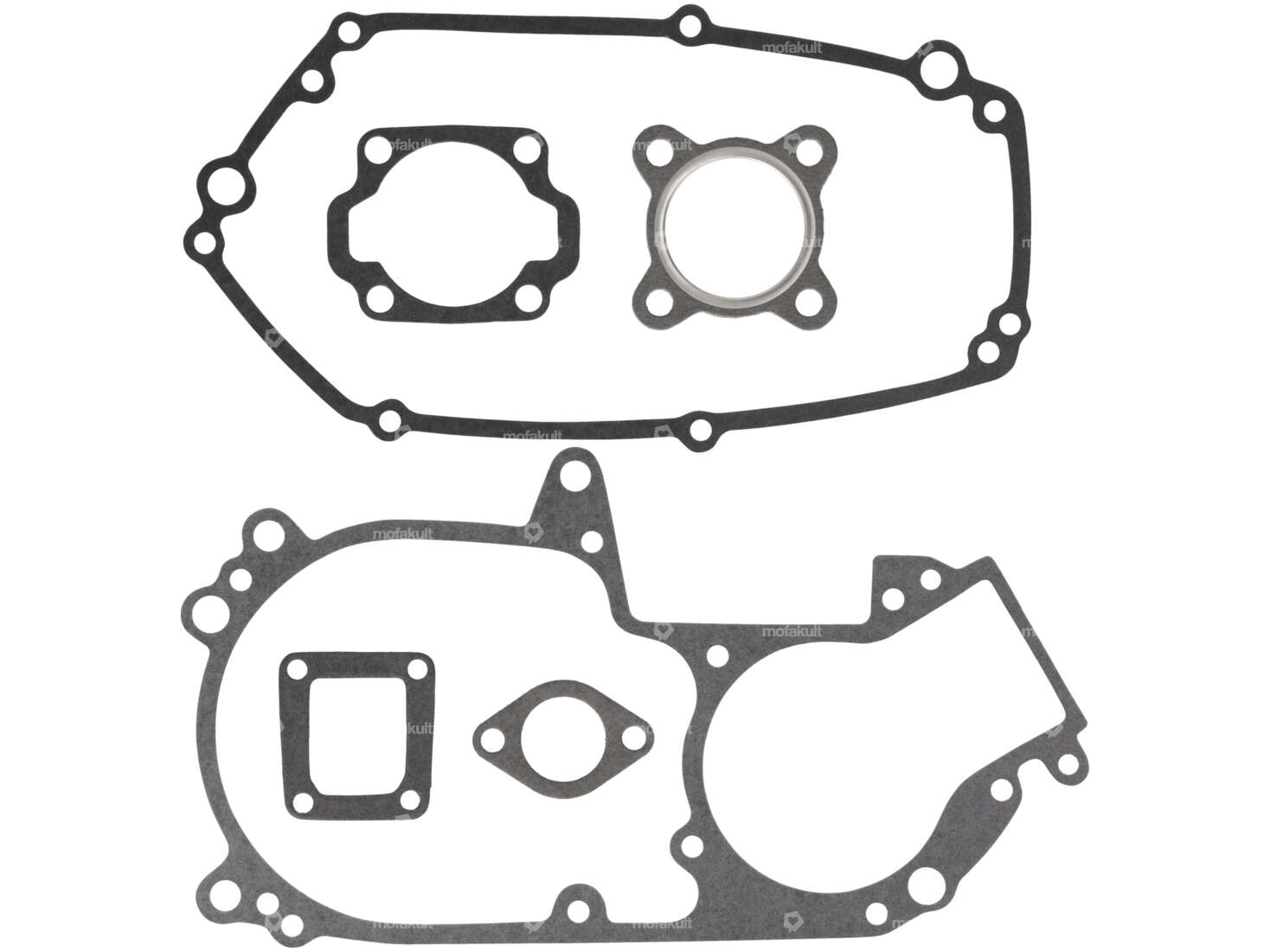

Engine gasket set | Tomos A35

Sealing paper set 4 pcs.

Manufacturer: Made in Spain · Material: Sealing carton · Material: Sealing paper · Place of use: Universal · Thickness: 0.25 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 1.2 mm

DMP gasket set cylinder 50 ccm | Tomos A3, A35

Manufacturer: DMP · Material: Aluminum · Material: Phenolic resin (colloquially known as Bakelite) · Material: Sealing paper · Ø cylinder: 38 mm · Number of components: 3 pcs · Ø outlet inside: 25.2 mm · Thickness: 0.6 mm · Thickness: 1.3 mm · Thickness: 1.9 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Standard

GPO gasket set 45 mm cylinder & diaphragm | Tomos A3, A35

Manufacturer: GPO · Material: Aluminum · Material: Composite materials · Material: Oiled paper · Ø cylinder: 45 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Decompressor: Yes · Area of application: Tuning

Engine gasket set | Tomos A3

Manufacturer: Made in Netherlands · Number of components: 6 pcs · Area of application: Standard

GPO gasket set 45 mm | Tomos A3 / A35

Manufacturer: GPO · Ø cylinder: 45 mm · Number of components: 3 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Contents: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm

Airsal gasket set cylinder 44 mm Tomos (large cooling fins)

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 44 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Temperature resistance (min.): -60 - 300 °C · Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Area of application: Chemistry

Engine gasket set | Tomos A3 (1975 - 1991)

Manufacturer: Tomos · Number of components: 7 pcs · Area of application: Standard

Bearing & oil seal set engine | Tomos A35, A52, A3

Manufacturer: NTN · Manufacturer: SKF · Number of components: 10 pcs

NTN 6203 C3 Ball bearing 17/40/12

Bearing cage: Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Surface: blank · Stock number: 6203 · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm · Ball bearing closed: No · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

NTN 608 Ball bearing 8/22/7

Bearing cage: Sheet steel cage ball-guided · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Stock number: 608 · Bearing type: Deep groove ball bearing · Width: 7 mm · Ø outside: 22 mm · Ø inside: 8 mm

GPO oil seal set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Width: 7 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Number of components: 6 pcs · Area of application: Standard

NSK 6000 ball bearing 10/26/8

Bearing type: Deep groove ball bearing · Stock number: 6000 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Ø inside: 10 mm · Width: 8 mm · Ø outside: 26 mm

Shaft seal NBR 35/47/7 AS Pinion shaft | Tomos

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Tomos · Material: NBR · Place of use: Pinion shaft · Surface: rubberized · Width: 7 mm · Ø outside: 47 mm · Ø inside: 35 mm · Tomos OEM number: 036620

NTN 6006 ball bearing 30/55/13 pinion shaft | Tomos

Bearing cage: Sheet steel cage ball-guided · Inner ring width: 13 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Stock number: 6006 · Bearing type: Deep groove ball bearing · Width: 13 mm · Ø outside: 55 mm · Ø inside: 30 mm · Tomos OEM number: 035037

Set of clutch shoes | Tomos Classic, Quadro, Sprint, Fun Sport'R

Ø outside: 90 mm · Number of jaws: 3 pcs · Thickness: 14.9 mm · Area of application: Standard · Tomos OEM number: 223432
