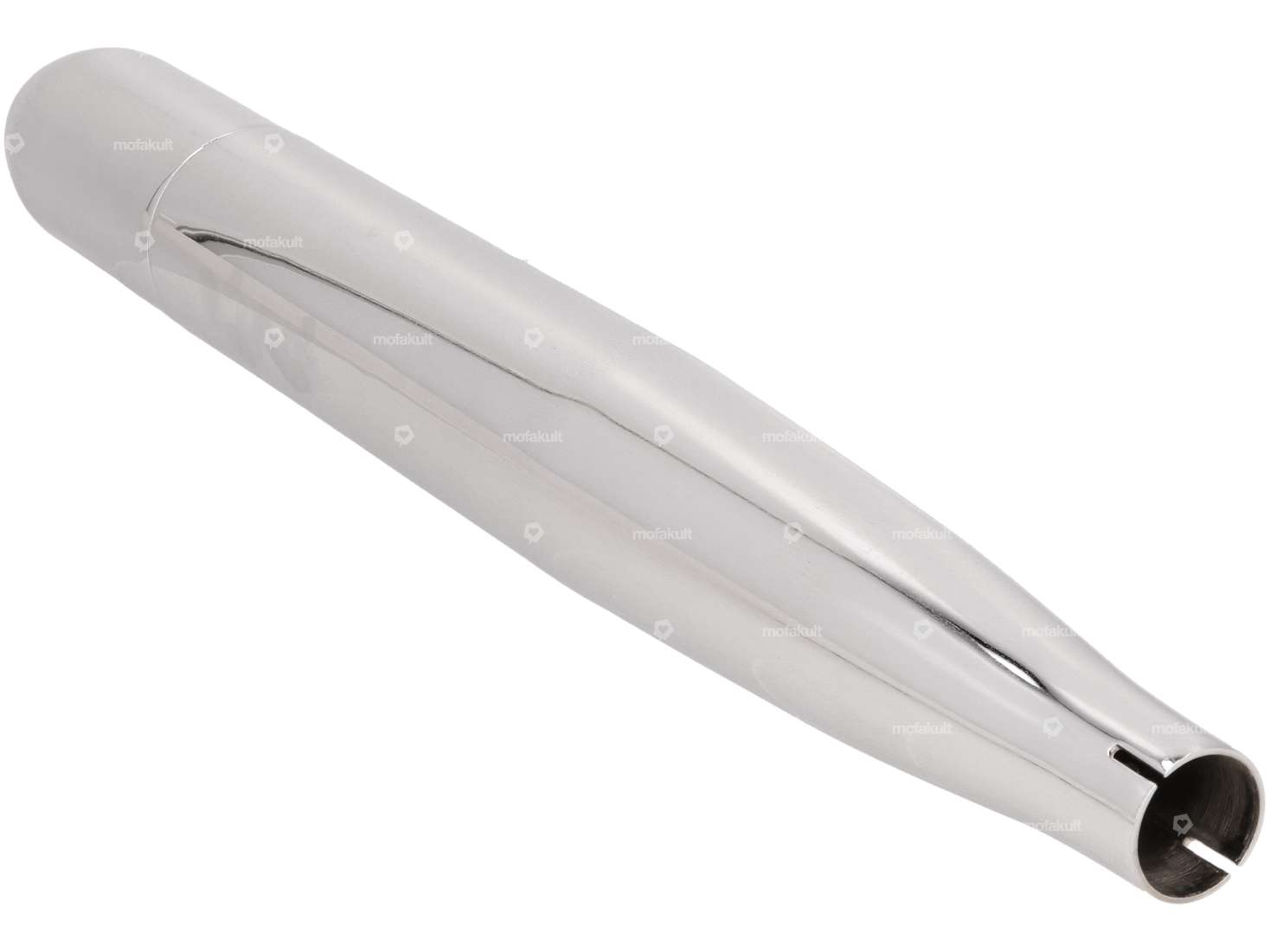

Complete cigar exhaust set with 22 mm flame pipe and Ø 28 / 60 mm silencer suitable for your moped / moped with Sachs 503 AB engine without catalytic converter.

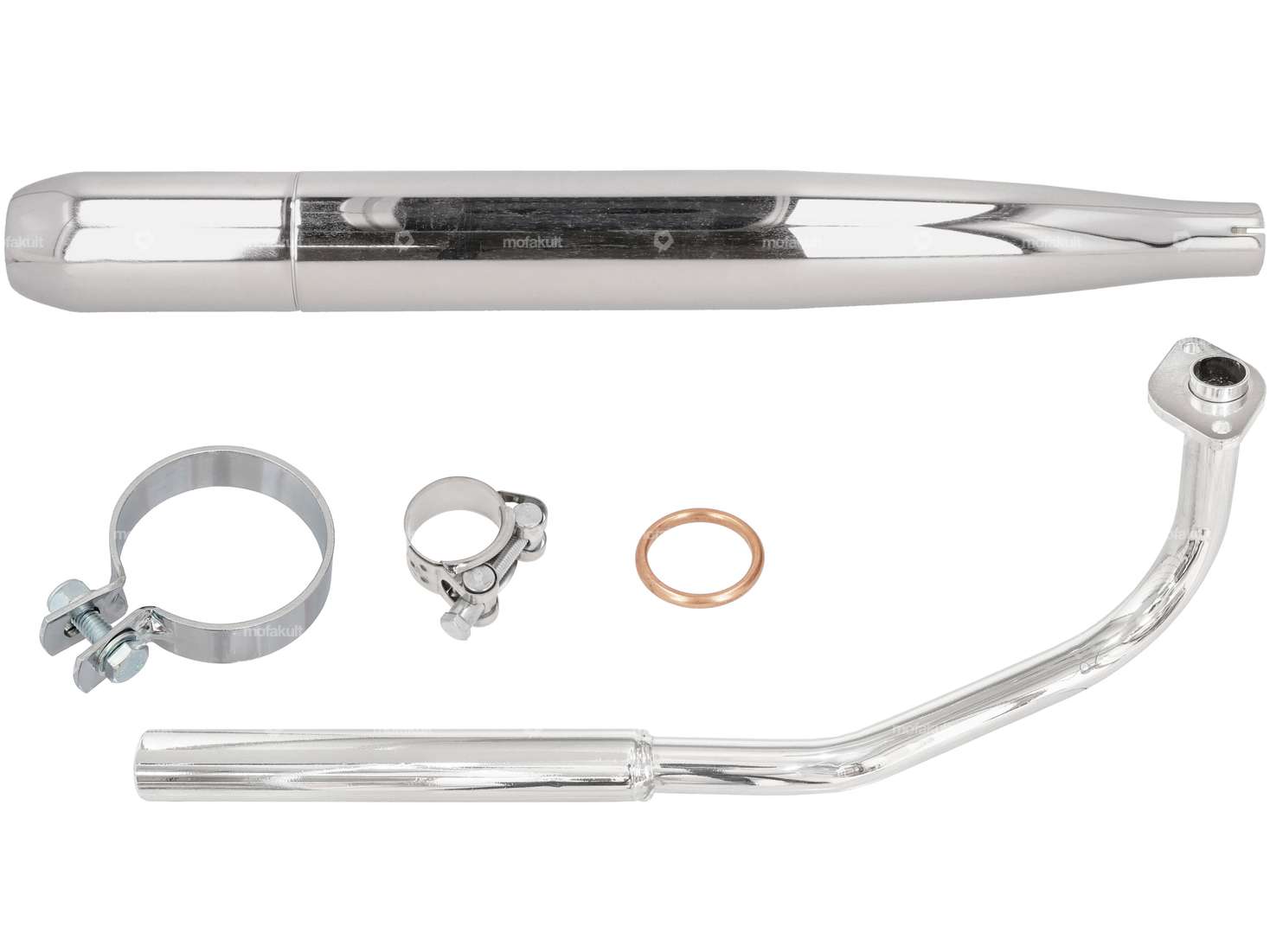

The scope of delivery of the chrome-plated exhaust system includes the muffler, exhaust manifold, copper sealing ring, clamp clamp and an exhaust clamp.
Matching cylinder kits and other exhaust systems can be found in the accessories section.
The set includes the following fixed parts:
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 20 mm, 26 mm · Ø outside: 22 mm, 28 mm · Total length: 440 mm · Flame tube attachment: Stud bolts & nuts · Number of fixing points: 2 pcs · Hole spacing outlet: 50 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 60 mm · Total length: 535 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp
Material: Copper · Place of use: Outlet · Thickness: 3.4 mm · Ø outside: 29.1 mm · Ø outlet inside: 23.1 mm
Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Drive: External hexagon · Thread type: M8x1.25 (standard thread) · Height: 12 mm · Width across flats SW: 13 mm · Strength class: 10
Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 13 mm · Shank: No · Total length: 30.3 mm · Thread length: 25 mm · Strength class: 8.8 · Number of components: 1 pcs
Manufacturer: swiing® ingenious parts · Material: Steel, FPM - Fluororubber · Surface: chrome-plated · Color: Chrome · Ø inside: 25 - 28 mm · Width: 40 mm · Mounting type: Nuts & bolts · Total length: 40 mm
Details
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Ø outside | 60 mm |
| Ø Flame tube outside | 28 mm |
| Exhaust type | Cigar |
| Mounting type | Screwed clamp |
| Flame tube attachment | Plug connection clamped |
Suitable for the following models
| Sachs | 503 - AB |
