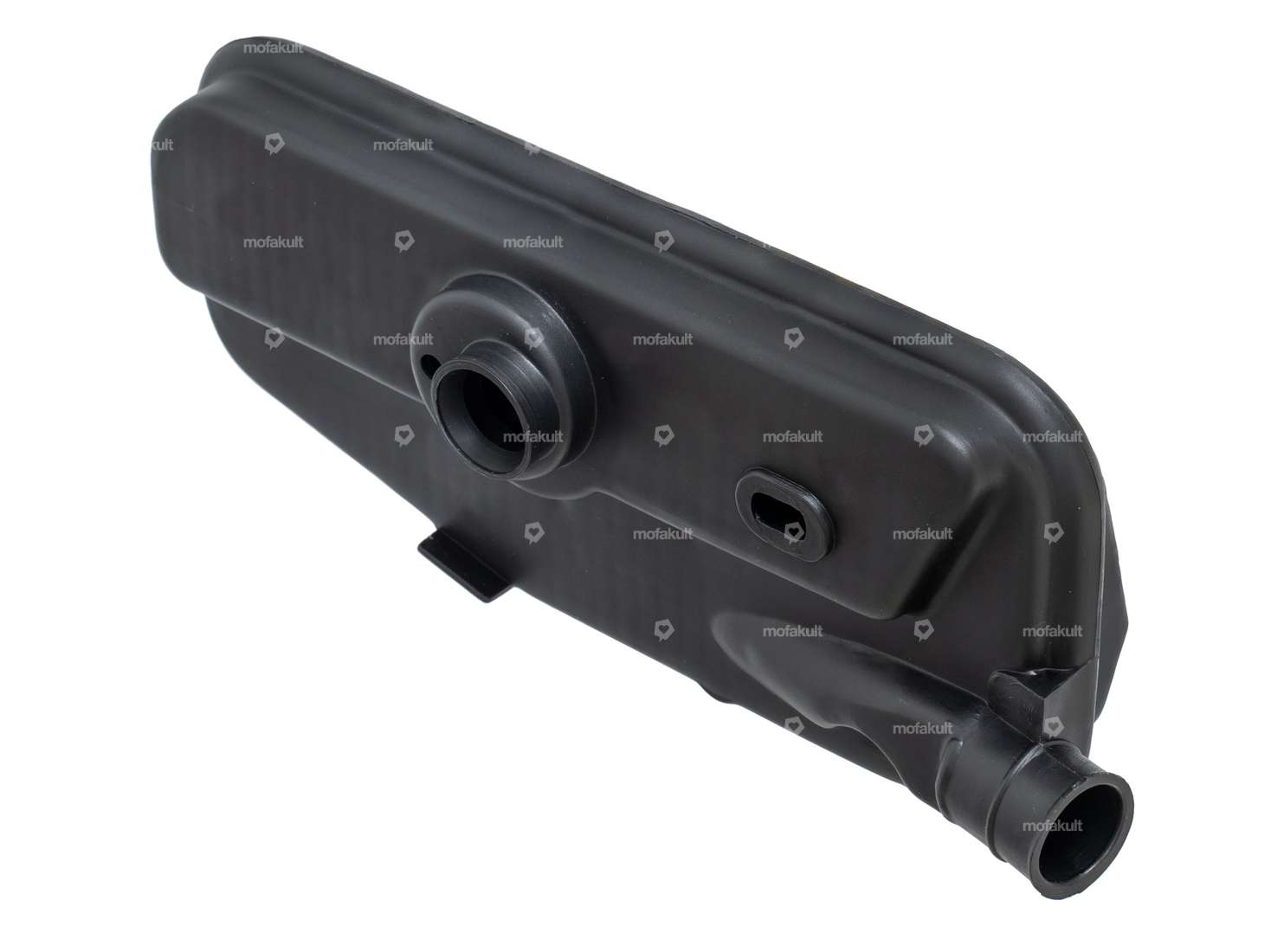

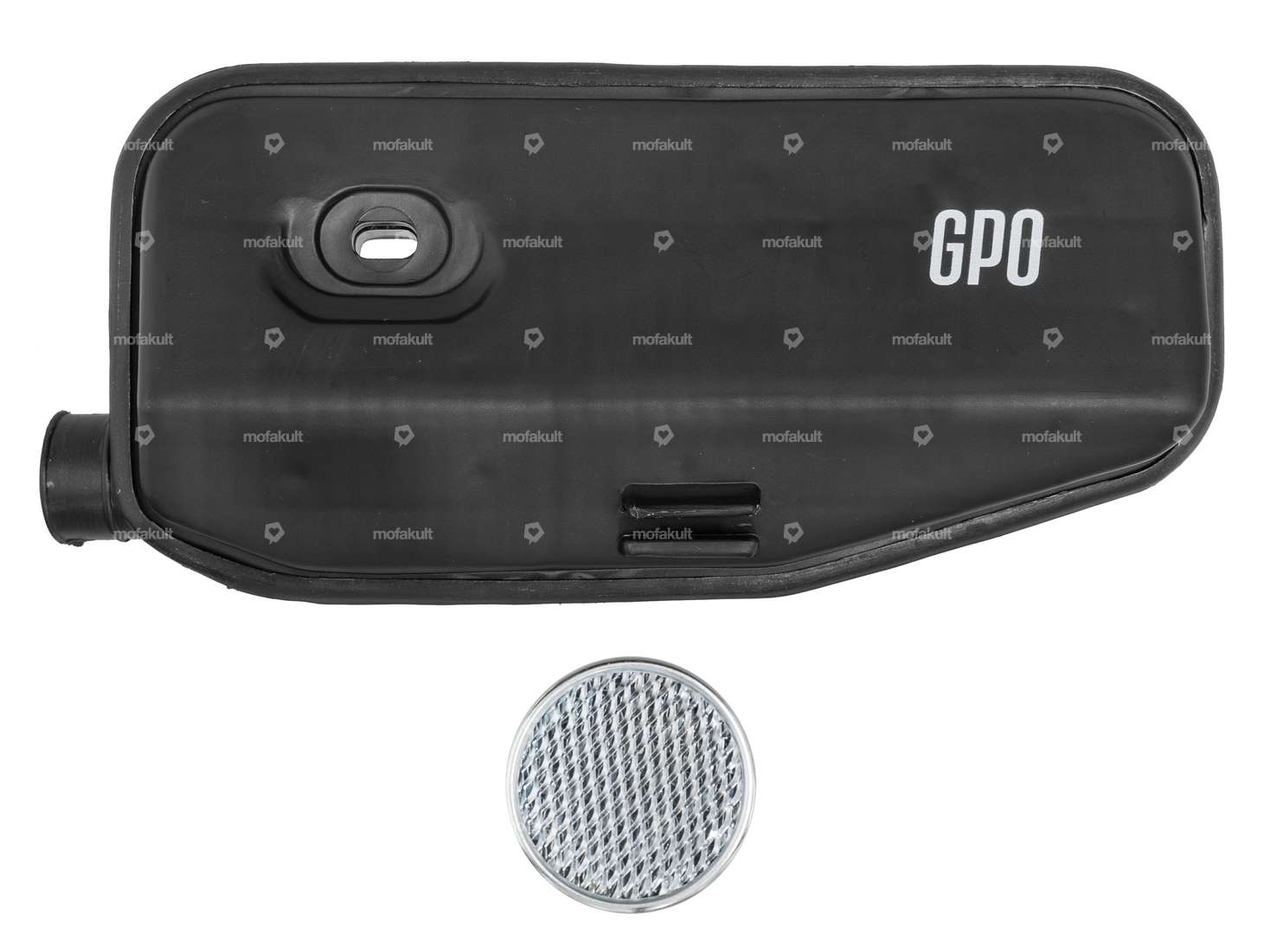

Original reproduction air filter for your Puch Maxi S / N moped.
The air filter box is supplied in disassembled condition.
To make assembly easier, we recommend briefly placing the air filter housing in warm water to soften the plastic.
Carburetor connection diameter: 20 mm

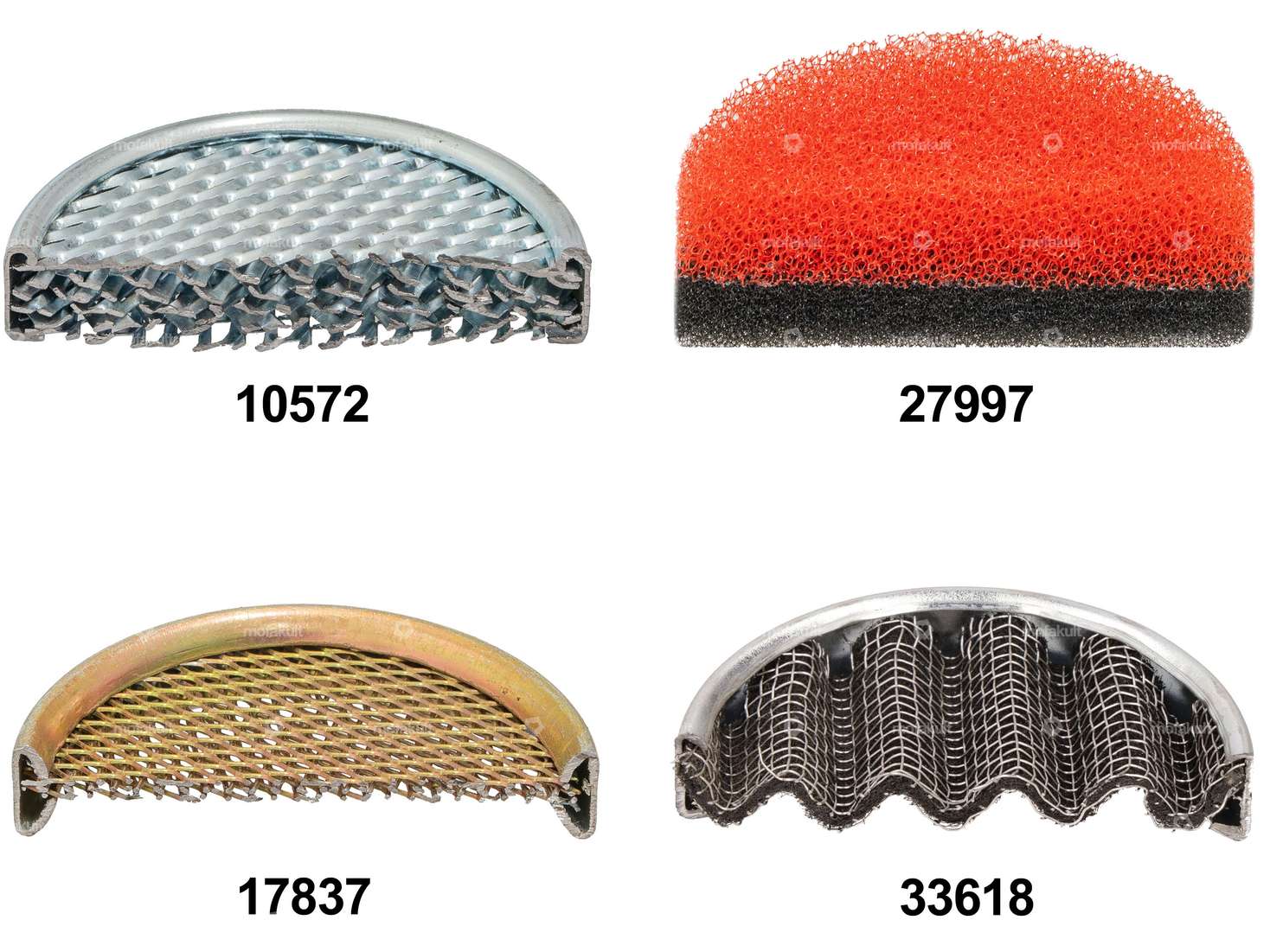

Select the desired air filter screen in the selection field:
- Standard: original air filter screen
- Racing: screen with fewer filter layers for more air flow
- Tuning: two-layer filter mat for maximum air flow
Note: From the factory, a joint with silicone sealant was drawn around the seam of the original air filter after the two parts were joined to exclude the risk of air leakage. We recommend doing the same with this air filter.
You will find a suitable sealant and other useful parts in the accessories section.Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
The set includes the following fixed parts:
Manufacturer: GPO · Color: black · Material: Plastic · Total length: 230 mm · Height: 103 mm · Ø inside: 20 mm · Mounting type: Plug connection clamped · Number of fixing points: 2 pcs · Area of application: Original, Standard
Details
| Material | Plastic |
| Manufacturer | GPO |
| Color | black |
| Ø Internal connection | 20 mm |
Suitable for the following models
| Puch |
