For: Sachs

17309

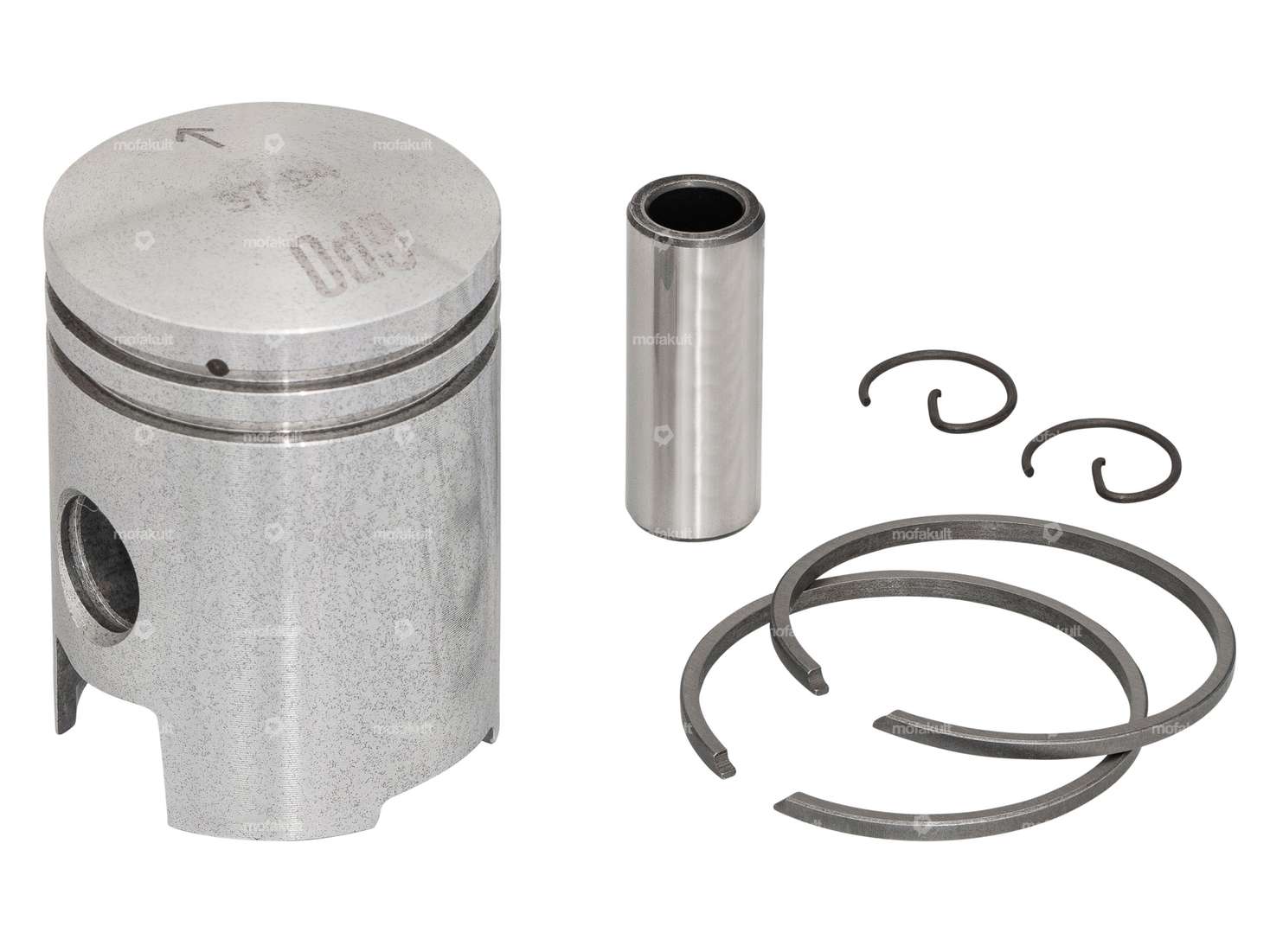

GPO piston 38 mm | Sachs 50/2, 50/3, 50/4 fan-cooled

rating iconrating iconrating iconrating iconrating icon
No reviews
39,60 EUR

Incl. 19% VAT.

Description

38 mm replacement piston with two rectangular piston rings with flank lock (FS) suitable for blown Sachs 50/3, 50/4 mopeds / mopeds with reproduction cylinders such as our GPO Wummer.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerGPO
Thick piston ring2 mm
Ø outside piston (A)37.94 mm
Compression height (C)27.5 mm
Curvature (D)3.5 mm
Total piston height (E)53 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.7 mm
Ø piston pin (B)12 mm
Weight piston kit78 g
Alternative version of the Sachs OEM number0290 058 025
Sachs

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

1,40 EUR

Hot Hot
Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

30,20 EUR

30,20 EUR/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

15,80 EUR

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

1,40 EUR

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool

23,20 EUR

Explore categories from Piston

S-10-60-020-010_Kolbenring
Piston ring
S-10-60-020-020_Kolbenbolzen
Piston pin
S-10-60-020-030_Kolbenbolzenclip
Piston pin clip
S-10-60-020-040_Kolbenkit
Piston kit
S-10-60-020-050_Werkzeug
Tool

Moped fans also bought

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)
undefined

For: Sachs

11693

swiing® revival membrane seal 0.4 mm | Sachs 50/2, 50/3, 50/4 (A1840)

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.4 mm · Hole spacing inlet: 67 mm · Pony OEM number: A1840 · Sachs OEM no.: 0250 106 00

3,40 EUR

GPO inlet gasket nozzle | Sachs 502, 50/2
undefined

For: Sachs

12207

GPO inlet gasket nozzle | Sachs 502, 50/2

Manufacturer: GPO · Material: Polyamide (PA) · Material: Sealing paper · Place of use: Admission · Thickness: 5 mm · Ø inside: 11.8 mm · Hole spacing inlet: 31 mm · Pony OEM number: A1823 · Sachs OEM no.: 0250 085 000

5,60 EUR

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
undefined

For: Sachs

16088

swiing® revival stud bolt M5 x 23 inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Nominal diameter (thread): 5 mm · Thread length: 6 mm · Thread length: 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

2,10 EUR

Gasket set Sachs 3-speed 50/3 cylinder

For: Sachs

18563

Gasket set Sachs 3-speed 50/3 cylinder

Area of application: Standard · Area of application: Tuning · Ø outlet inside: 28 - 32 mm · Hole spacing inlet: 31 mm · Number of components: 4 pcs · Hole pattern [mm]: 51 x 40 mm

11,60 EUR

swiing® revival stud bolt inlet M5x26 mm galvanized (10.9 strength) | Sachs (A1474)
undefined

For: Sachs

26121

swiing® revival stud bolt inlet M5x26 mm galvanized (10.9 strength) | Sachs (A1474)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Nominal diameter (thread): 5 mm · Thread length: 7 mm · Thread length: 14 mm · Strength class: 10.9 · Pony OEM number: A1474 · Sachs OEM no.: 0241 031 101

2,10 EUR

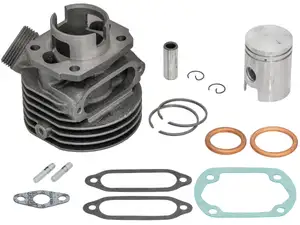

GPO 38 mm cylinder kit diaphragm | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)
undefined

For: Sachs

30295

GPO 38 mm cylinder kit diaphragm | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)

Nominal diameter: 38 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 67 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning

166,70 EUR

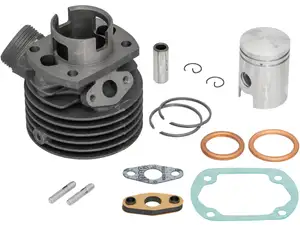

GPO 38 mm cylinder kit slotted | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)
