For the economical repair of damaged or worn threads (of all materials) and as a design element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil®plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion resistance and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, creates an internal thread that is true to gauge and can be used on both sides.

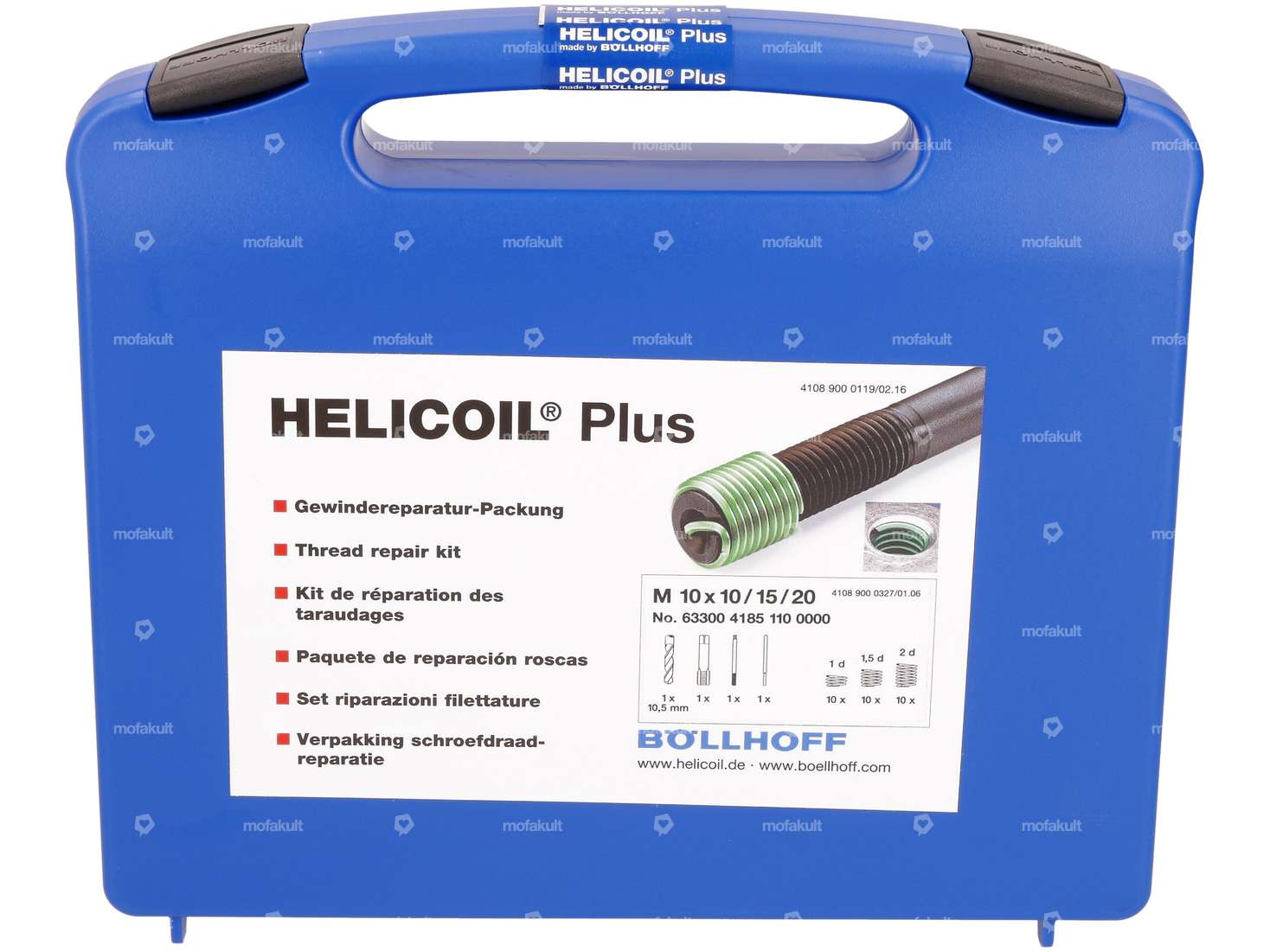

Complete repair kit for M10 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker

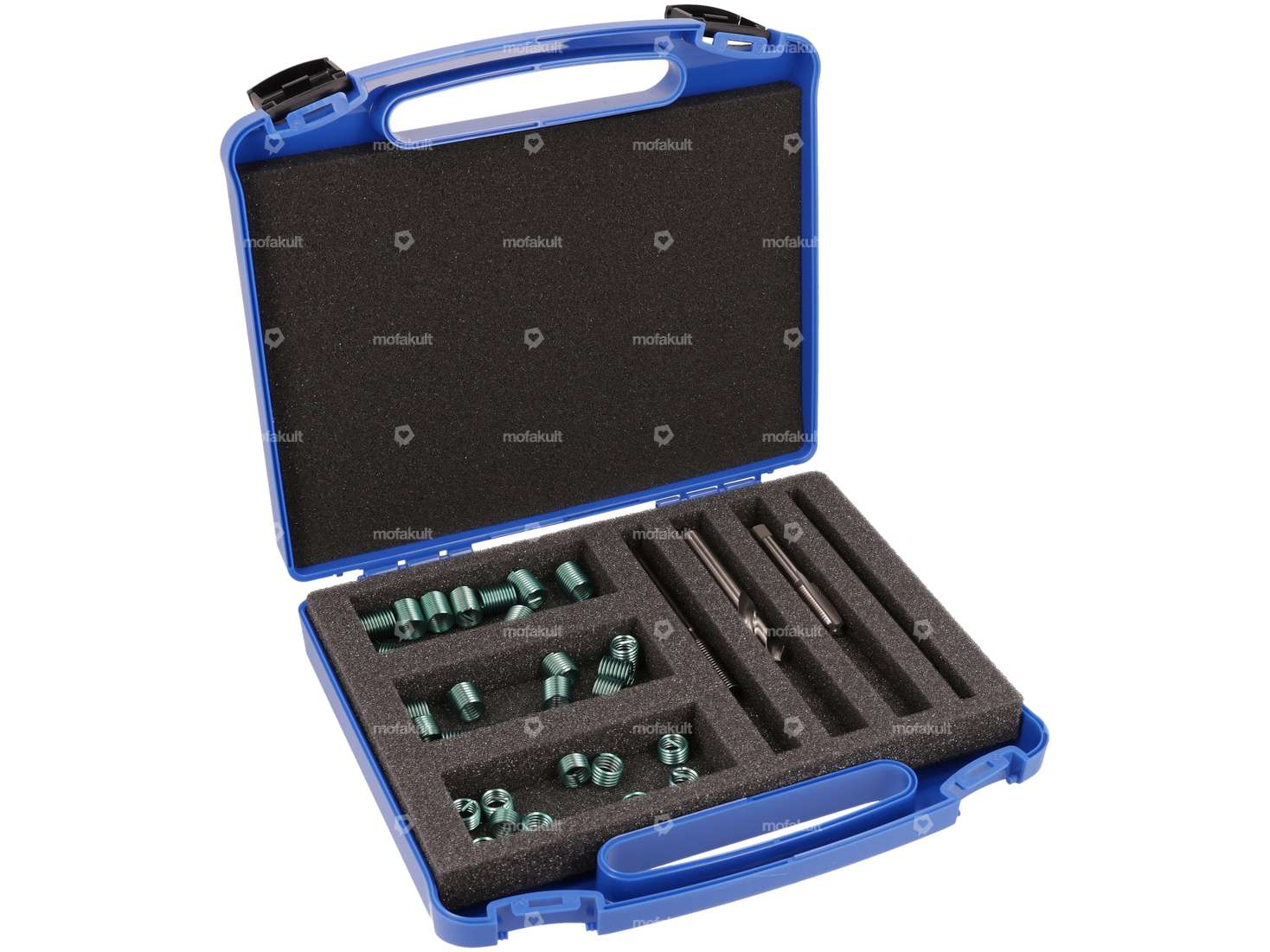

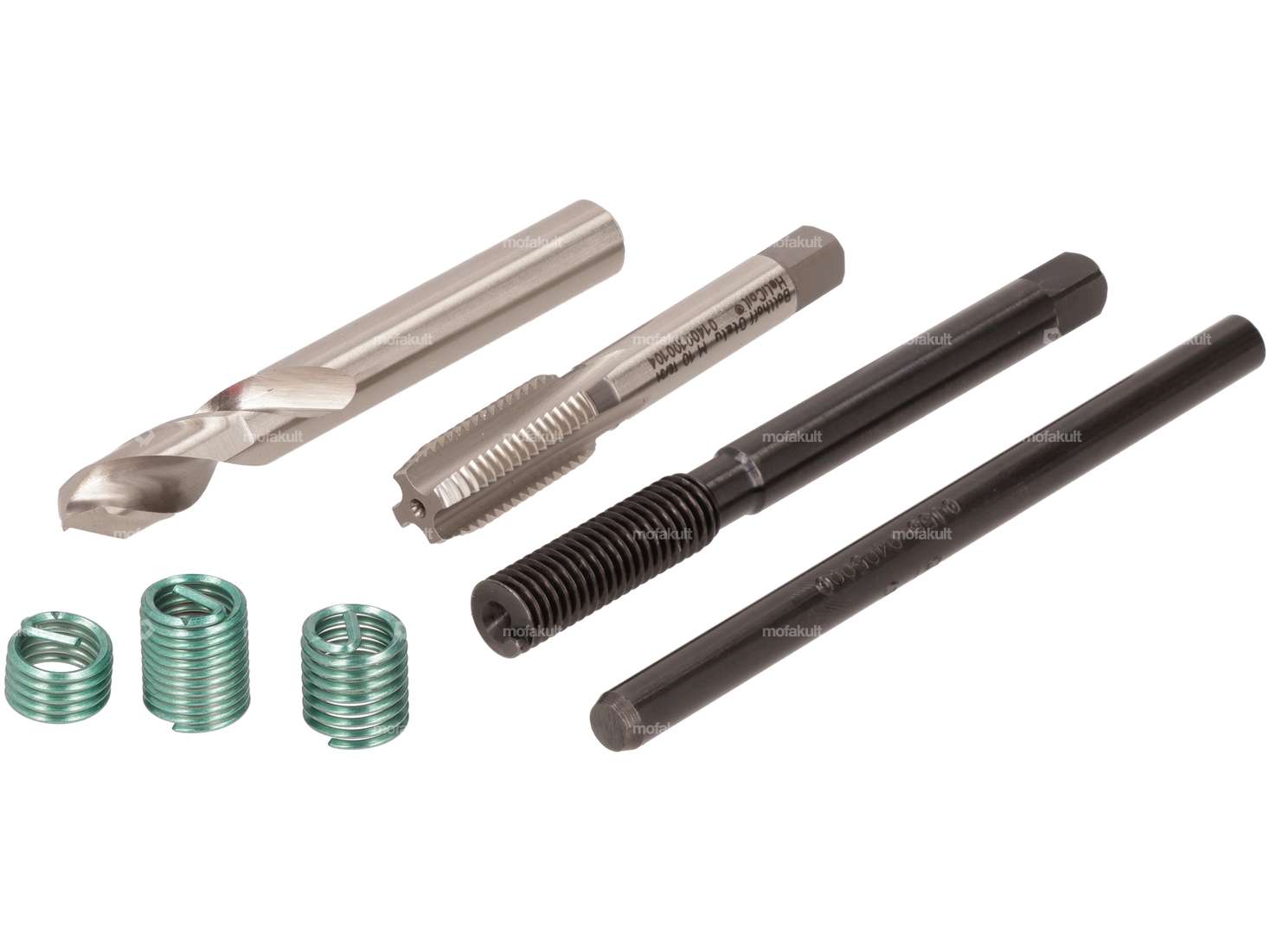

Scope of delivery
- 1 pc. twist drill Ø10.5 mm
- 1 pc. Thread cutter
- 1 pc. Installation tool
- 1 pc. Tang breaker
- 10 pcs. HeliCoil thread insert (1×D)
- 10 pcs. HeliCoil threaded insert (1.5×D)
- 10 pcs. HeliCoil threaded insert (2×D)
- 1 pc. Plastic case 180×165×45 mm (L×B×H)
Note
Adetailed instruction is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Storage method | Suitcase |
| Storage box dimension [mm] | 180 x 165 x 45 mm |
| Manufacturer | HeliCoil |
| Material | Chrome steel (colloquially known as stainless steel) |
| Thread type | M10x1.5 (standard thread) |
| Dimension thread insert | 1D, 1.5D, 2D |
| Total length | 10 mm, 15 mm, 20 mm |
| Nominal diameter (thread) | 10 mm |
| Ø bore | 10.5 mm |
| Number of components | 30 pcs |
| Area of application | Workshop accessories |
Ratings
Accessories & related products
Amecoil insert M10 (1D) 10 mm Inox
Total length: 5 mm · Total length: 6 mm · Total length: 7 mm · Total length: 9 mm · Total length: 10 mm · Total length: 12 mm · Manufacturer: Amecoil · Material: Chrome steel (colloquially known as stainless steel) · Thread size: M10 · Thread size: M6 · Thread size: M7 · Thread size: M8 · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 7 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 9 mm · Nominal diameter (thread): 10 mm
1,00 EUR
Explore categories from Screws & fastener sets
Moped fans also bought
swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50
Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Manufacturer: swiing® revival parts · Width across flats Screw: 13 mm · Color: silver · Material: Copper · Material: Steel · Surface: galvanized (blue) · Total length: 18 mm · Thread type: M8x1.25 (standard thread) · Thread length: 12 mm · Puch OEM number: 901.1053
3,95 EUR
Hot
swiing® ingenious "Expert" motor stand
Manufacturer: swiing® ingenious parts · Area of application: Motor bracket · Material: Steel · Color: red · Surface: varnished · Color: white · Ø Receptacle: 25 mm · Ø Receptacle: 35 mm · Width: 245 mm · Height: 340 mm · Total length: 370 mm · Hole spacing: 21.5 mm · Material thickness: 3.5 mm
84,90 EUR
HeliCoil thread repair set M8 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Surface: coated · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.4 mm · Thread type: M8x1.25 (standard thread) · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm · Nominal diameter (thread): 8 mm · Number of components: 30 pcs · Storage box dimension [mm]: 180 x 165 x 45 mm · Area of application: Workshop accessories
90,60 EUR
MVT internal rotor ignition incl. rev limiter & light 12V | Puch / Sachs
Manufacturer: MVT Allumage · Manufacturer: swiing · Ø cable: 7 mm · Direction of rotation: left · Ø mounting plate: 96 mm · Tension: 12 V · Ø Flywheel outside: 49.2 mm · Performance: 65 W · Mounting type: Screws · Weight: 268 g · Number of fixing points: 2 pcs · Area of application: Tuning
413,80 EUR
swiing® ingenious pull starter | Puch E50 MVT ignition
Manufacturer: swiing® ingenious parts · Material: Plastic · Material: Steel · Ignition system: MVT Allumage · Surface: chrome-plated · Surface: raw · Color: Chrome · Color: black-matt · Ø outside: 130 mm · Height: 82 mm · Total length: 170 mm · Hole spacing: 138 mm · Width: 150 mm · Number of fixing points: 2 pcs
170,00 EUR
Hot

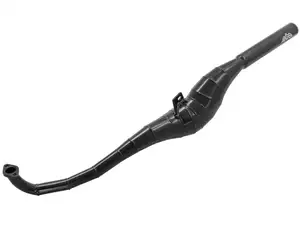

MLM exhaust "Crazy Pipe" black straight outlet | Puch
