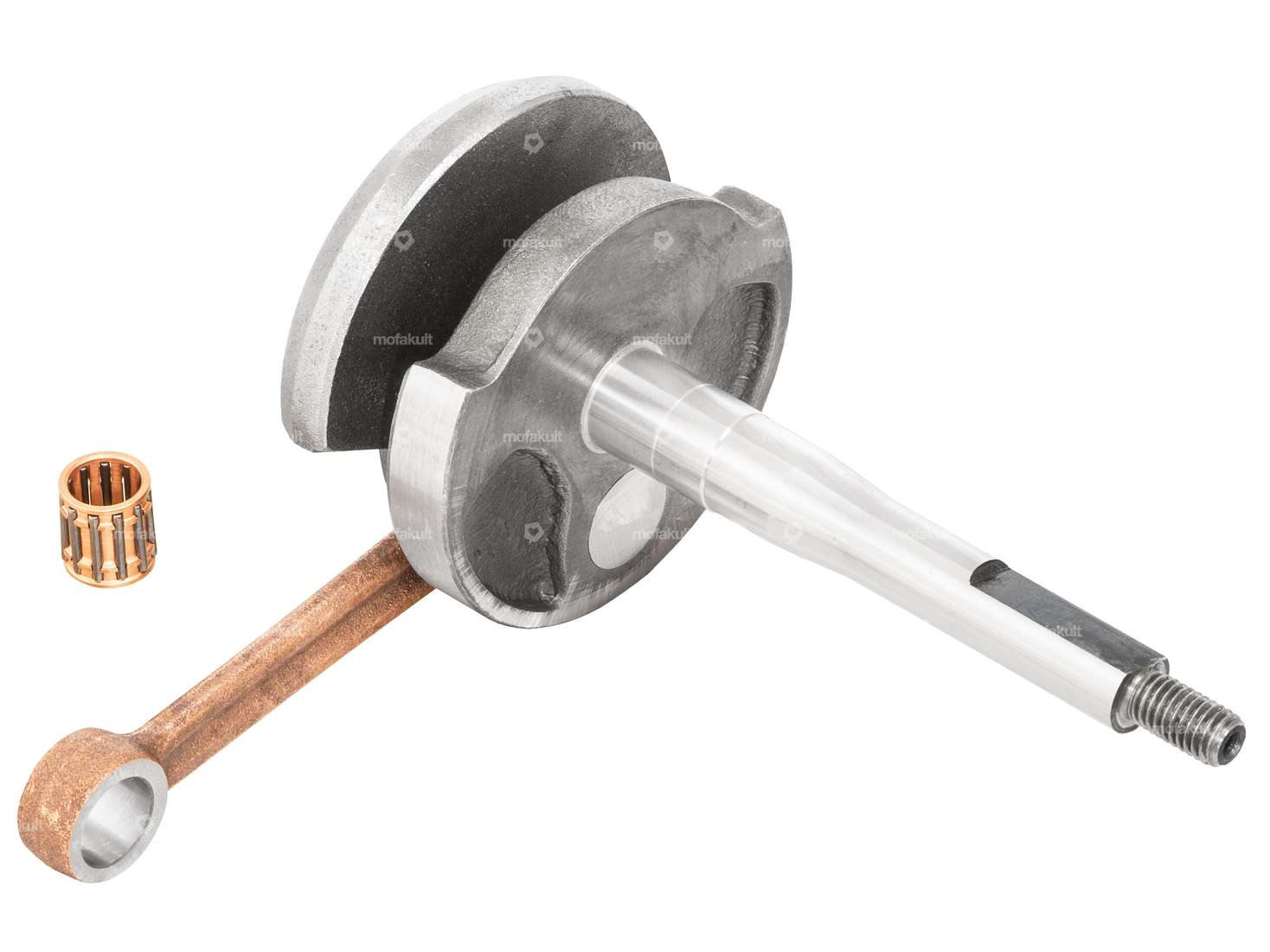

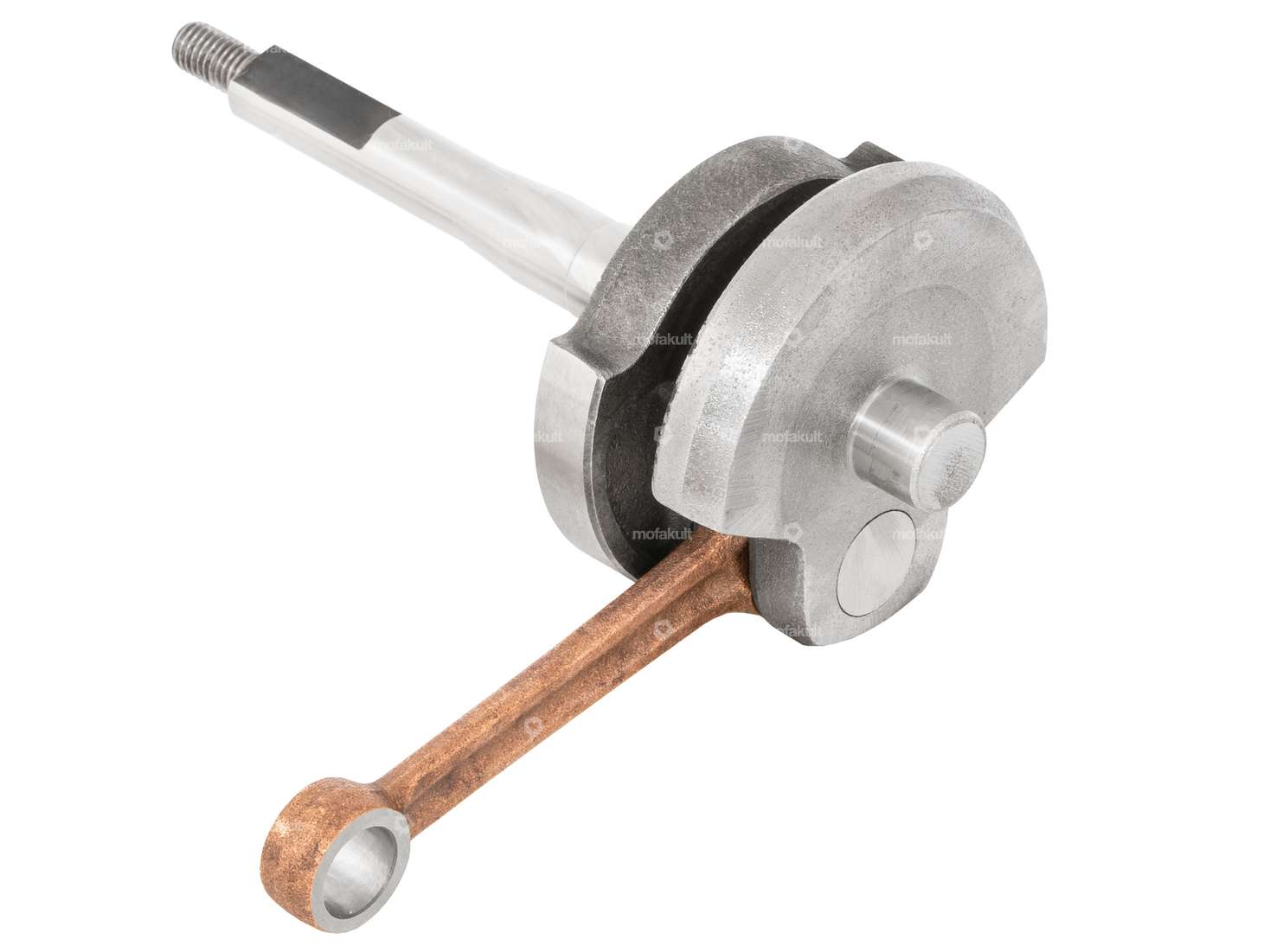

Crankshaft suitable for all Piaggio moped models (Ciao, Si, Bravo, Boxer, Grillo).
This finely balanced crankshaft fits all cylinders with 10 mm piston pins and impresses with its high-quality workmanship.

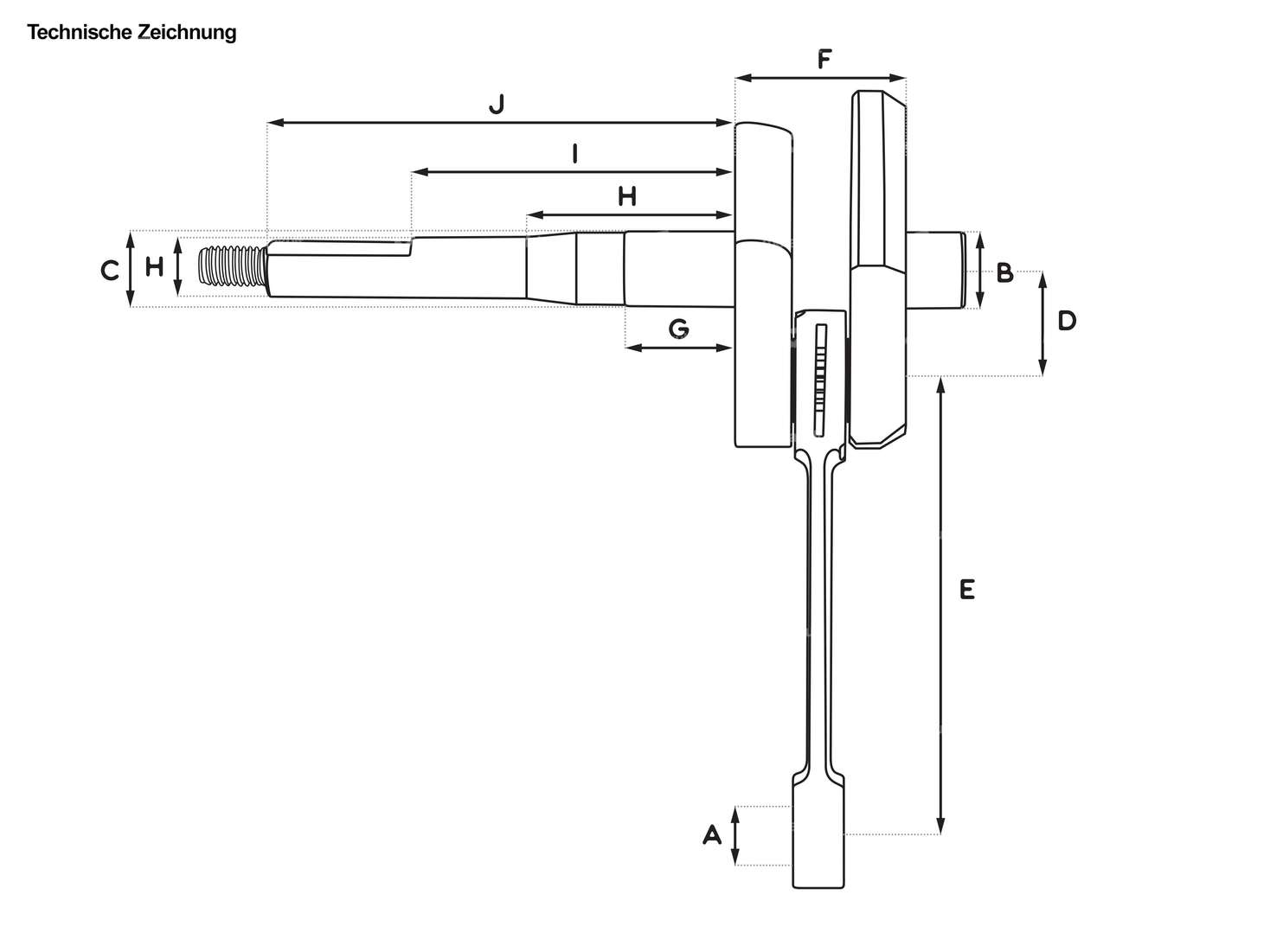

Connecting rod eye (A): 13.0 mm
Ø Bearing seat right (B): 15.0 mm
Ø Bearing seat end (C): 15.0 mm
Stroke (2xD): 43.0 mm
Sleeve length (E): 87.0 mm
Width of crank webs (F): 33.0 mm
1st shoulder (G): 21.0 mm
2nd shoulder (H): 44.0 mm
3rd shoulder (I): 63.5 mm
Total length crankpin end (J): 90.0 mm
Ø Vario / clutch pin (H): 12.0 mm
Dimension needle bearing: Ø 10 / 13 x 14.2 mm (axe 10)
Thread: M8 x 1.25 mm
Note: For assembly, a 16 x 0.5 mm shim must be inserted between the standard crankshaft and its main bearings.
When assembling, check that the pole wheel sits properly on the cone. Depending on the batch of crankshaft or pole wheel used, the key may need to be adjusted slightly.
| Dimension needle bearing | 10 / 13 x 14.2 mm (axe 10) |
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Area of application | Standard, Original |
| Ø coupling pin / vario pin | 12 mm |
| Ø piston pin (B) | 10 mm |
| Connecting rod length center-center | 87 mm |
| Total length crankpin ignition side | 90 mm, 106 mm |
| Ø crank webs | 69.7 mm |
| Ø Connecting rod eye | 13 mm |
| Thread type | M8x1.25 (standard thread) |
| Bearing seat right | 15 mm |
| Weight | 695 g |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 16 mm |
| Wide crank webs | 33 mm |
| Length 1st paragraph | 21 mm |
| Length 2nd paragraph | 44 mm |
| Length 3rd paragraph | 63.5 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Inlet control time | 130 ° |
| Control time before O.T | 77 ° |
| Control time according to O.T | 53 ° |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
