For: Puch

17193

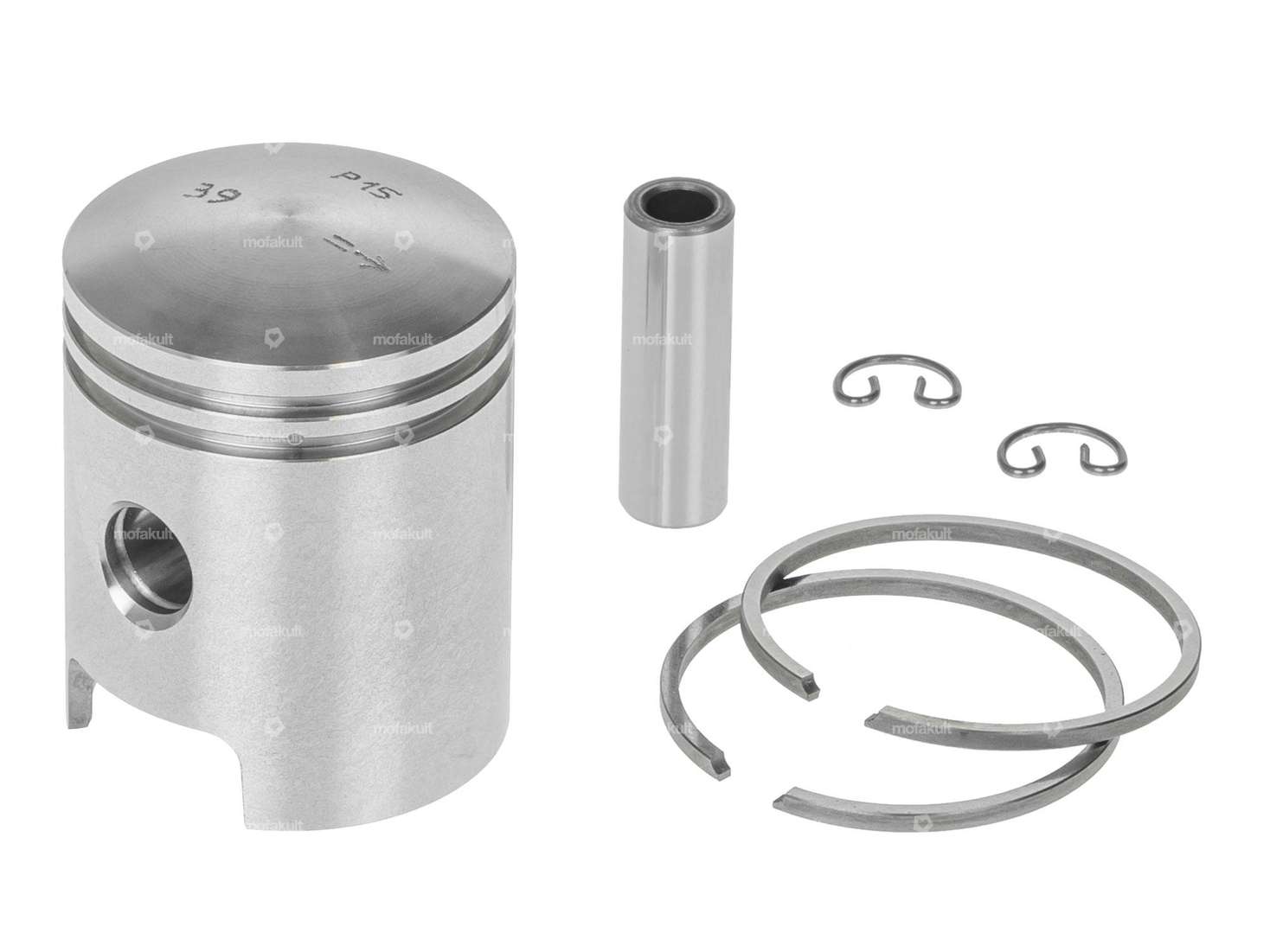

Meteor piston 38.5 mm (10 mm KoBo) oversize | Puch X30 Velux, NG-2-AH

67,60 EUR

Incl. 19% VAT.

Description

38.50 mm Meteor piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Puch Maxi S / N, Puch X30 Sport NS / NL, as well as Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Nominal diameter38 mm
Ø outside piston (A)38.4 mm
Compression height (C)22.6 mm
Curvature (D)3.5 mm
Total piston height (E)50 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Ø piston pin (B)10 mm
Piston ring height2 mm
Weight piston kit78 g
Puch

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
