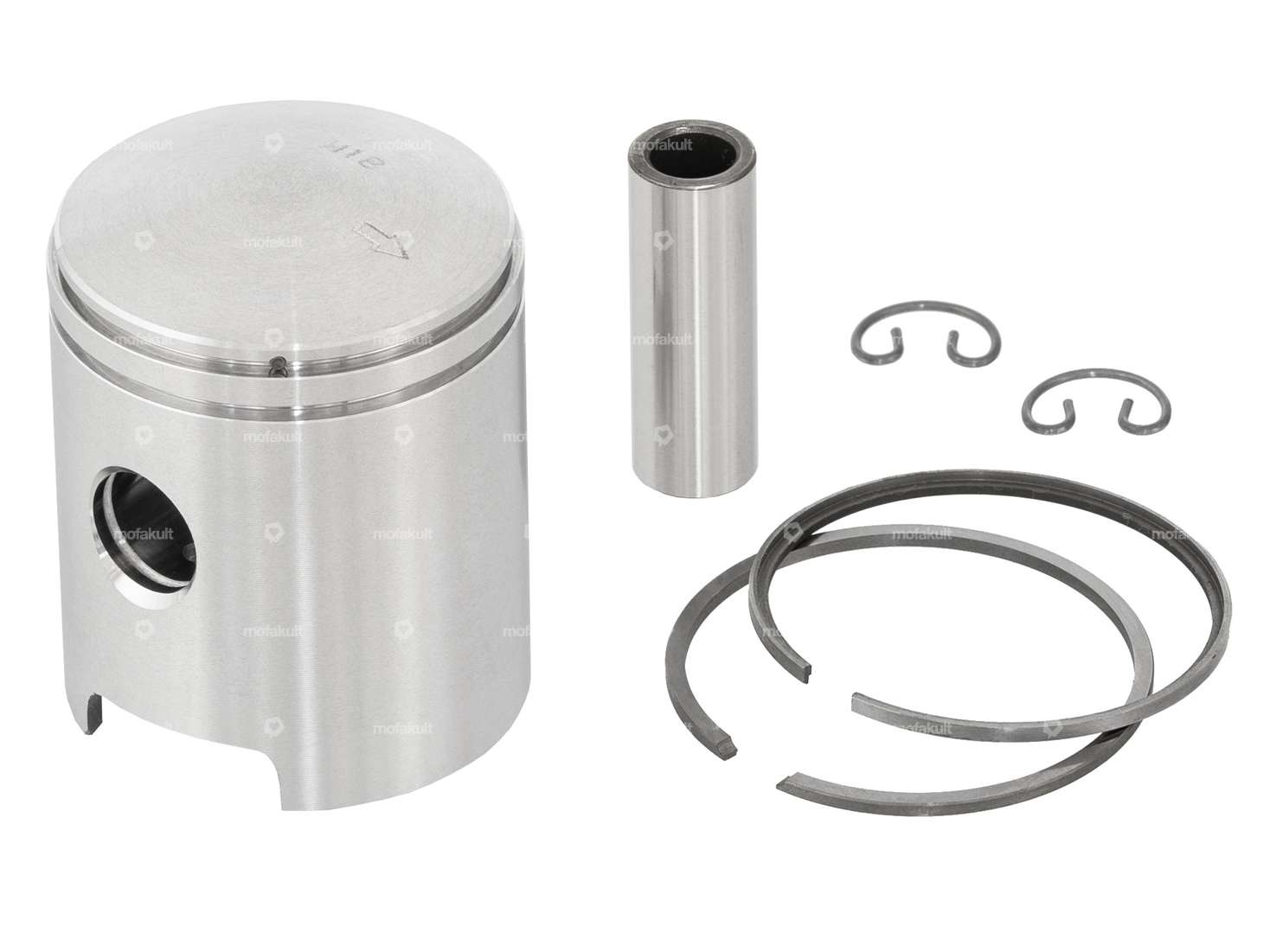

42.5 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for blown cylinders of Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Meteor |
| Nominal diameter | 41 mm |
| Ø outside piston (A) | 42.45 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 100 g |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
