Description

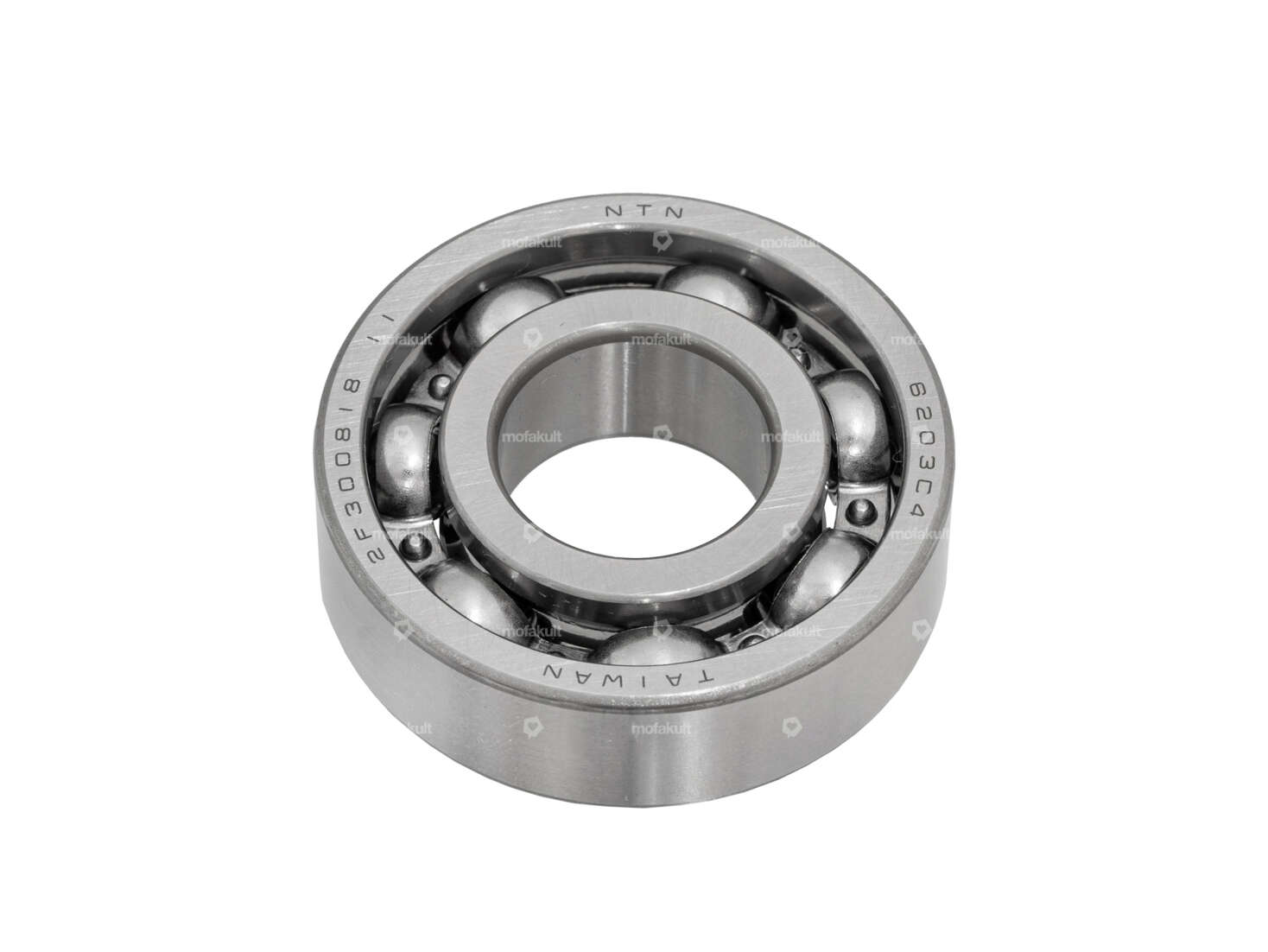

6203 C4 deep-groove ball bearings for Puch Maxi 1-speed E50 engines. You’ll need two or three of them, depending on the engine.

This ball bearing is specifically designed for heavily modified engines (C4—with more bearing play).
The bearings’ low rolling resistance is designed for high-RPM engines.

Outer diameter: 40 mm
; Inner diameter: 17 mm
; Width: 12 mm

A quality product from the Japanese manufacturer NTN.

Details

Bearing type	Deep groove ball bearing
Stock number	6203
Bearing cage	Sheet steel cage ball-guided
Inner ring width	12 mm
Manufacturer	NTN
Bearing clearance	C4
Material	Steel
Area of application	Standard
Ø inside	17 mm
Width	12 mm

Ø outside

40 mm

Suitable for the following models

Universal
Puch	E50
