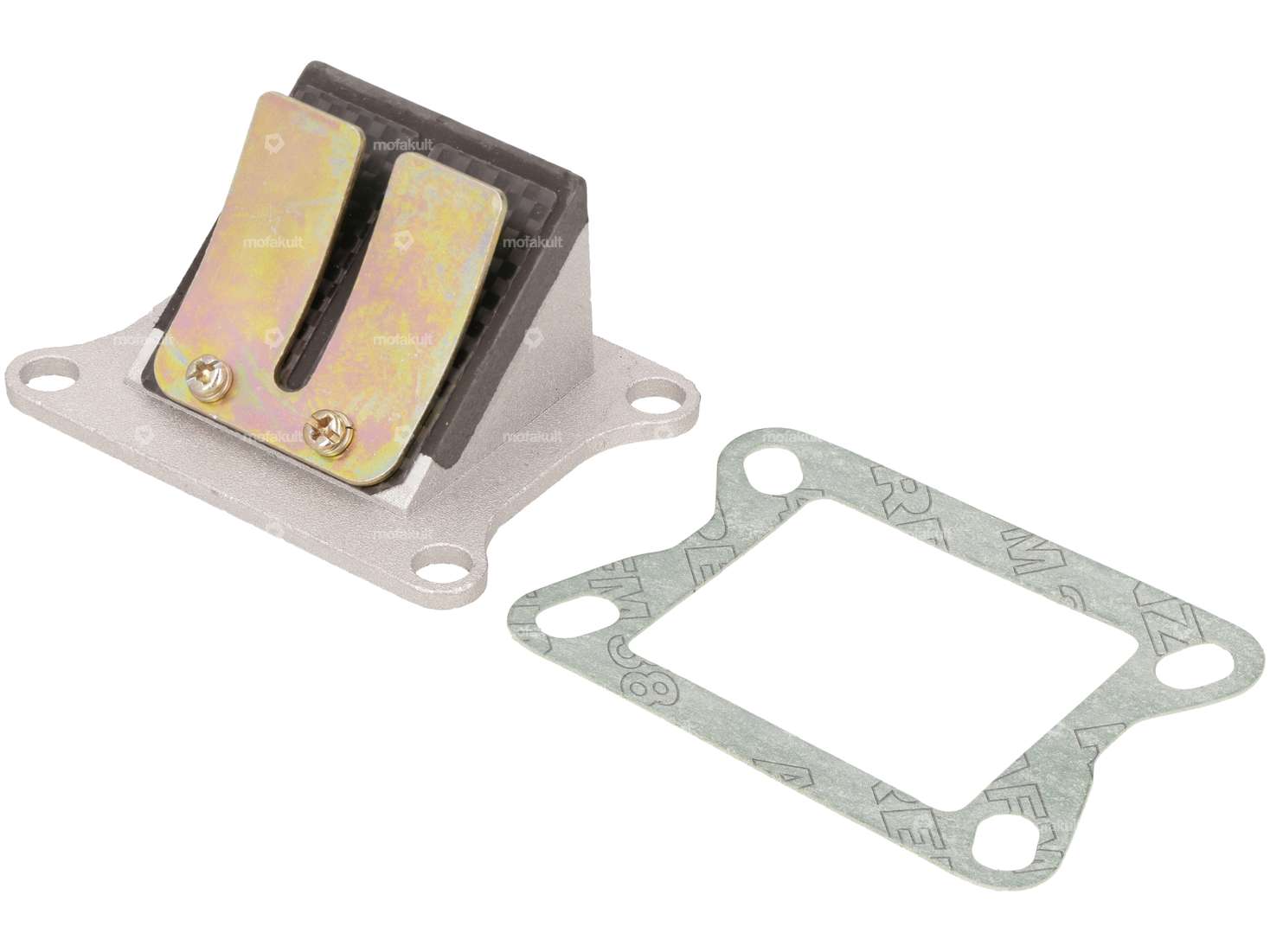

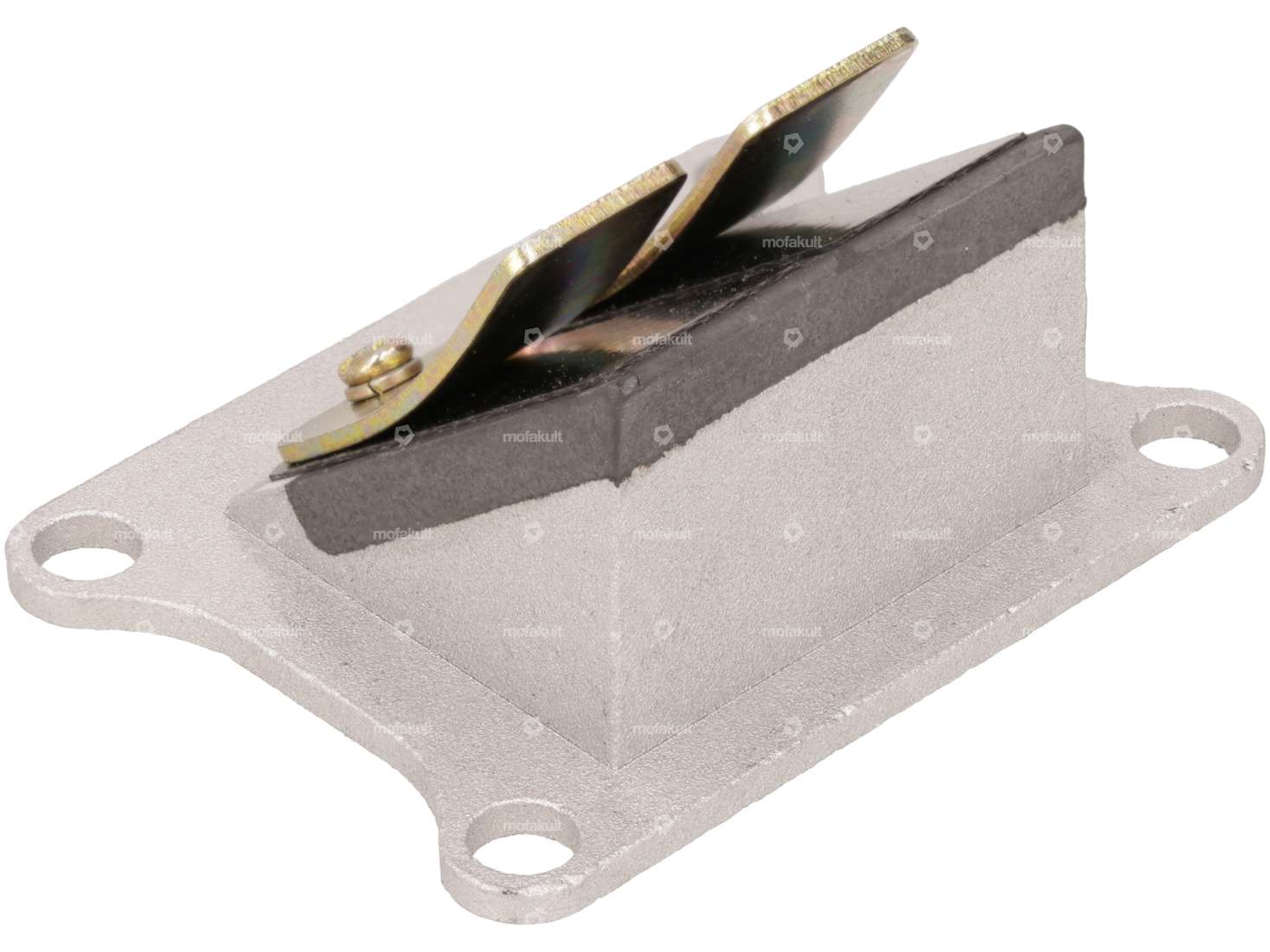

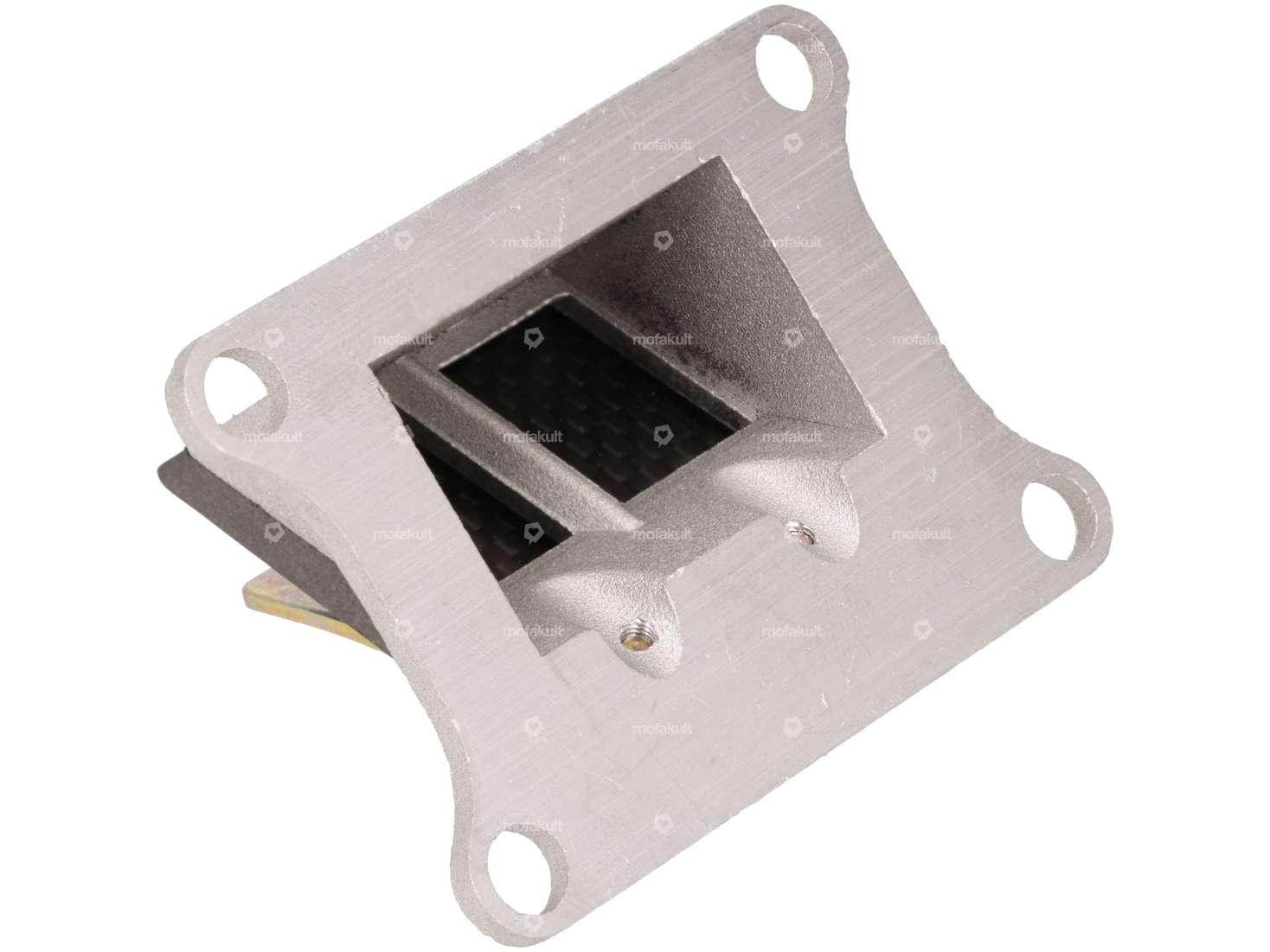

Parmakit 2-folding diaphragm insert carbon

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Ø cylinder: 45 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Area of application: Tuning

Intermediate flange cylinder Athena AJH Puch

Material: Plastic · Color: black-matt · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Area of application: Tuning · Mounting type: Screws

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning

Intake manifold Athena AJH Inox

Manufacturer: Made in Netherlands · Material: Chrome steel (colloquially known as stainless steel) · Ø External connection: 24 mm · Ø inside: 21 mm · Total height: 60 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Area of application: Tuning · Mounting type: Screws

2-folding membrane insert Athena AJH

Area of application: Tuning · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Area of application: Tuning · Place of use: Admission · Ø screw holder: 6.7 mm · Thickness: 0.5 mm · Hole pattern [mm]: 40 x 62

Magura cable clamp Ø 8 x 15 mm

Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Width across flats: 7 mm · Thread type: M6x1 (standard thread) · Manufacturer: Magura · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø outside: 8 mm · Total length: 15 mm · Thread length: 7 mm · Area of application: Standard

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Thread type: M6x1 (standard thread) · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Nipple length: 5 mm · Area of application: Standard

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Total length: 135 mm · Width: 125 mm · Candle thread: short · Height: 55 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Area of application: Tuning

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Drive: Slot · Screw head: Lens head · Thread type: M4x0.7 (standard thread) · Manufacturer: Magura · Ø Cable bushing: 1.6 mm · Number of components: 2 pcs · Material: Brass · Material: Steel · Surface: nickel-plated · Ø outside: 5 mm · Total length: 6 mm · Thread length: 4 mm

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Ø cylinder: 45 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Area of application: Tuning

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning

swiing® ingenious intake manifold Gilardoni italkit Inox

Manufacturer: swiing® ingenious parts · Material: Aluminum · Mounting type: Screws · Number of fixing points: 4 pcs · Ø inside: 21 mm · Total length: 80 mm · Total height: 55 mm · Height flange center hole: 42.5 mm · Ø External connection: 24 mm · Hole pattern [mm]: 60 x 35 · Camouflaged: No · Area of application: Tuning

Exhaust manifold 28 mm chrome | Puch Maxi S, N / X30 Sport

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 24 mm · Ø outside: 28 mm · Total length: 295 mm · Hole spacing outlet: 42 mm · Number of fixing points: 2 pcs · Mounting type: Stud bolts & nuts

DMP 45 mm cylinder kit incl. diaphragm | Puch

Nominal diameter: 45 mm · Manufacturer: DMP · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No
