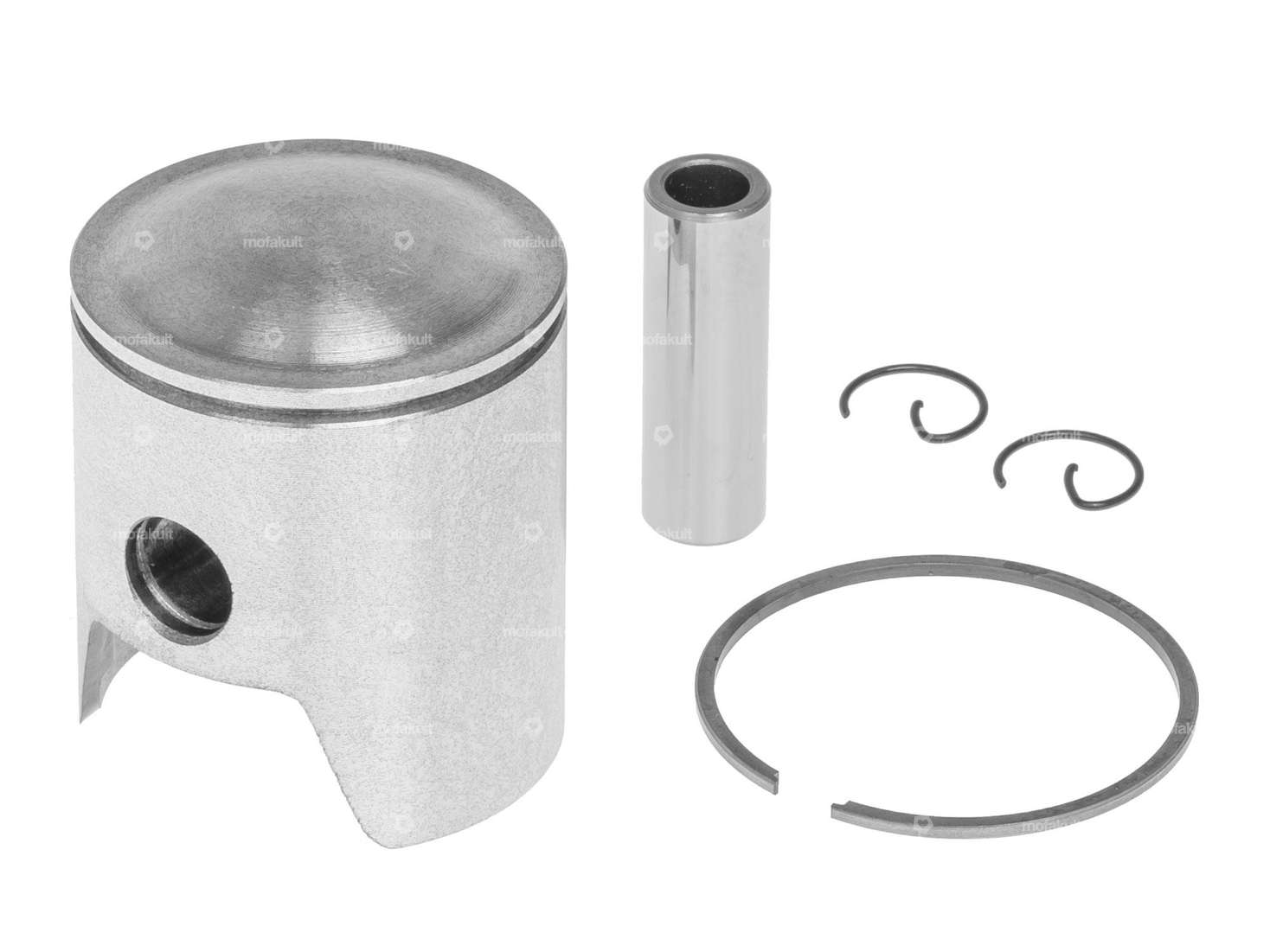

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm cylinder kits for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 45 mm |
| Manufacturer | Parmakit |
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22.38 mm |
| Curvature (D) | 4.5 mm |
| Total piston height (E) | 53.9 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Tolerance group | B |
| Weight piston kit | 98 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Height: 55 mm · Candle thread: short · Width: 125 mm · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Total length: 135 mm · Area of application: Tuning
38,40 EUR
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Manufacturer: GPO · Material: Steel · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs · Total length: 130 mm · Area of application: (Dis)assembly tool
23,20 EUR

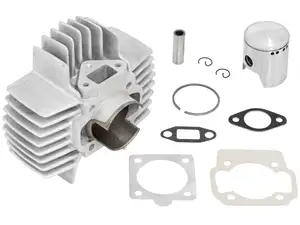

Parmakit 45 mm cylinder kit (large ribs) | Puch
Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Nominal diameter: 45 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning
279,90 EUR

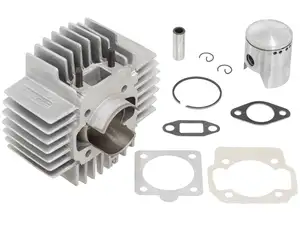

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
