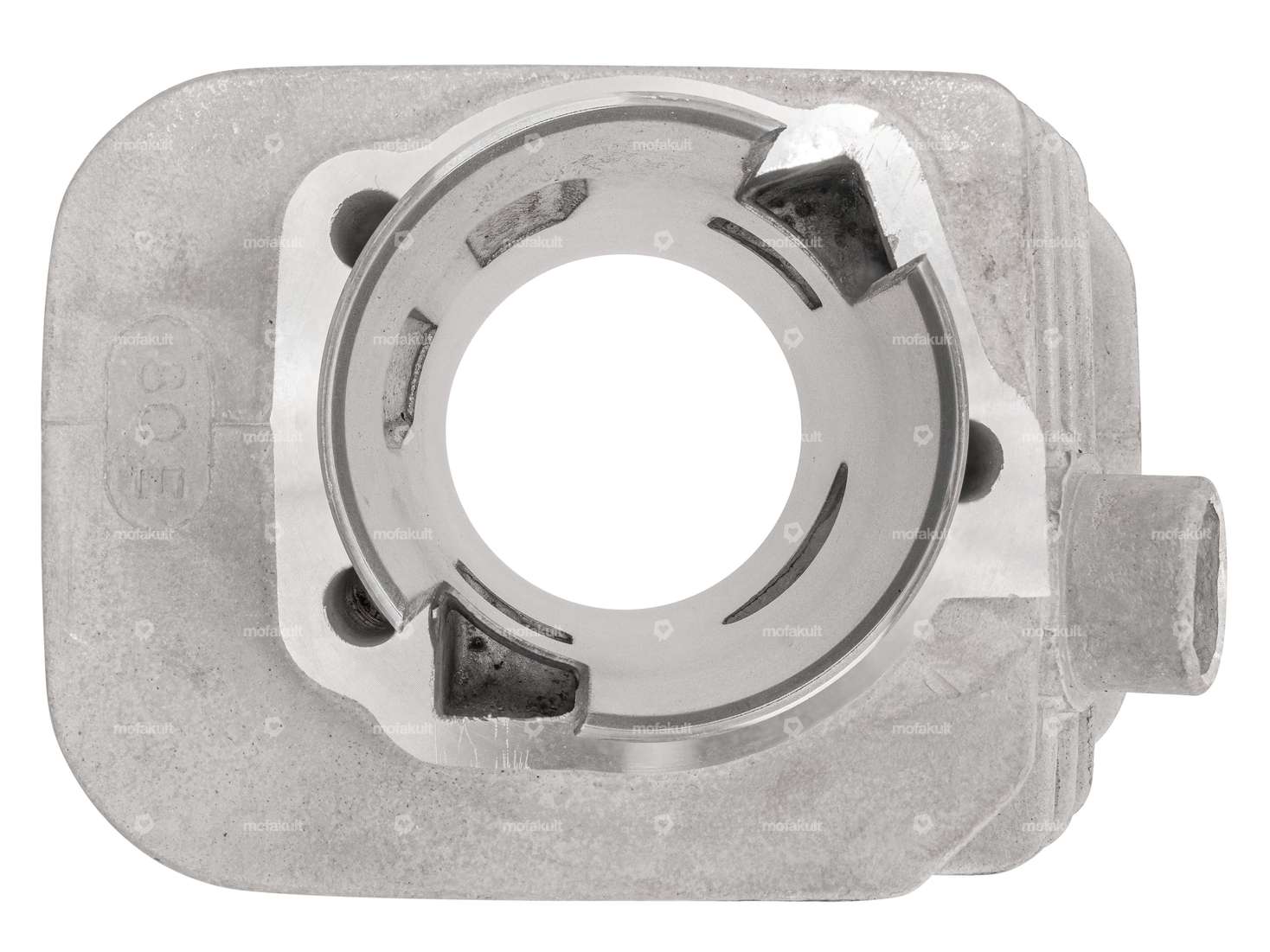

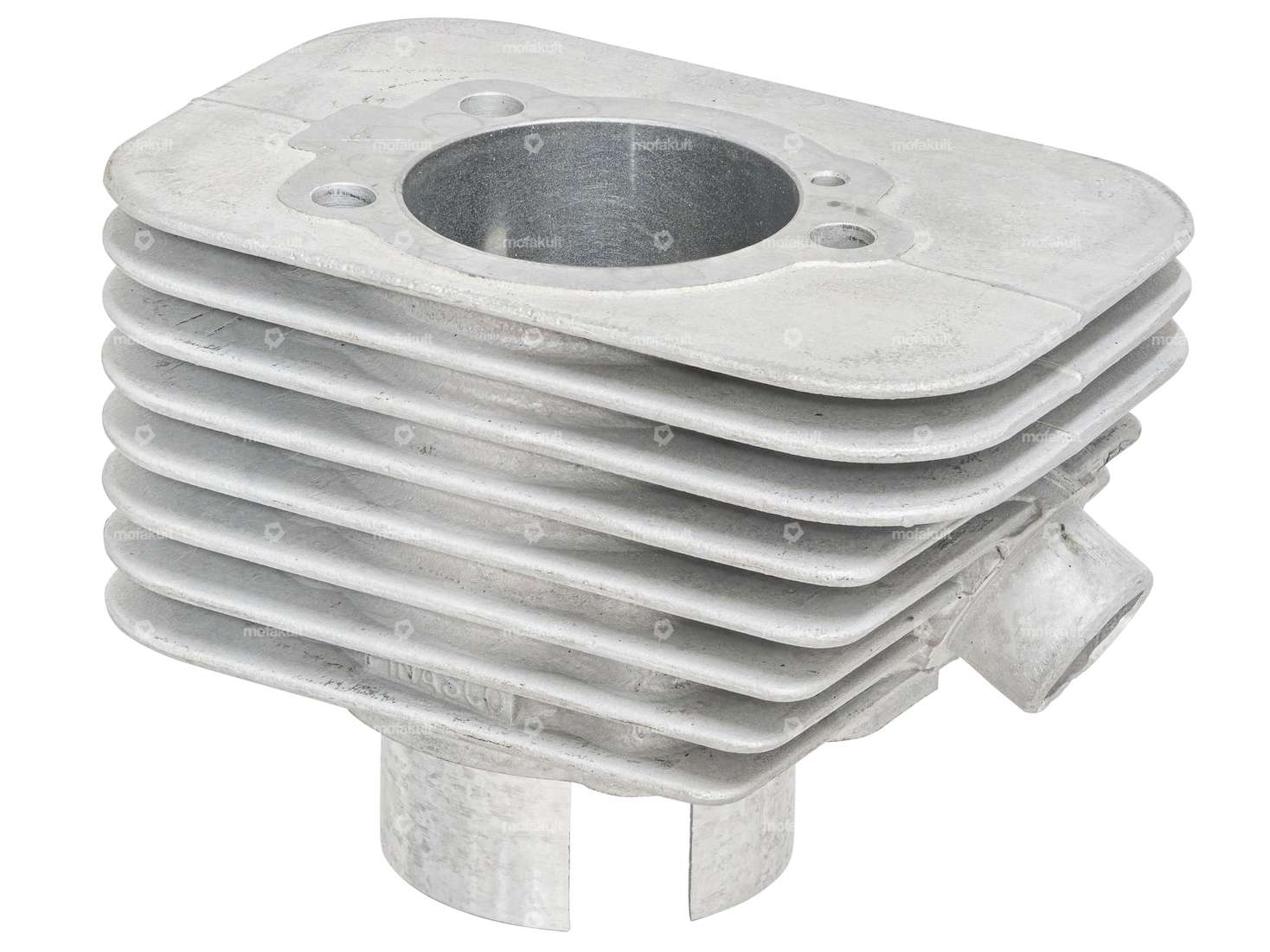

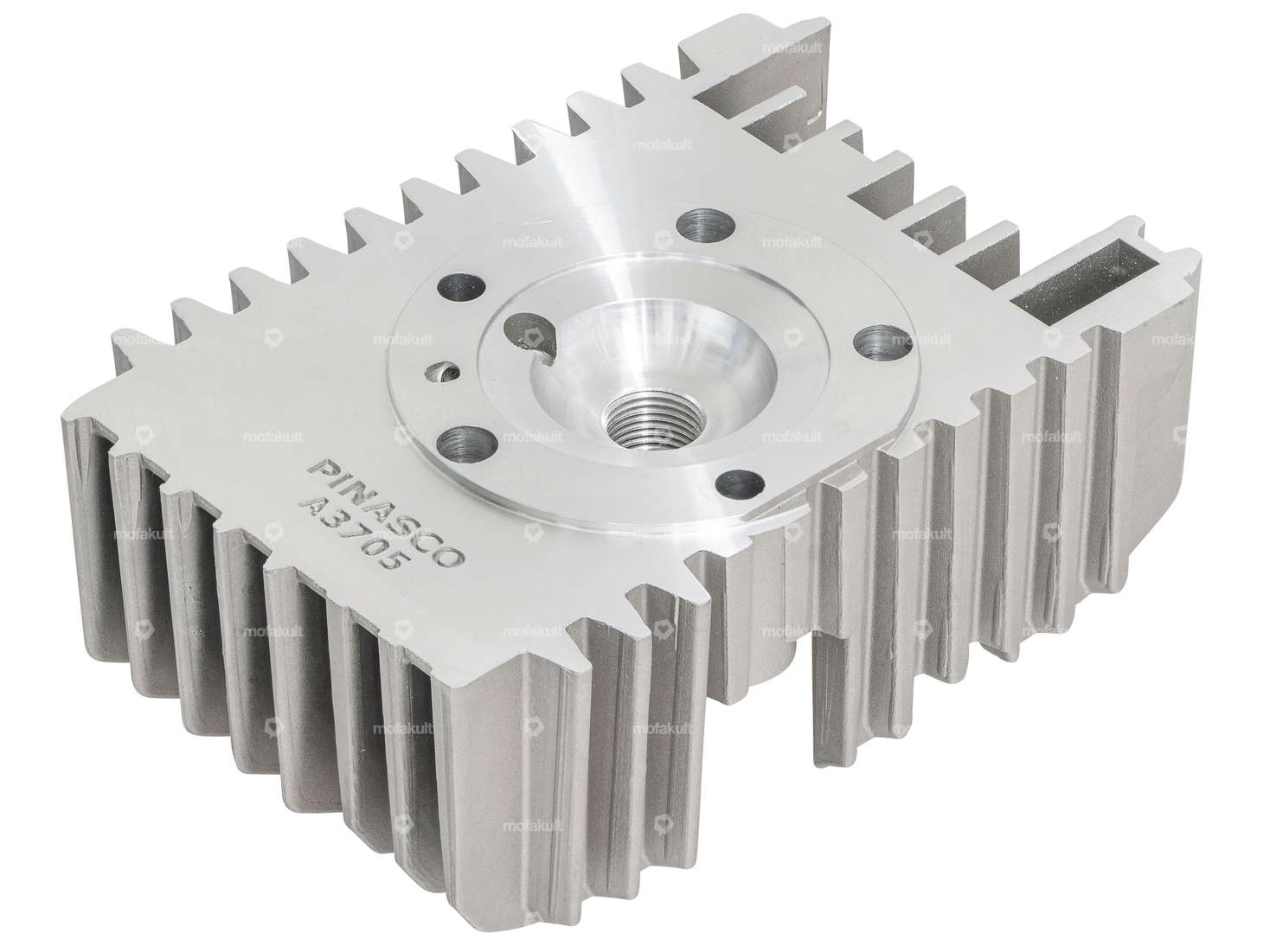

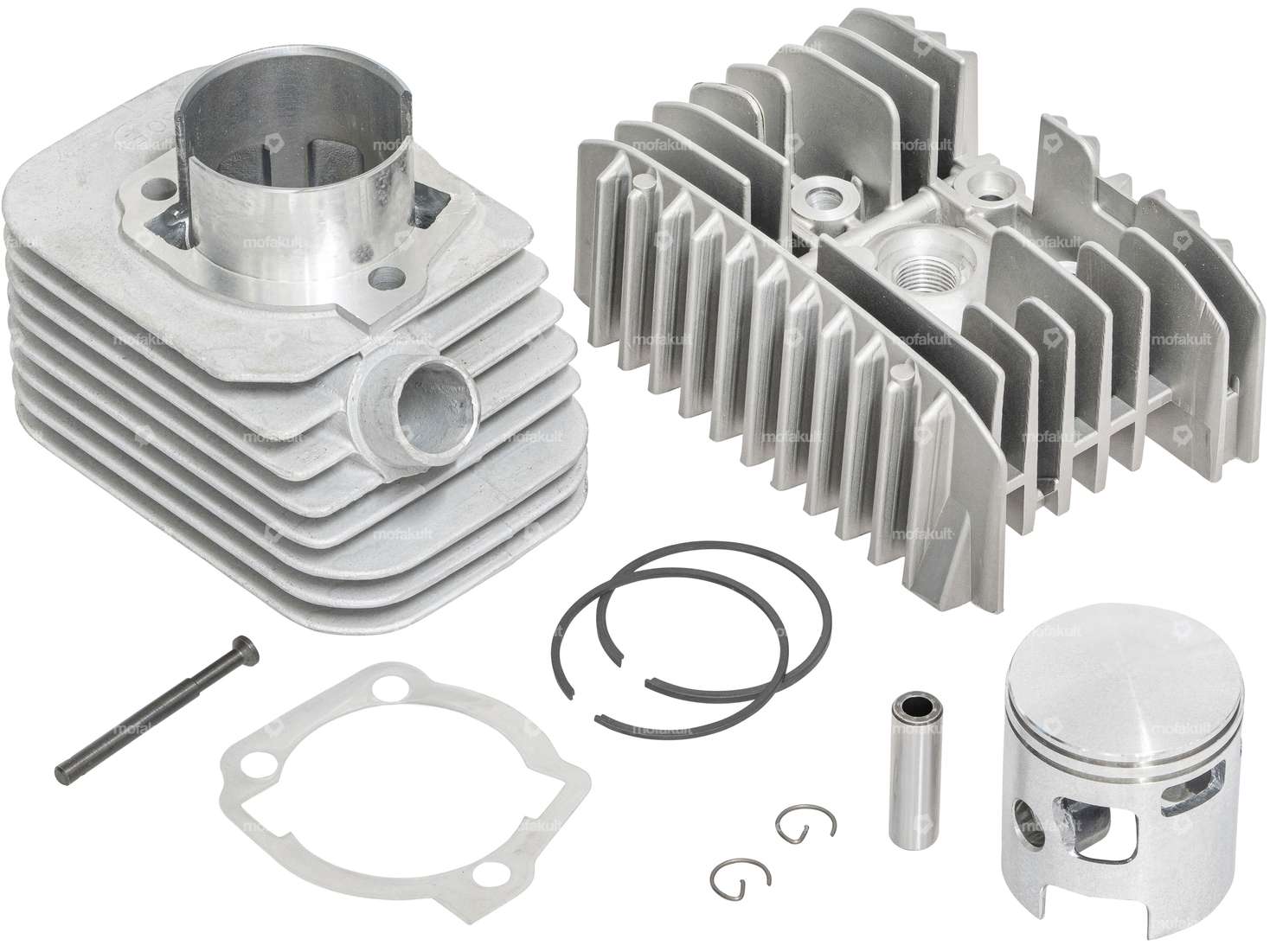

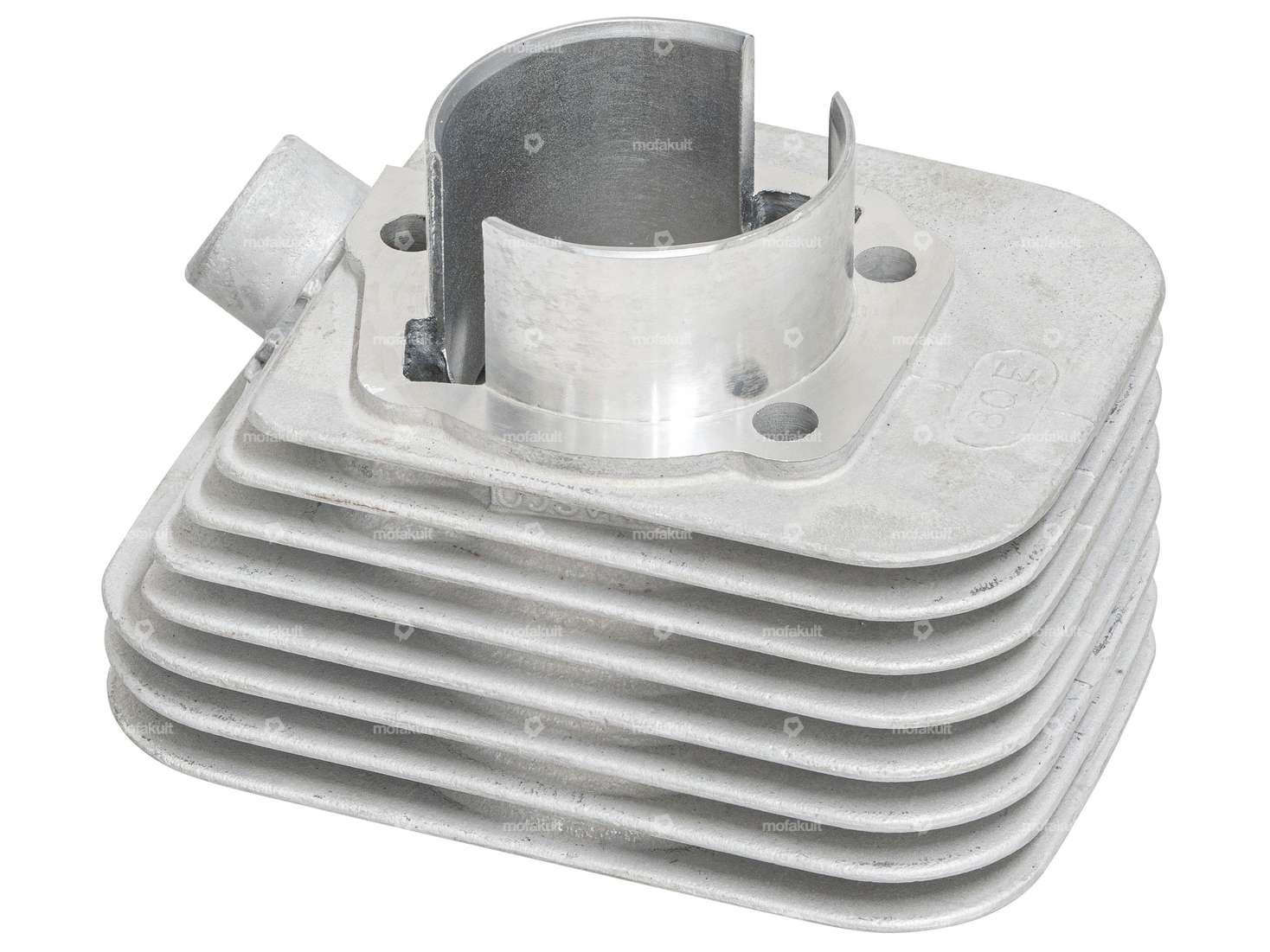

Pinasco 46 mm cylinder kit incl. head 10 mm KoBo | Piaggio SI, Bravo, Grillo

Normio M7 Stainless Steel Nut

Height: 5.5 mm · Manufacturer: Normio · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Drive: External hexagon · Width across flats: 11 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

M7x120 stud bolt | Tomos / Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Total length: 120 mm · Thread length: 25 mm

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Ø outside: 1 mm · Width: 14.5 mm · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Dimension needle bearing: 10/13 x 14.5

Athena gasket set 46 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø cylinder: 46 mm · Area of application: Tuning · Number of components: 2 pcs · Decompressor: Yes

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)

Diameter: 7.3 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9

swiing® ingenious Cylinder Head Gasket 46 mm Copper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Copper · Place of use: Cylinder head · Thickness: 0.5 mm · Nominal diameter: 46 mm · Ø inside: 47 mm · Ø cylinder: 46 - 47 mm · Ø cylinder: 46.5 - 47 mm · Ø cylinder: 47 mm

Pinasco Valve Stem Decompressor | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 3.7 mm · Ø outside: 4.5 mm · Manufacturer: Pinasco · Material: Steel · Surface: burnished · Ø External head: 6.8 mm · Total length: 52 mm

Fortune / Merrick 2.00-2.25 x 16" / 17" inner tube

Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve · Wheel size: 16 - 17 " · Wheel size: 17 " · Alternative version of the Puch OEM number: 567.060700 · Alternative version of the Puch OEM number: 901.0863 · Alternative version of the Puch OEM number: 902.0853

Fortune 2.25 x 17" tires 2P.R. Allround

Inventory-managed: No · Manufacturer: Fortune · Tire width: 2.25 " · Tire width [mm]: 57.15 · Color: black · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: N = 140 km/h · Load capacity index: 35 = 121 kg · Profile type: 2 P.R. · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

Fortune / Merrick 2.00 - 2.25 x 19" tube

Manufacturer: Fortune · Tire width: 2 - 2.25 " · Tire width: 2.25 " · Tire width [mm]: 50.8 - 57.15 · Width: 2 " · Width: 2 1/4 " · Tire height [%]: 100 · Wheel size: 19 " · Old designation: 23 x 2 " · Old designation: 23 x 2.25 " · Valve type: TR4 Auto valve

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Total length: 1280 mm · Wheel size: 17 " · Width: 23 mm · Color: blue

NewFren clutch plates (1A quality) | Puch X30

Manufacturer: NewFren · Area of application: Standard · Number of slats: 2 pcs

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Ø axle: 5 mm · Number of fixing points: 1 pcs · Ø mounting hole: 4.5 mm · Area of application: Original · Material: Steel · Cable available: No · Piaggio OEM number: 103133

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Height: 26 mm · Ø outside: 18 mm · Ø mounting hole: 4.4 mm · Total height: 31 mm · Piaggio OEM number: 102939

Normio Wedge 12.1 x 4.9 x 3 mm

Manufacturer: Normio · Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

Polini Rennvariomat | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Gearbox type: Vario · Number of weights: 6 pcs · Number of weights: 12 pcs · Weight Standard weights: 4.4 g · Weight Standard weights: 5.6 g · Ø Weights: 16 mm · Length Weights: 13 mm · Ø External variator: 90 mm

Pinasco crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Weight: 708 g · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Area of application: Racing · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 13.5 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 32.5 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 146 ° · Control time before O.T: 88 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs
