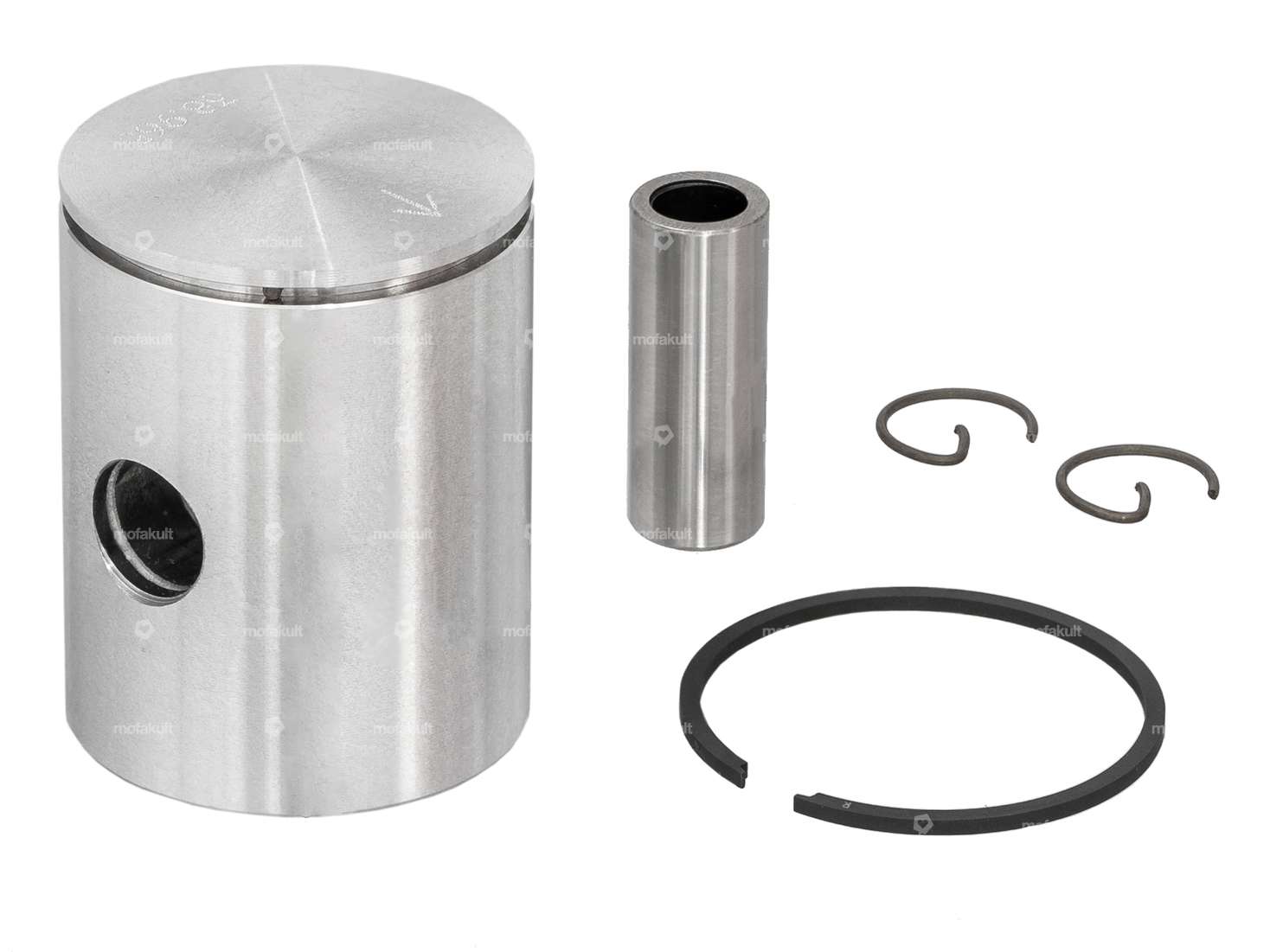

39.0 mm piston with a rectangular piston ring with internal fuse (IS) suitable for Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 or Alpa Black River small motorcycles which have a Zündapp type 247 engine installed.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
| Nominal diameter | 39 mm |
| Ø outside piston (A) | 38.955 mm |
| Compression height (C) | 26.3 mm |
| Curvature (D) | 1.3 mm |
| Total piston height (E) | 51.65 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Tolerance group | C |
| Piston weight | 84 g |
| Zündapp | Belmondo (Typ 247-71) Mofa 25 (M 25) / Moped M 50 Bergsteiger (Typ 247-434) |
