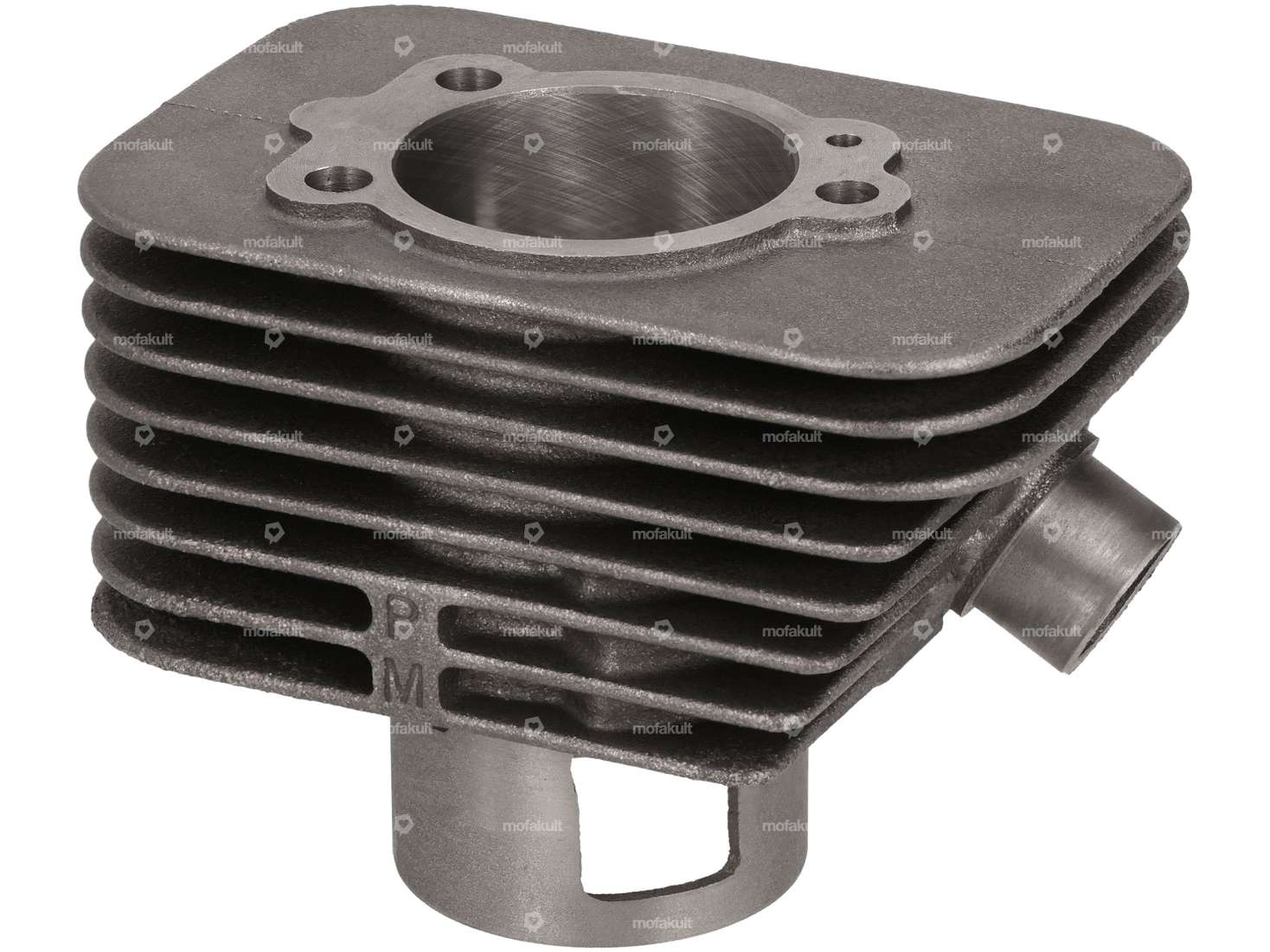

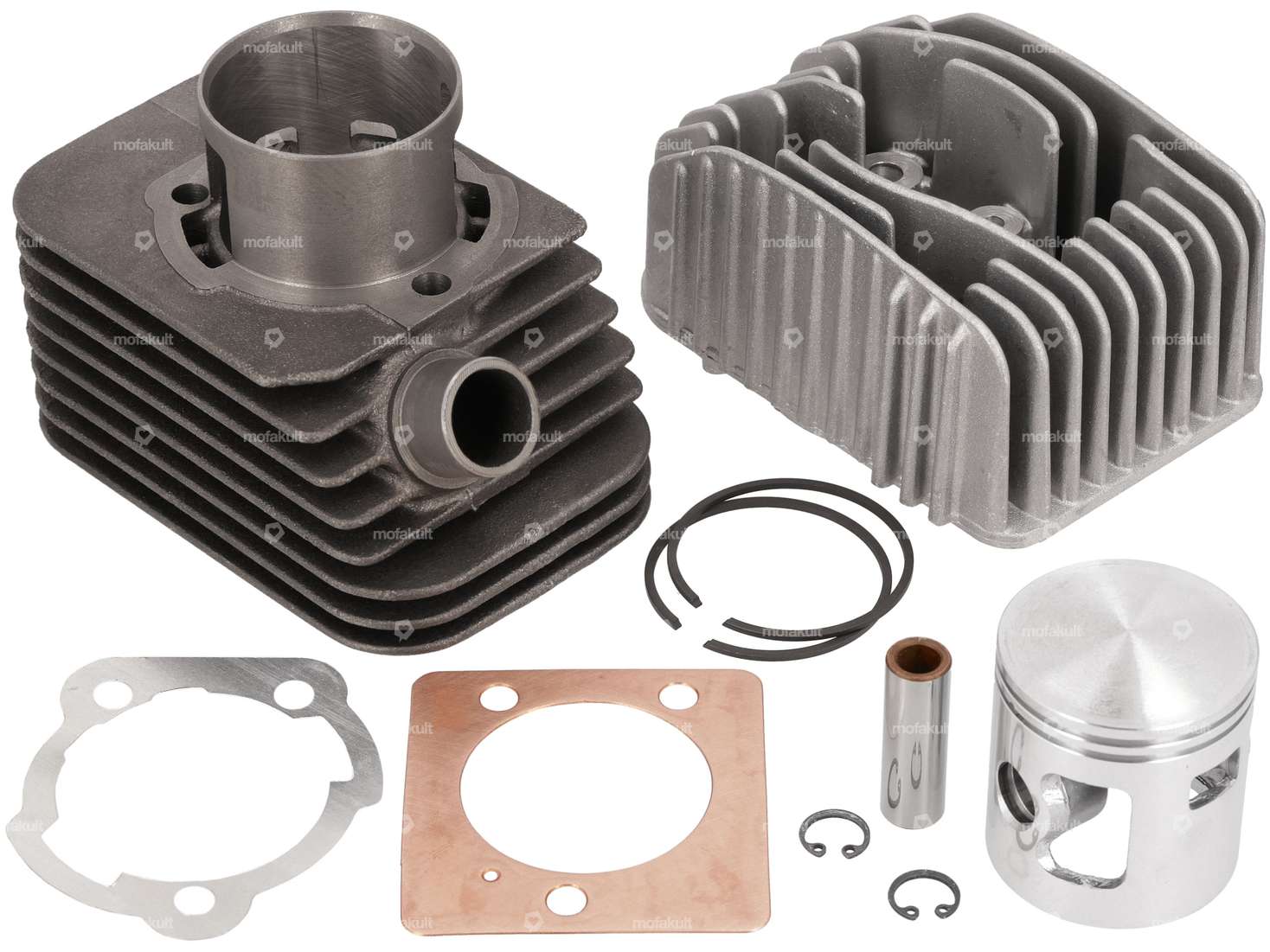

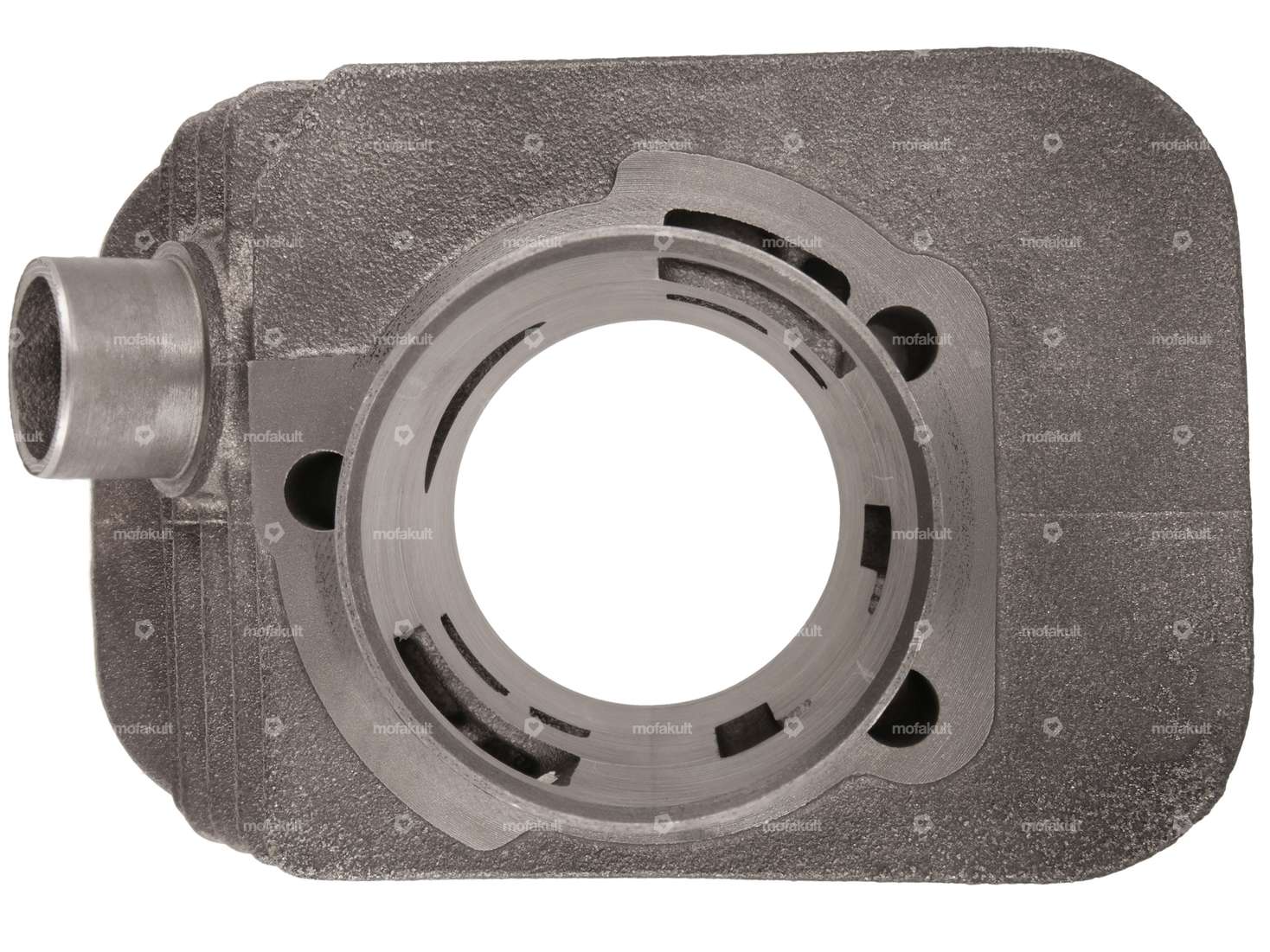

46 mm cylinder kit with 12 mm piston pins, compatible with your Piaggio Ciao, Bravo, and Boxer moped.
Excellent workmanship, durability, and exceptional value for the money make this cylinder kit one of the most popular on the market.

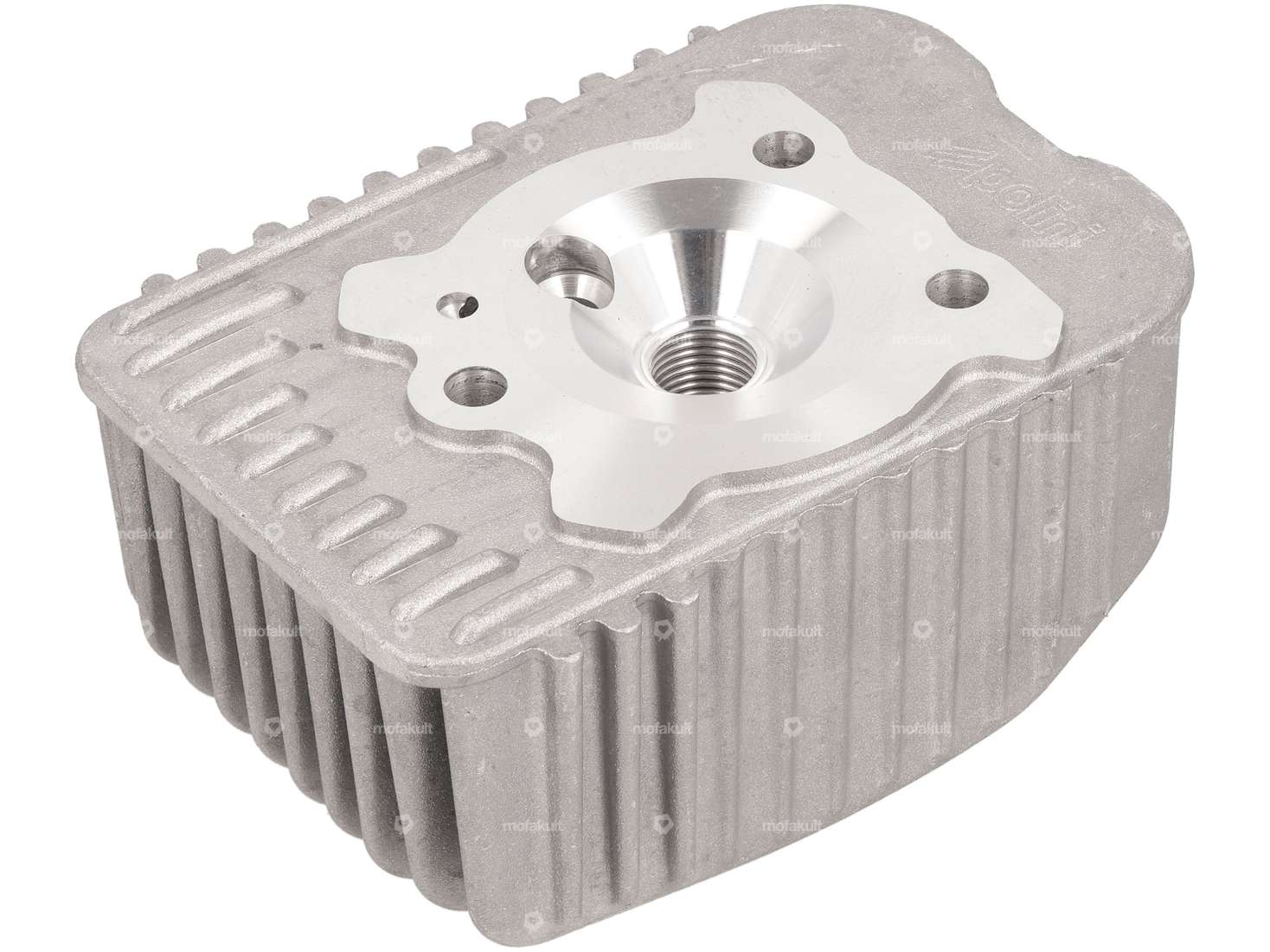

In addition to the cylinder, piston, piston pins, and piston pin clips, the cylinder head is also included in the package.
Note: Please pay attention to the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You can find additional components useful for installation in the accessories section.
A quality product from the Italian manufacturer Polini.
| Nominal diameter | 46 mm |
| Manufacturer | Polini |
| Material | Gray cast iron |
| Camouflaged | No |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Area of application | Tuning |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 12 mm |
| Decompressor | Yes |
| Outlet type | clamped |
| Piaggio | Ciao - P , SC , PX , C24 Bravo / Super Bravo Boxer |
