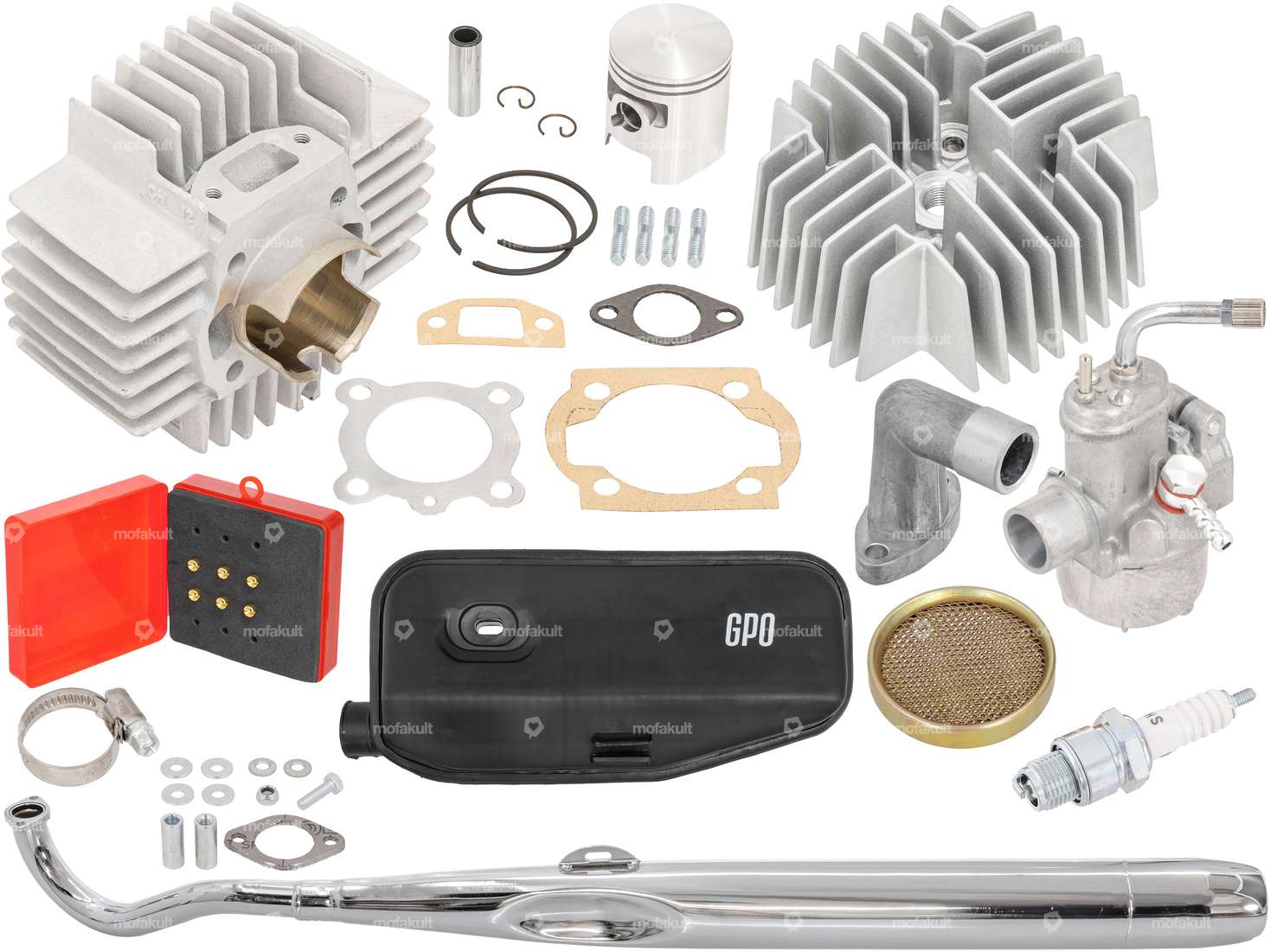

44 mm tuning kit with 65 ccm displacement, compatible with your Puch Maxi S or Maxi N moped equipped with an E50 or air-cooled ZA50 engine.
The individual components are finely tuned to work together and guarantee optimal power delivery. Furthermore, the selected parts are virtually indistinguishable from the original parts.
The cigar-style muffler can be installed via plug-and-play without any modifications to the crankset.
Please select the desired exhaust for Maxi S or Maxi N, the corresponding mounting kit, and the intake manifold from the drop-down menu.
Notes:
To install the cylinder or piston, you must remove the alignment pin (protruding cam in the housing). Please observe the installation direction during assembly. The piston is inserted with the arrow pointing toward the exhaust on the exhaust side.
With this complete set, you’ll save money compared to buying the items separately.
A sophisticated product from the premium brand swiing® that meets the highest standards.
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Inlet window: 23.6 x 20 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 44 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete · Alternative version of the Puch OEM number: 349.9.15.300.0, 349.6.15.400.0, 349.7.15.700.0, 349.4.15.500.0, 349.4.15.000.0, 349.4.15.300.0, 349.1.15.100.0, 349.8.15.400.0, 349.2.15.800.0
Manufacturer: GPO · Camouflaged: Yes · Color: black · Filter type: Racing screen · Ø Internal connection: 20 mm · Area of application: Tuning, Racing
Nozzle size: 64, 66, 68, 70, 72, 74 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
| Puch | E50 ZA50 (air-cooled) |
