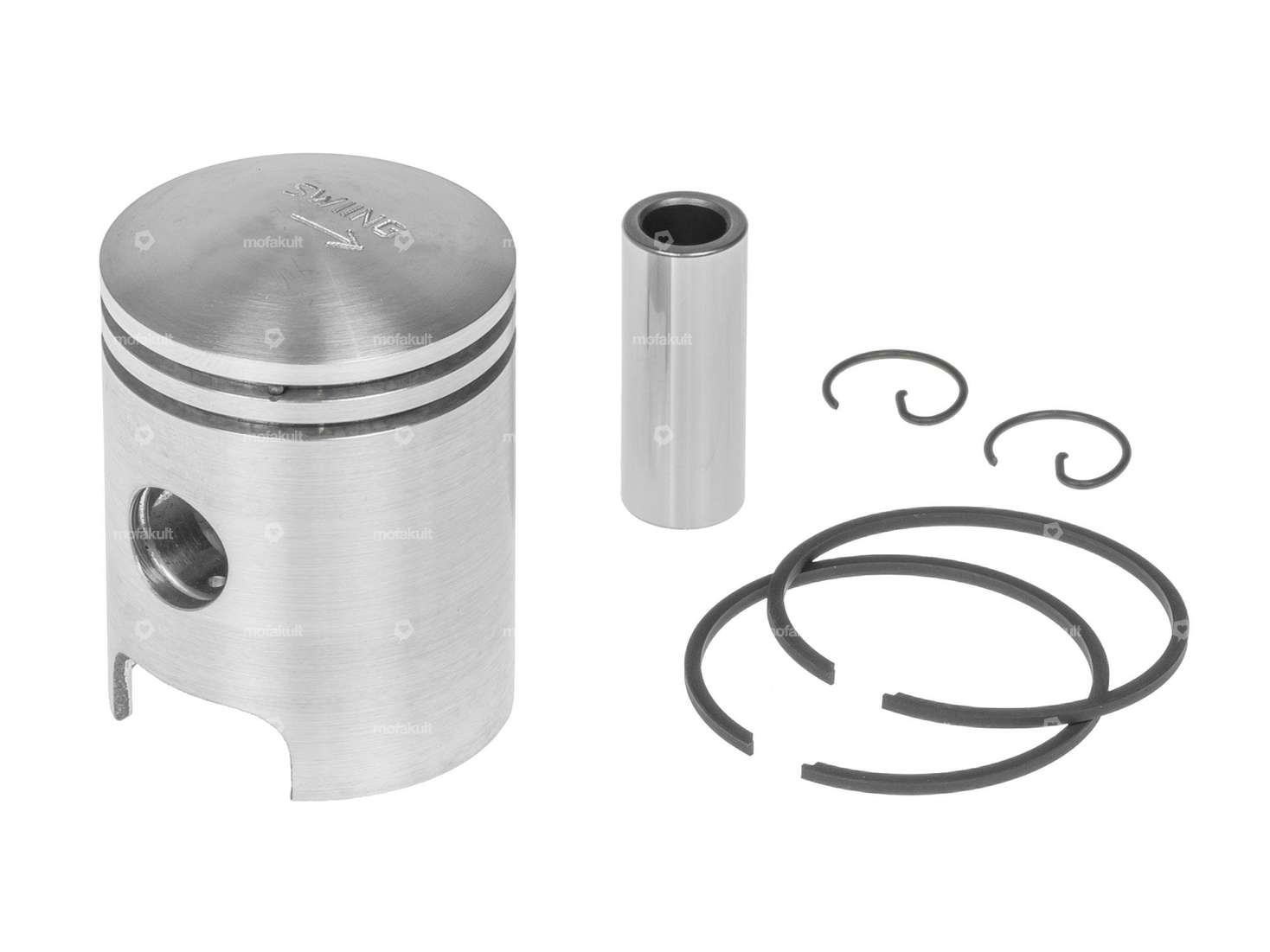

38.0 mm piston with two rectangular piston rings with internal fuse (IS) suitable for your moped / moped with 38 mm swiing cylinder kit with seal.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | swiing® revival parts |
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.96 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.6 mm |
| Curvature (D) | 2.5 mm |
| Total piston height (E) | 50.45 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Weight piston kit | 74 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
