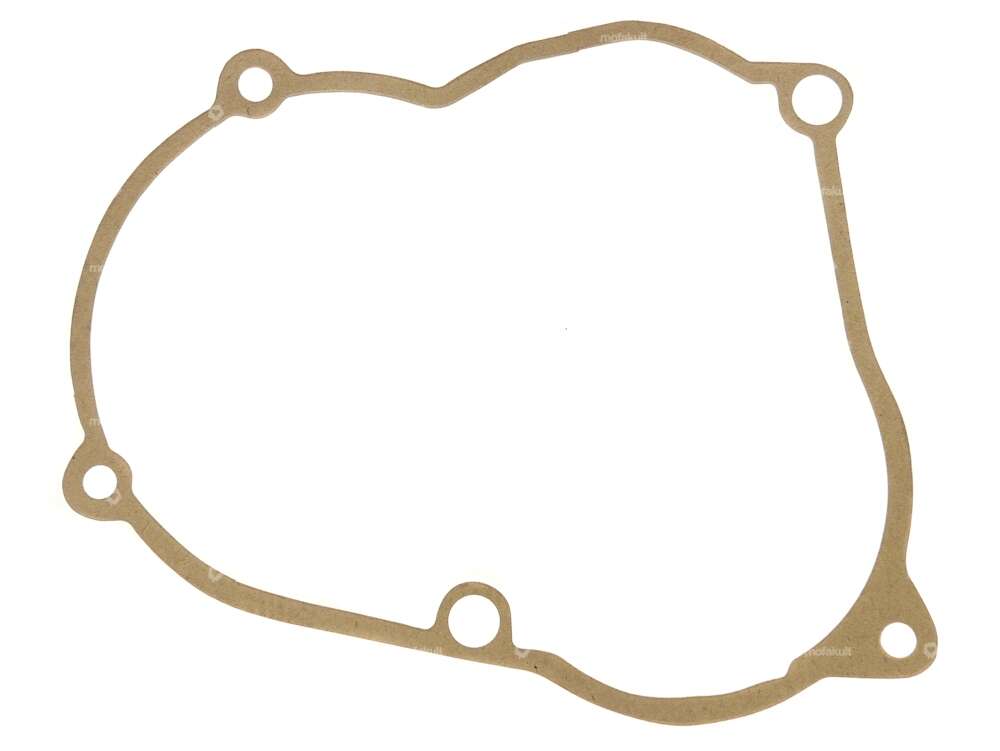

Gasket gearbox cover kickstarter (1A quality) | Puch Maxi

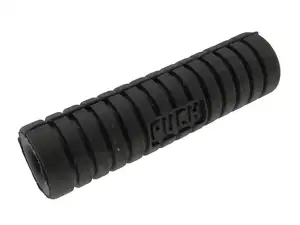

Rubber kickstarter original | Puch

Material: Rubber

Outlet seal Ø 27 Steel ring

Place of use: Outlet · Thickness: 2.1 mm · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Ø outlet inside: 27 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Total length: 30 mm · Strength class: 10.9

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Cable length: 2200 mm · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Ø inside: 16 mm · Ø outside: 25 mm · Material: NBR · Surface: rubberized · Width: 7 mm

Spring kickstarter Puch E50

Spring design: Torsion spring

Spring Kickstarter | Puch E50

Material: Plastic

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Weight: 968 g · Manufacturer: swiing® ingenious parts · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Thread length: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm

swiing® revival thrust washer set Ø 15 / 17 mm | Puch E50

Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 22 mm · Ø outside: 24 mm · Thickness: 1.1 mm · Thickness: 1.3 mm · Thickness: 1.5 mm · Thickness: 1.7 mm · Area of application: Standard · Material: Steel · Surface: hardened & ground
