Piaggio engine & housing

Needle bearing 10/13/14.2 Piston pin

Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 10 mm · Ø outside: 13 mm · Dimension needle bearing: 10/13 x 14.2

M8 copper ring 8.3/11.8/0.8

Material: Copper · Thickness: 0.8 mm · Ø inside: 8.3 mm · Ø outside: 11.8 mm

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Area of application: (Dis)assembly tool · Surface: burnished · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs

Malossi needle bearing 12/15/15

Manufacturer: Malossi · Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Width: 15 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 15

swiing® revival needle roller bearing 10/13/14.5 piston pin

Manufacturer: swiing® revival parts · Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Ø inside: 10 mm · Ø outside: 13 mm · Dimension needle bearing: 10/13 x 14.5

Adjustable reamer Ø 11.25 - 12.25 mm (1A quality)

Manufacturer: Made in Germany · Area of application: Special tool · Width: 4.8 mm · Diameter: 11.25 mm

Adjustable reamer Ø 9.25 - 10.25 mm (1A quality)

Manufacturer: Made in Germany · Area of application: Special tool · Total length: 115 mm · Width: 4.1 mm · Diameter: 9.25 mm

Flange nut M8 galvanized (10 strength)

Material: Steel · Drive: External hexagon · Nut type: Flange nut · Surface: blue galvanized · Thread type: M8x1.25 (standard thread) · Width across flats SW: 13 mm · Height: 12 mm · Strength class: 10

SKF 6202 Ball bearing 15/35/11

Manufacturer: SKF · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 11 mm · Ø inside: 15 mm · Ø outside: 35 mm

SKF 6002 2RSH Ball bearing 15/32/9

Manufacturer: SKF · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6002 · Inner ring width: 9 mm · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 9 mm · Ø inside: 15 mm · Ø outside: 32 mm · Ball bearing closed: Yes

Ripp-Lock flange nut M8 galvanized (strength 10)

Material: Steel · Drive: External hexagon · Nut type: Flange nut · Surface: blue galvanized · Thread type: M8x1.25 (standard thread) · Width across flats SW: 13 mm · Height: 12 mm · Strength class: 10

swiing® revival trays 6202 for bearing puller

Manufacturer: swiing® revival parts · Peel-off tray: 6202 · Area of application: (Dis)assembly tool

SKF Speedi-Sleeve Ø 15 mm shaft repair sleeve

Material: Chrome steel (stainless steel) · Manufacturer: SKF · Number of components: 2 pcs

Mazzucchelli needle bearing 10/13/14.5 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Ø inside: 10 mm · Ø outside: 13 mm · Dimension needle bearing: 10/13 x 14.5

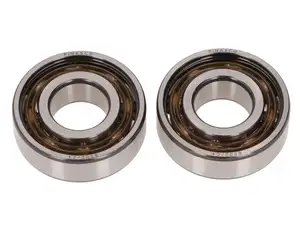

Pinasco 6202 T9 C4 ball bearing 15/35/11 polyamide cage pair

Manufacturer: Pinasco · Material: Polyamide (PA) · Material: Steel · Bearing cage: Plastic cage ball-guided · Stock number: 6202 · Bearing clearance: C4 · Area of application: Tuning · Bearing type: Deep groove ball bearing · Width: 11 mm · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: No

swiing® ingenious bearing press-on plunger Ø 35 mm

Material: Aluminum · Material: Steel · Manufacturer: swiing® ingenious parts · Area of application: Special tool · Surface: anodized · Total length: 52.5 mm · Ø inside: 15 mm · Ø outside: 35 mm · Number of components: 2 pcs · Ø Pin: 15 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Bearing type: Needle roller and cage assembly · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548

swiing® revival needle roller bearing 12/15/14.2 original

Manufacturer: swiing® revival parts · Bearing cage: Sheet steel cage · Bearing type: Needle sleeve · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 155 001 · Tomos spare part no.: 035548

swiing® revival crankshaft holder (for mounting the bearings)

Material: Steel · Manufacturer: swiing® revival parts · Area of application: Special tool · Surface: blue galvanized · Width: 80 mm · Thickness: 6 mm · Height: 130 mm

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Ø outside: 1 mm · Ø inside: 13 mm · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

GPO low cam Athena / Jasil crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 14.5 mm · Manufacturer: GPO · Material: Steel · Ø Puncture: 3 mm · Ø inside: 14.4 mm · Ø outside: 22 mm · Ø outside: 23 mm · Total length: 9.5 mm

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Area of application: Racing · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Number of gears: 1 pcs

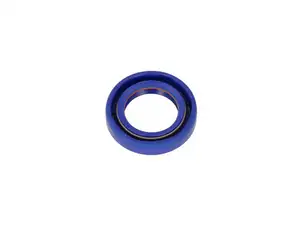

Polini oil seal FKM / PTFE crankshaft | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Polini · Material: Viton · Surface: rubberized · Area of application: Racing

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Height: 13 mm · Width across flats SW: 15 mm

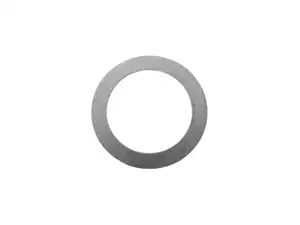

Shim 15/21/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 15 mm · Ø inside: 15 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Surface: blank / oiled · Ø outside: 21 mm · Material: Steel

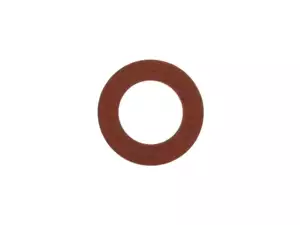

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Motor housing · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Thickness: 1 mm · Manufacturer: Piaggio · Material: Fiber

Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Piaggio · Material: FPM - Rubber · Surface: rubberized

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 16 mm · Nominal diameter: 16 mm · Ø outside: 22 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

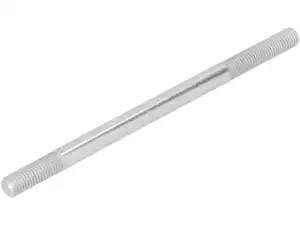

swiing® revival stud bolt M7x120 - 10.9 strength | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: M7x1 (standard thread) · Total length: 120 mm · Thread length: 25 mm · Strength class: 10.9

Gearbox gasket | Piaggio Ciao, SI, Bravo, Boxer

Material: Sealing paper · Area of application: Standard · Surface: blank · Place of use: Gear hub · Thickness: 0.2 mm

Engine gasket | Piaggio Ciao, SI, Bravo, Boxer

Material: Sealing paper · Color: black · Total length: 125 mm · Width: 95 mm · Thickness: 0.2 mm · Ø inside: 75 mm · Number of fixing points: 7 pcs · Ø outside: 85 mm · Number of components: 1 pcs · Piaggio spare part no.: 112967

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Oiled paper · Place of use: Cylinder base

Jasil crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Material: Steel · Area of application: Racing · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Thread length: 13.5 mm · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.8 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Weight: 716 g · Number of gears: 1 pcs

Jasil crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Area of application: Standard · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 43.5 mm · Length 3rd paragraph: 64 mm · Number of gears: 1 pcs

Polini Speed Engine electronic ignition housing | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Manufacturer: Polini · Stock number: 6202 · Crankshaft stroke: 43 mm · Surface: sandblasted · Color: silver · Total length: 215 mm · Width: 175 mm · Ignition type: Electronic · Height: 104 mm

Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Manufacturer: Polini · Stock number: 6202 · Crankshaft stroke: 43 mm · Surface: sandblasted · Color: silver · Total length: 215 mm · Width: 175 mm · Ignition type: Breaker · Height: 104 mm

Malossi gasket set 46.5 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Area of application: Tuning · Ø cylinder: 46.5 mm · Number of components: 2 pcs · Decompressor: Yes

Polini cylinder base gasket 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Area of application: Racing · Ø cylinder: 43 mm · Place of use: Cylinder base

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Area of application: Original · Area of application: Standard · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Thread length: 16 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Weight: 698 g · Number of gears: 1 pcs

Polini gasket set Speed Engine engine case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Area of application: Tuning · Number of components: 3 pcs

Connecting rod bushing crankshaft 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Material: Brass · Manufacturer: Made in Italy · Area of application: Standard · Ø piston pin (B): 12 mm · Dimension needle bearing: 12 / 14 x 12 mm (axe 12)

Malossi gasket set 43 mm cylinder kit

Manufacturer: Malossi · Area of application: Tuning · Ø cylinder: 43 mm · Number of components: 2 pcs · Decompressor: Yes

Cover plate cylinder cover black | Piaggio, Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Surface: blank · Color: black · Total length: 95 mm · Width: 63 mm · Height: 90 mm · Number of fixing points: 2 pcs

Athena gasket set 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 43 mm · Number of components: 2 pcs · Decompressor: Yes

Malossi MP-One engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Manufacturer: Malossi · Surface: sandblasted · Color: silver · Total length: 220 mm · Width: 104 mm · Ignition type: Breaker · Height: 174 mm · Ø inside: 24 mm

Flywheel rubber small up to 1975 | Piaggio Ciao, Bravo, Boxer

Manufacturer: Made in Italy · Material: Rubber · Color: black · Total length: 42 mm · Width: 23 mm · Piaggio spare part no.: 102931

Ignition cams for flywheel original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Total length: 10.5 mm · Nominal diameter: 14.5 mm · Ø Puncture: 3 mm · Ø inside: 14.4 mm · Ø outside: 22 mm · Ø outside: 23 mm

Engine housing square intake | Piaggio

Material: Aluminum · Stock number: 6202 · Surface: sandblasted

Pinasco side inlet set Ø 42 mm | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Manufacturer: Pinasco
