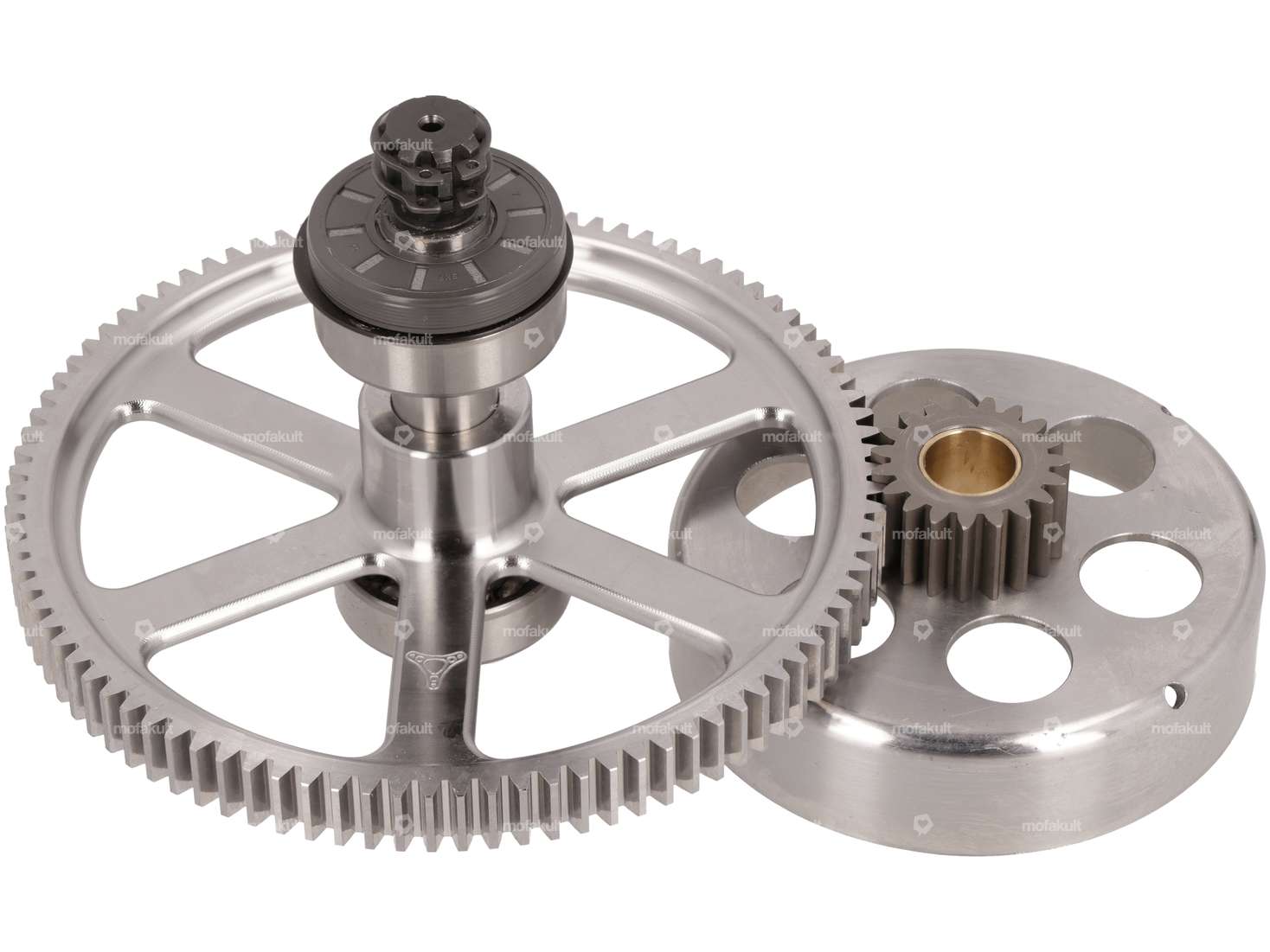

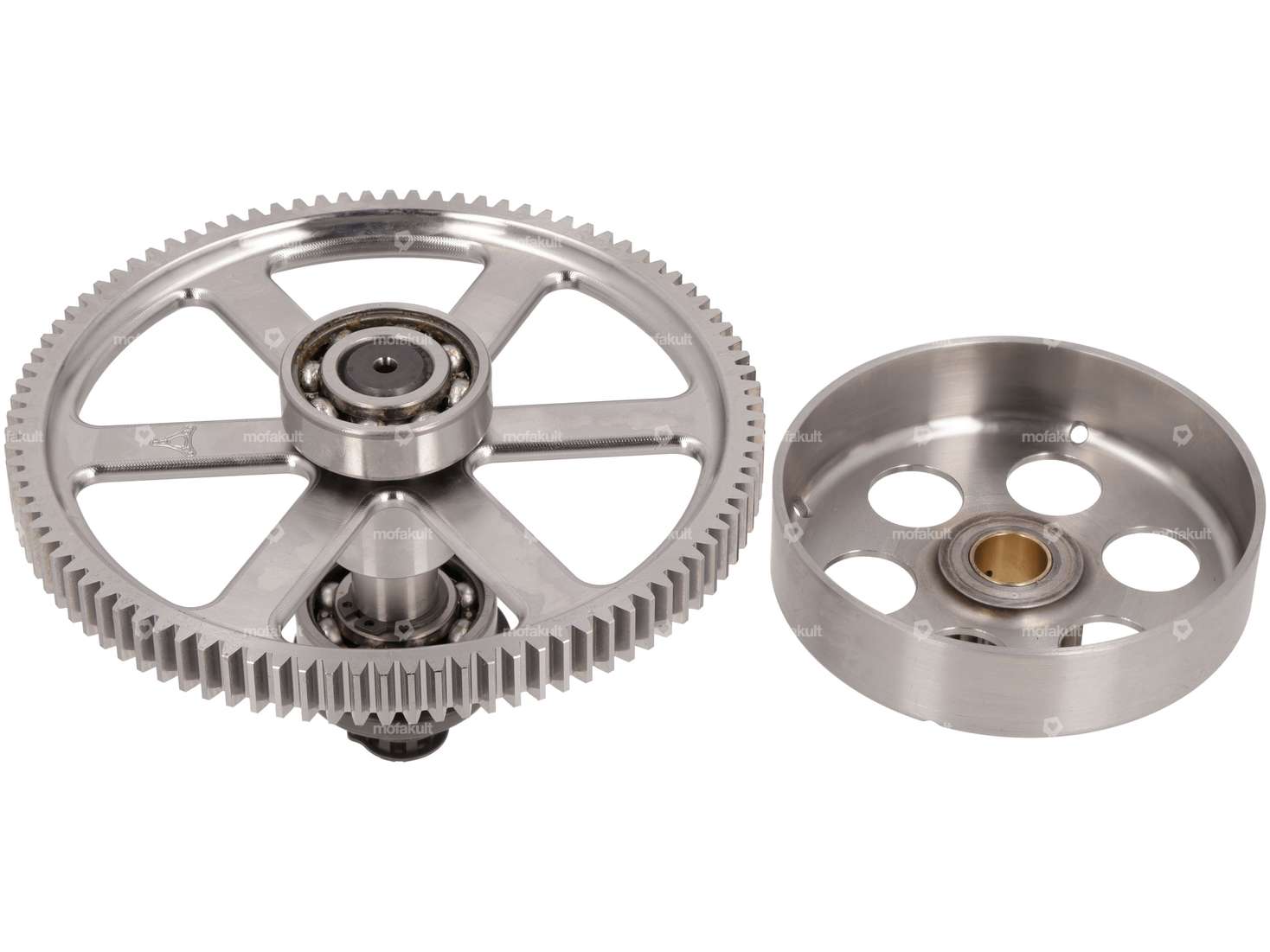

ASP clutch basket & spur gear set 19:94 teeth Kickstart CNC | Puch E50

HK Clutch "Racing" Kickstarter Aramid | Puch E50

Manufacturer: HK Clutches · Material: Steel · Material addition: Aluminum · Area of application: Racing · Number of jaws: 3 pcs · Ø inside: 13.6 mm · Ø inside: 14.6 mm · Ø outside: 93 mm · Thickness: 20.3 mm · Recording type: Cone mounting · Number of springs: 3 pcs

MBR clutch basket 18 teeth Racing straight short | Puch E50

Manufacturer: MBR · Area of application: Tuning · Number of teeth: 18 pcs · Toothing type: helical toothed

MBR spur gear 94 teeth "Racing" straight | Puch E50

Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Recording type: Interlocking · Ø outside: 145 mm · Toothing type: straight toothed · Number of teeth: 94 pcs · Ø axle: 17 mm

MBR clutch basket & spur gear 18:94 teeth Racing straight short | Puch E50

Manufacturer: MBR · Toothing type: straight toothed · Number of teeth: 18 pcs · Number of teeth: 94 pcs · Area of application: Tuning

Clutch "Racing" Special | Puch Maxi Kickstarter

Number of jaws: 3 pcs · Area of application: Tuning

ASP clutch basket & spur gear set 19:94 teeth CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Toothing type: straight toothed · Area of application: Tuning

ASP clutch basket & spur gear set 19:94 teeth Kickstart CNC | Puch E50

Manufacturer: ASP · Material: Steel · Surface: hardened & ground · Number of teeth: 19 pcs · Number of teeth: 94 pcs · Toothing type: straight toothed · Area of application: Racing · Area of application: Tuning

ASP clutch conversion kit "woven" 2-jaw Aramid | Puch E50

Manufacturer: ASP · Material: Steel · Material addition: Aramid (colloquially known as Kevlar) · Number of jaws: 2 pcs · Thickness: 12 mm · Number of springs: 4 pcs · Area of application: Racing · Area of application: Tuning

ASP plain bearing clutch basket | Puch E50

Nominal diameter inside: 15 mm · Manufacturer: ASP · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 21.8 mm · Puch OEM number: 349.1.12.011.1 · Puch OEM number: 349.2.12.011.1

swiing® ingenious clutch springs reinforced (+20%) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Ø outside: 8.3 mm · Manufacturer: swiing® ingenious parts · Total length: 28 mm · Area of application: Tuning · Material: Spring steel · Surface: coated · Color: blue · Ø inside: 4.8 mm · Number of components: 3 pcs

Pedestal bearing shell | Puch

Width: 46 mm · Height: 20 mm · Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Total length: 70 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Hole spacing: 41 mm

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Number of teeth: 15 pcs · Recording type: Interlocking · Total thickness: 4.6 mm

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes

swiing® revival screw set engine galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

swiing® revival stud bolt set M6 x 106 | Puch

Manufacturer: swiing® revival parts · Diameter: 5.9 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Drive: External hexagon · Width across flats: 10 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

Shaft seal NBR 16/25/7 A Kickstarter | Puch E50

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Width: 7 mm · Material: NBR · Ø inside: 16 mm · Ø outside: 25 mm

Leonelli 12V voltage regulator (1A quality)

Manufacturer: Leonelli · Width: 27 mm · Height: 15 mm · Total length: 50 mm · Material: Aluminum · Material: Plastic · Type of current: Alternating current (AC) · Performance: 100 W · Mounting type: Screws · Tension: 12 V · Ø mounting hole: 6 mm

Gearbox cover (kickstarter) | Puch Maxi

Material: Aluminum · Number of fixing points: 5 pcs

swiing® ingenious crankshaft "High End" C3/4 & FPM (+1 mm stroke) | Puch E50

Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Material: Steel · Area of application: High End · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Ø Connecting rod eye: 15 mm · Thread length: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs
