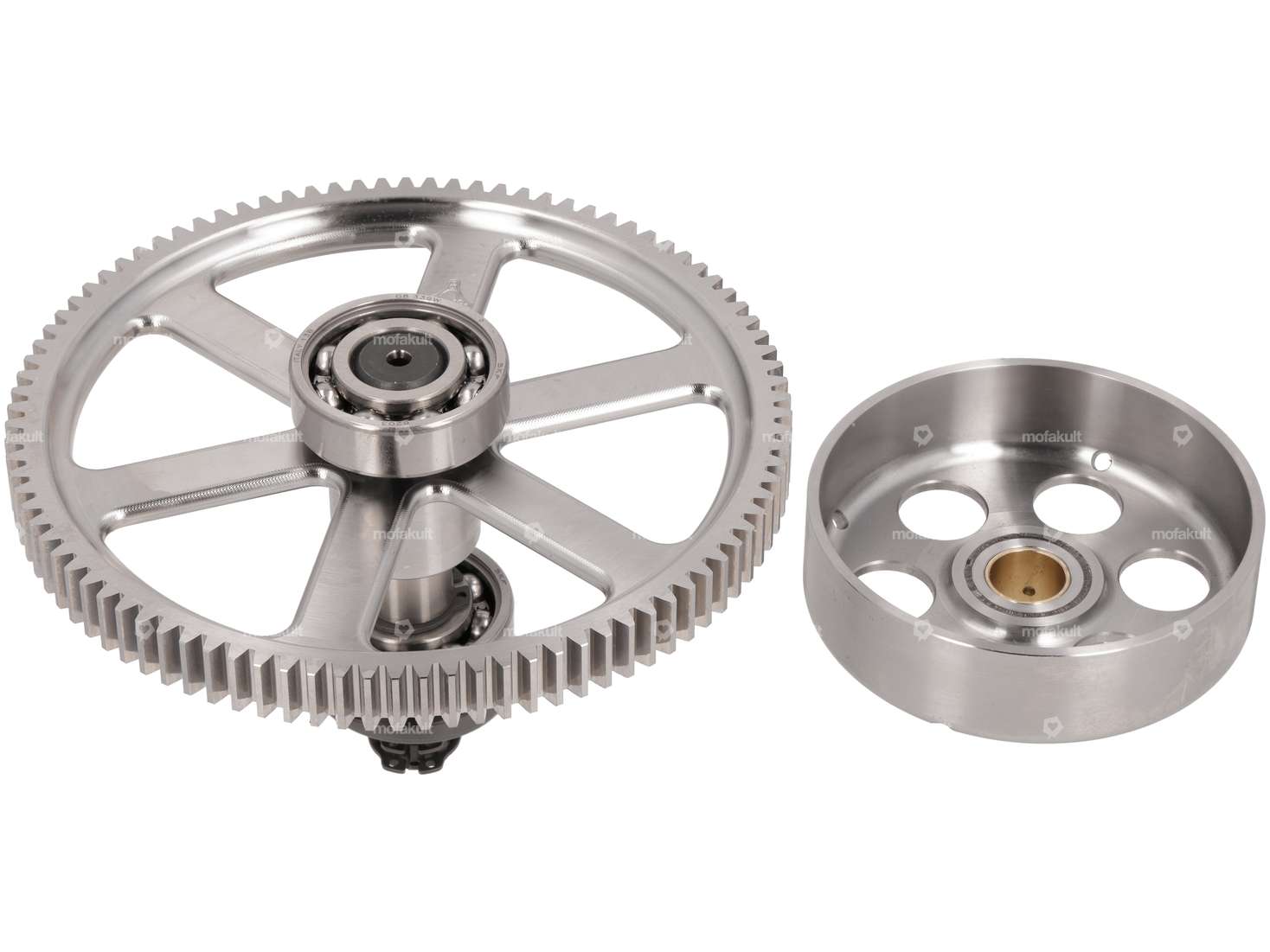

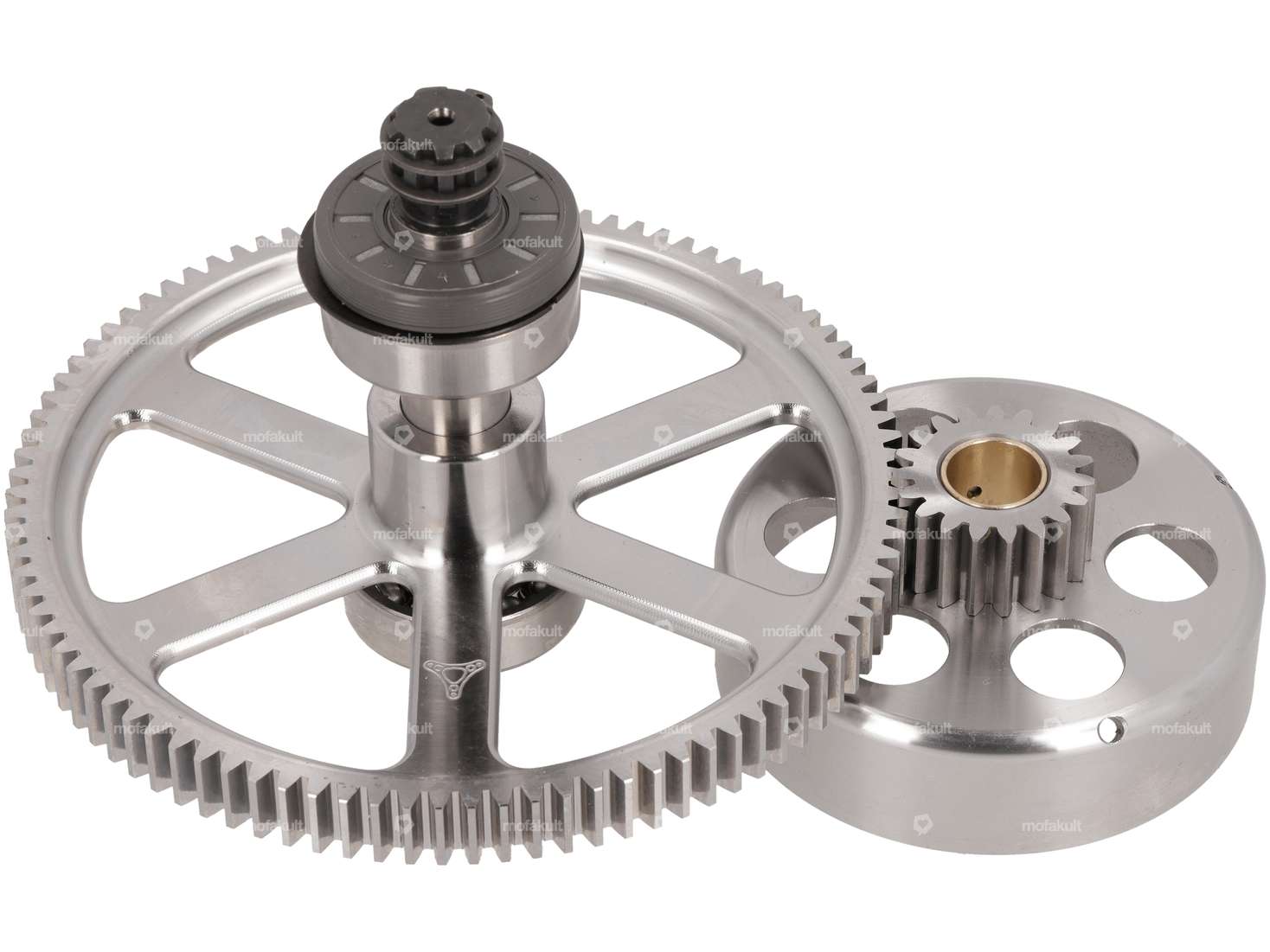

High-quality clutch basket with spur gear suitable for your Puch moped / moped with E50 3- and 4-bearing engine and KTM SX50 clutch
.This set contains CNC-machined parts made of hardened steel, which have been specially designed for high loads. The straight-toothed gear wheel made of special steel impresses thanks to the finely ground teeth for optimum running smoothness and very low wear.
The small gear wheel attached to the clutch basket is firmly welded to the clutch basket and thus offers the optimum conditions for both an original setup and a tuning setup.
| Manufacturer | ASP |
| Material | Steel |
| Surface | hardened & ground |
| Toothing type | straight toothed |
| Number of teeth | 19 pcs, 94 pcs |
| Area of application | Tuning, Racing |
| Puch | E50 |
Accessories & related products
MBR Clutch KTM SX50 | Puch E50
Manufacturer: MBR · Material: Steel · Material addition: Aluminum · Recording type: Cone mounting · Number of jaws: 3 pcs · Number of springs: 3 pcs · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning
395,10 EUR
Moped fans also bought
Tank sticker "PUCH maxi S" 204 x 29 mm | Puch Maxi S
Place of use: Tank (+ frame) · Material: Polyvinyl chloride (PVC) · Color: Chrome · Color: black · Color: green · Color: white · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Width: 204 mm · Border: Chrome surround · Height: 29 mm · Puch OEM number: 349.2.20.537.0
9,90 EUR
GPO tail light ULO | Puch Maxi N, S old version
Manufacturer: GPO · Material: Plastic · Test mark: none · Bulb holder: BA15s · Color: black · Color: red · Tension: 6 V · Ø Receptacle: 4 mm · Height: 110 mm · Depth: 80 mm · Battery operated: No · Number of fixing points: 2 pcs · Brake light: No · Reflectors: Yes · Width: 60 mm · Mounting type: Nuts & bolts
42,40 EUR
swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH
Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Surface: blank · Bearing type: Plain bearing · Total length: 19 mm · Ø inside: 16.2 mm · Ø Bundle: 24.1 mm · Ø outside: 20.2 mm · Puch OEM number: 349.1.42.005.1
2,90 EUR

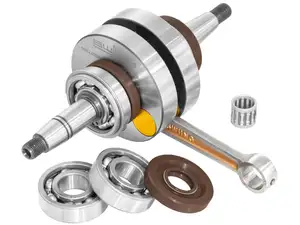

swiing® ingenious crankshaft "High End" C3/4 & FPM (+1 mm stroke) | Puch E50
